Chevy Truck
>>
2005
>>
Astro Van 2WD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>
Window Switch
Window Switch
Window Switch - Front Passenger C1:

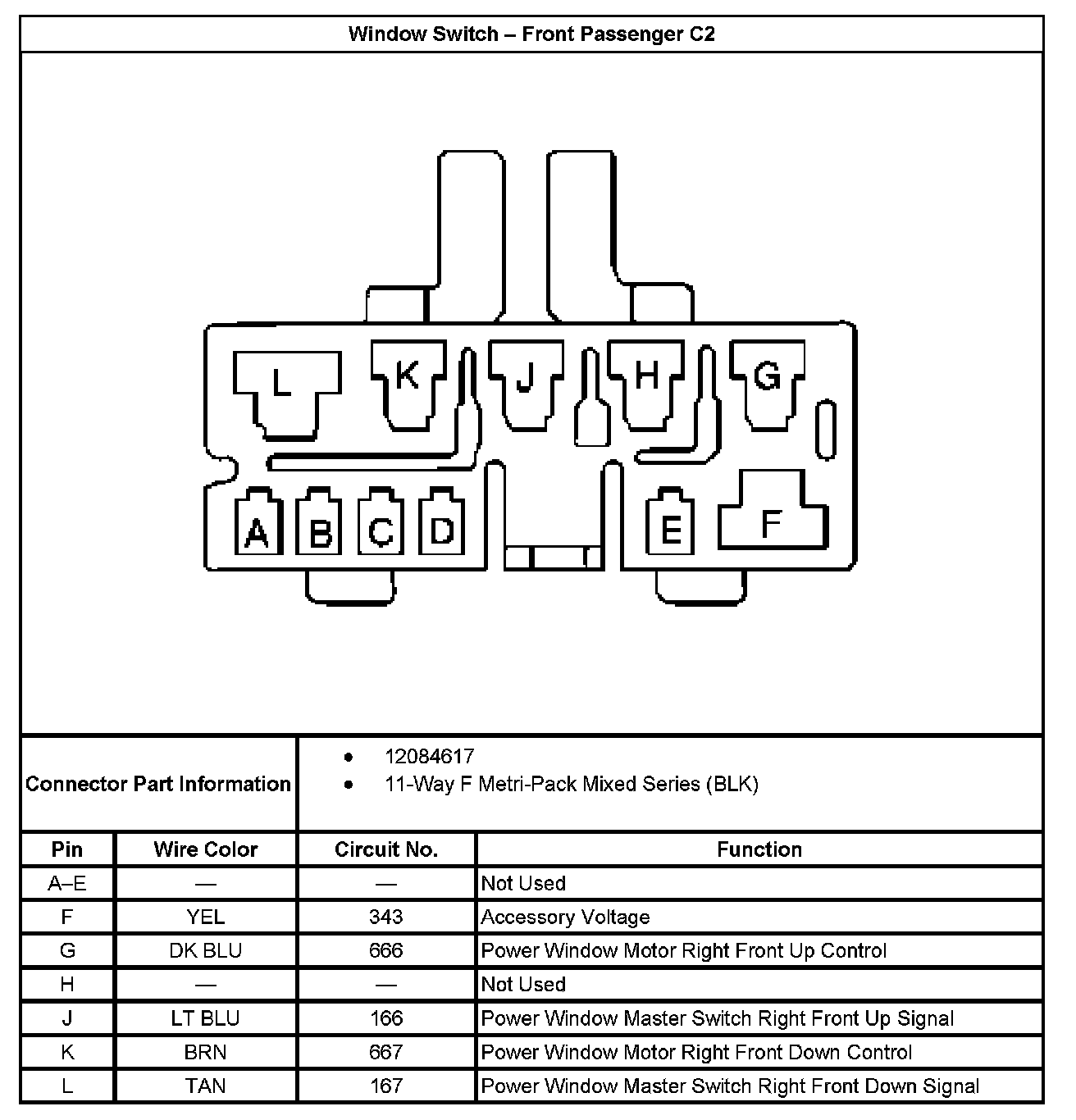

Window Switch - Front Passenger C2:
