Chevy Truck
>>
2005
>>
Astro Van 2WD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Diagrams
>>
Connector Views
Connector Views

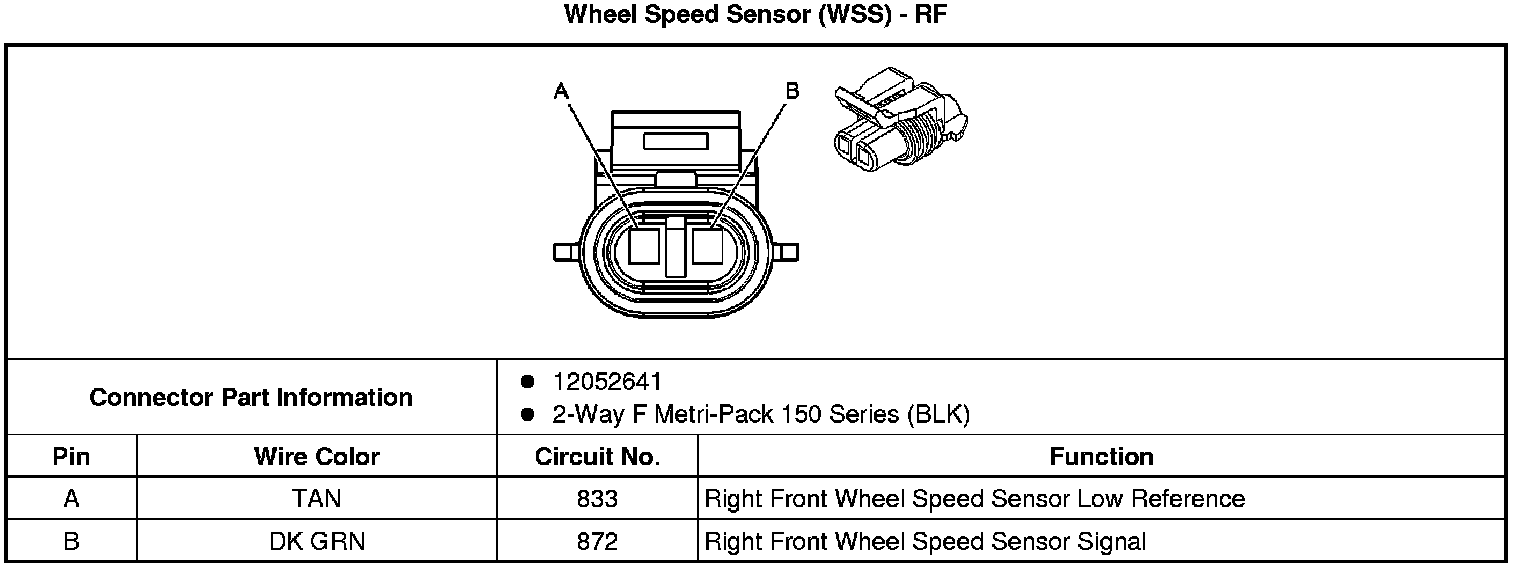

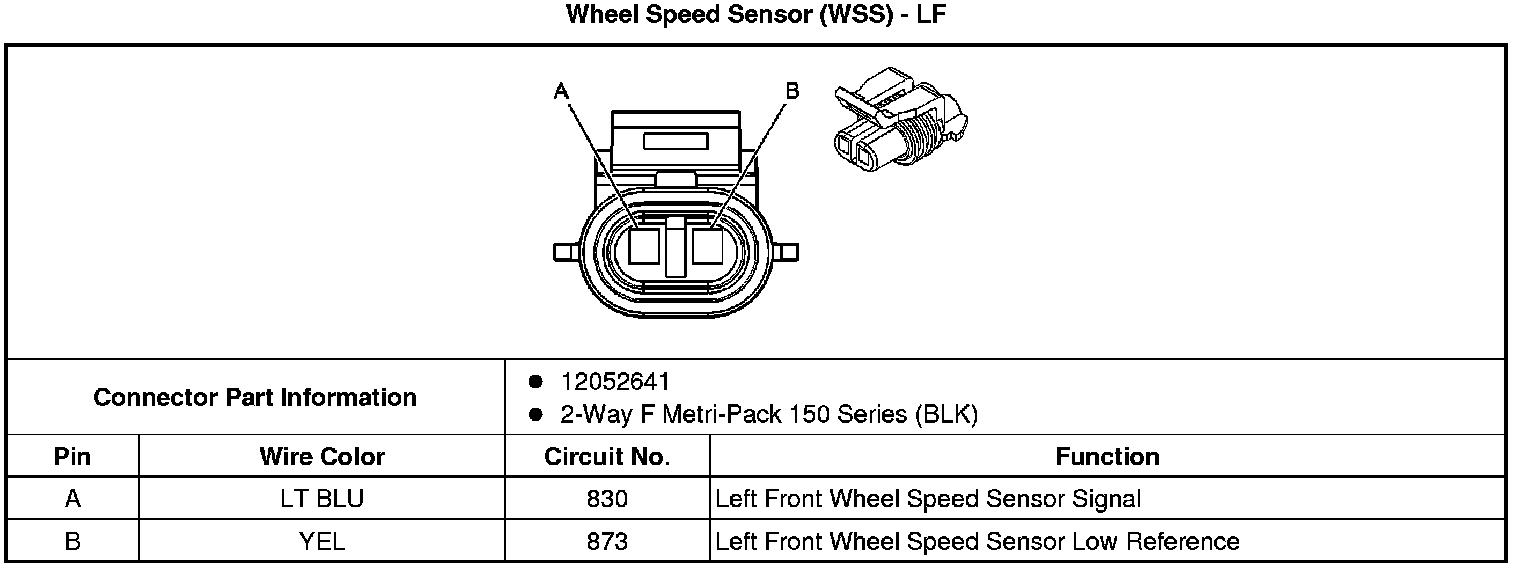

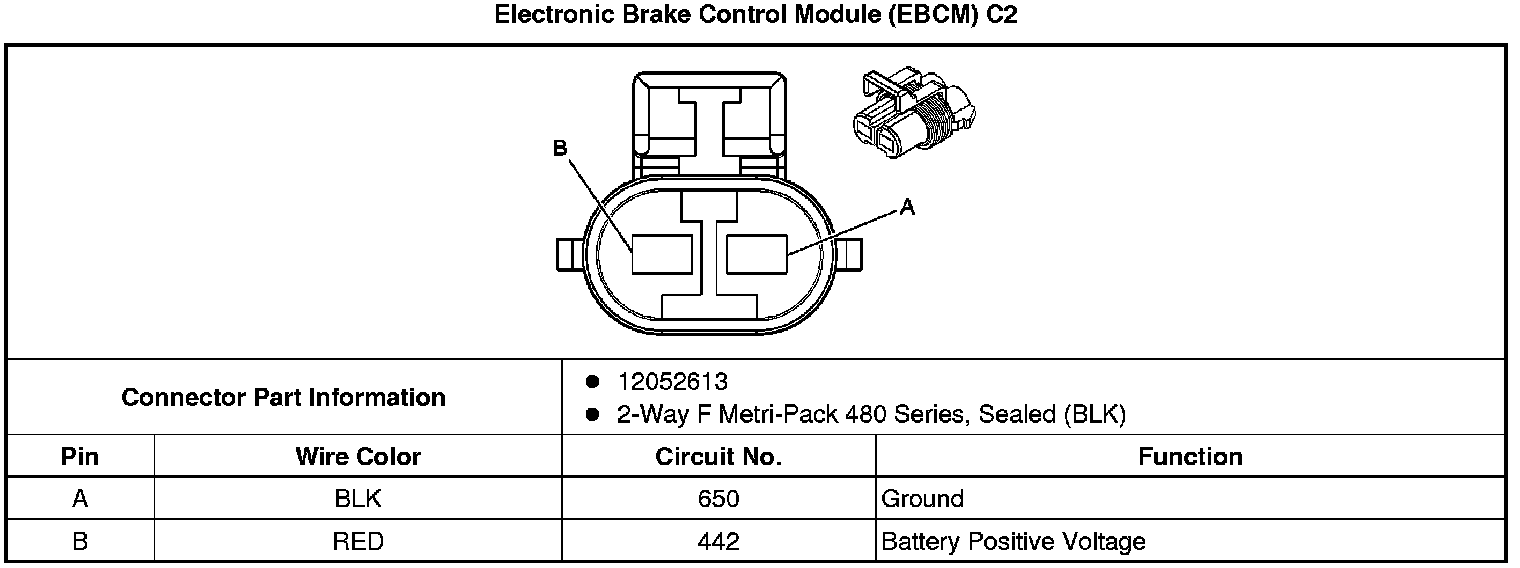

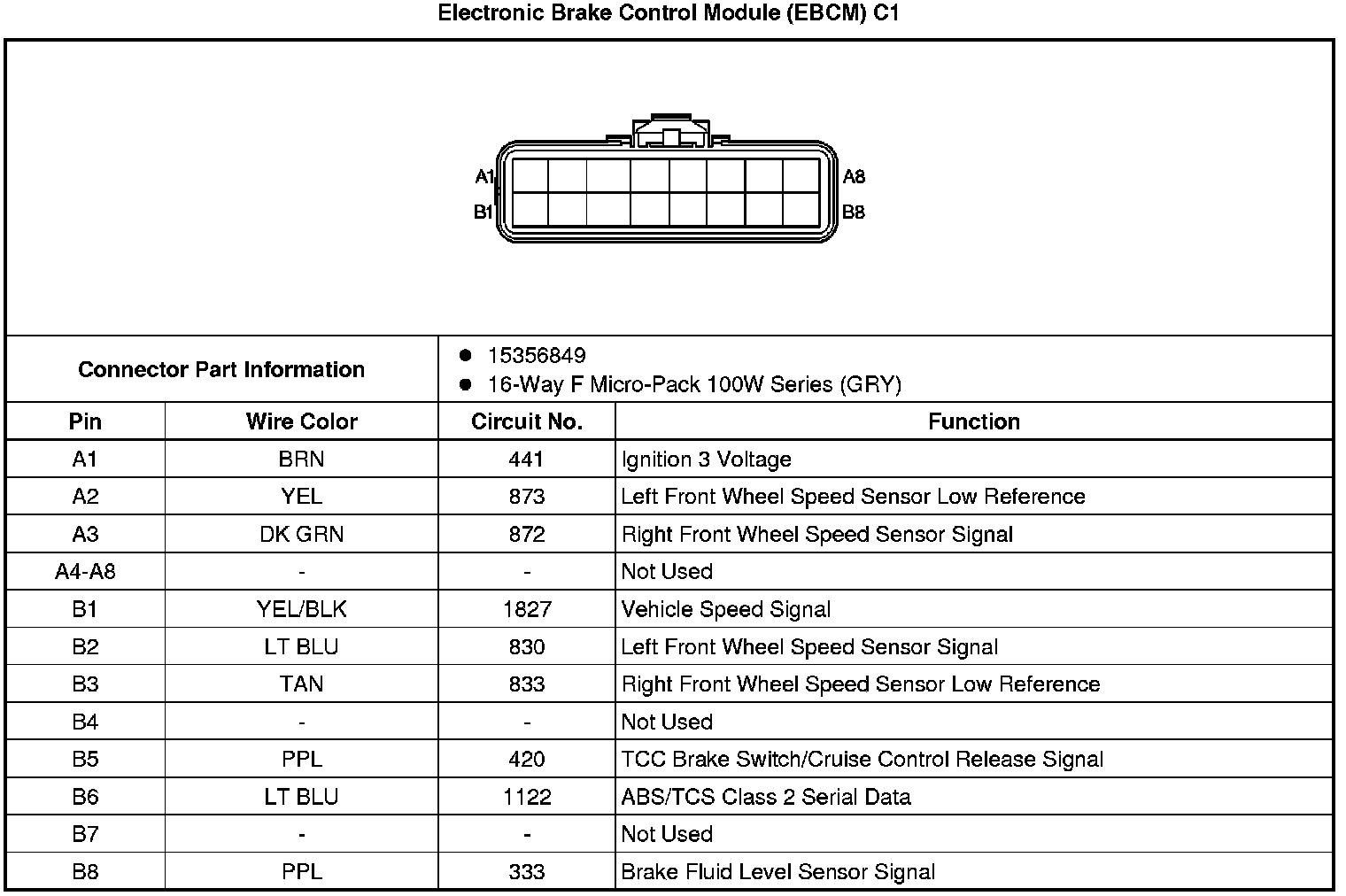

ABS Connector End Views
