Washer Nozzle Replacement - Rear

WASHER NOZZLE REPLACEMENT - REAR

REMOVAL PROCEDURE

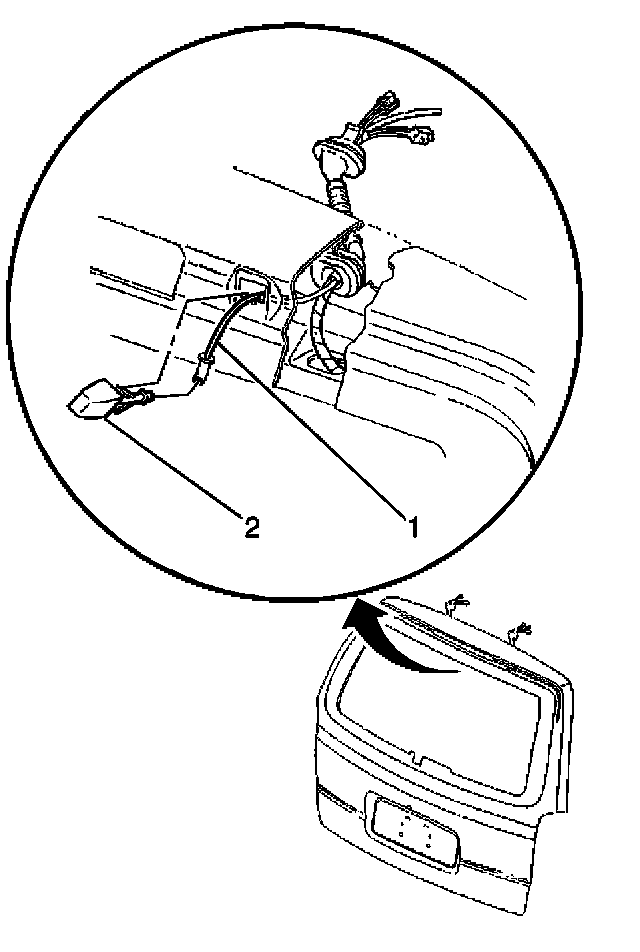

1. Using a small flat-bladed tool, Remove the rear washer nozzle (2) from the liftgate.
2. Remove the rear washer nozzle (1) from the rear washer hose (2).

INSTALLATION PROCEDURE

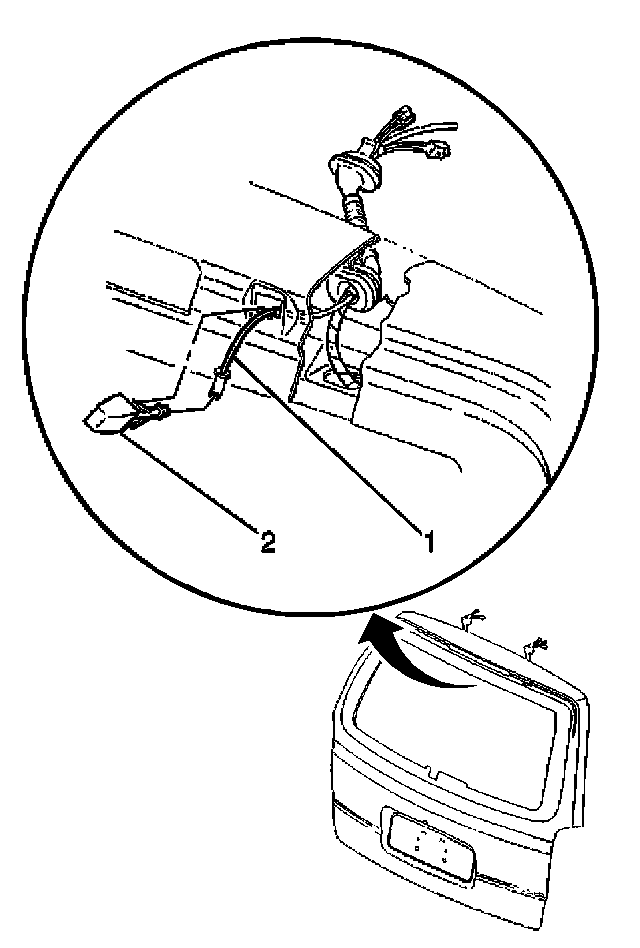

1. Install the washer nozzle (1) to the rear washer hose (2).
2. Position the rear washer nozzle (2) to the liftgate opening, pressing in until fully seated
