Power Steering Pulley Replacement

Power Steering Pulley Replacement

Tools Required
^ J 37609-A Power Steering Pump Pulley Remover
^ J 25033-C Pulley Installer

Removal Procedure
1. Remove the drive belt.
2. Remove the power steering hoses from the power steering hose retainers.

Important: Do NOT disconnect the power steering hoses from the power steering pump.

3. Remove the power steering pump from the engine for clearance.






4. Use J 37609-A in order to remove the pump pulley.

Installation Procedure

Important:
^ Ensure that the face of the pulley hub is flush with the end of the pump shaft.
^ Do not use the arbor press to install the pulley.

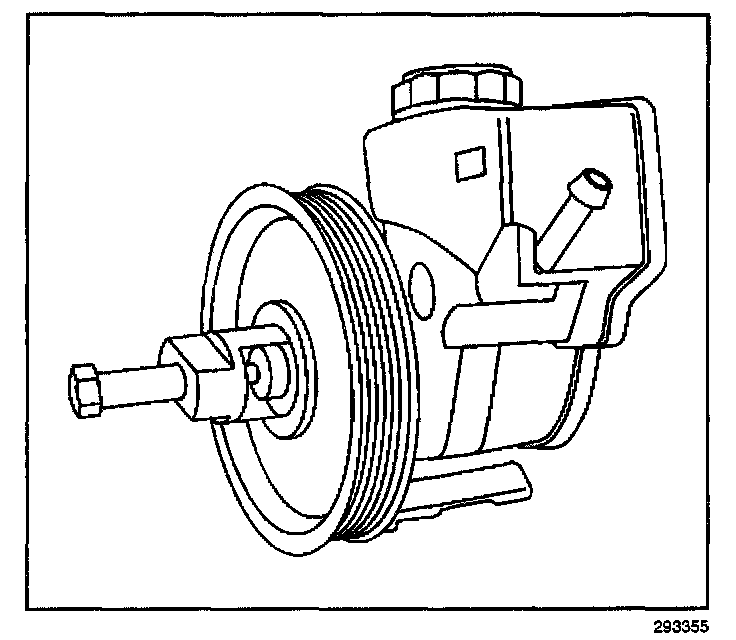

1. Use J 25033-C in order to install the power steering pump pulley.
2. Install the power steering pump to the engine.
3. Install the drive belt.
4. Bleed the power steering system if the pump was removed. Refer to Bleeding the Power Steering System. Bleeding the Power Steering System
5. Inspect the system for leaks.
