Home
>>
Chevy Truck
>>
2004
>>
Venture AWD V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Power Distribution Diagram 15
Power Distribution Diagram 15

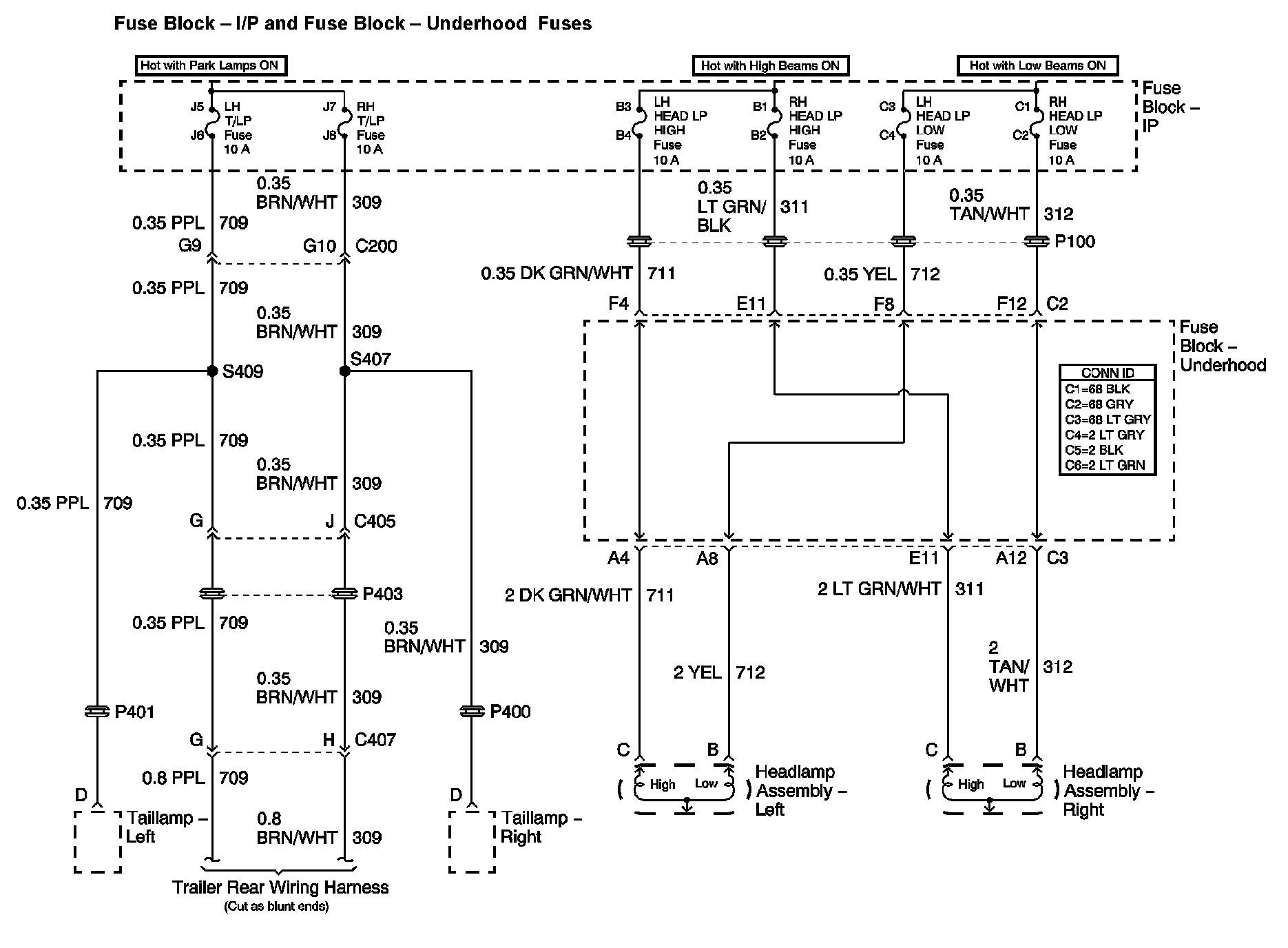

Power Distribution Diagram 15:
Previous Diagram
Power Distribution Diagram 14
