Center Rear (50/50 Split Bench)

SEAT BELT REPLACEMENT - CENTER REAR (50/50 SPLIT BENCH)

REMOVAL PROCEDURE
1. Remove the rear seat.
2. Remove recliner trim cover.
3. Remove the rear seat riser.

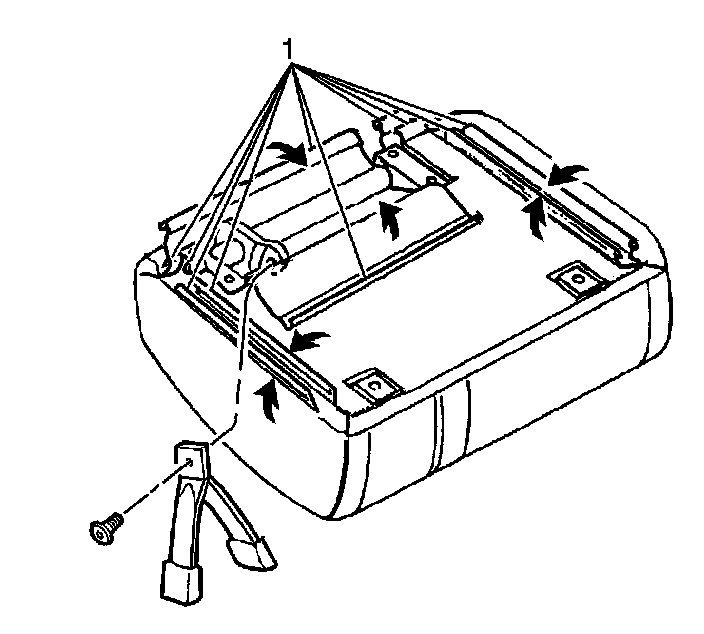

4. Remove the seat cushion cover retainers (1) from the bottom of the seat frame.
5. Remove the bolts securing the center buckle belts from the seat cushion frame.
6. Remove the center buckle belts from the seat.

INSTALLATION PROCEDURE




1. Install the center buckle belts to the seat.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the bolts securing the center buckle belts to the seat cushion frame.

Tighten
Tighten the rear seat center belt bolts to 53 N.m (39 lb ft).

3. Install the seat cushion cover retainers (1) to the bottom of the seat frame.
4. Install the rear seat riser.
5. Install the recliner trim cover.
6. Install the rear seat.
