Side Impact Module Replacement - RH

INFLATABLE RESTRAINT SIDE IMPACT MODULE REPLACEMENT - RH

REMOVAL PROCEDURE

CAUTION: Following the deployment of a side impact air bag, inspect the following parts for damage. Replace these parts if necessary:
- The seat cushion frame
- The seat recliner, if equipped
- The seat adjuster
- The seat back frame
Failure to do so may cause future personal injury.




1. Disable the SIR system. Refer to SIR Disabling and Enabling Zone 9.
2. Remove the passenger front seat.
3. Remove the seat back cover.

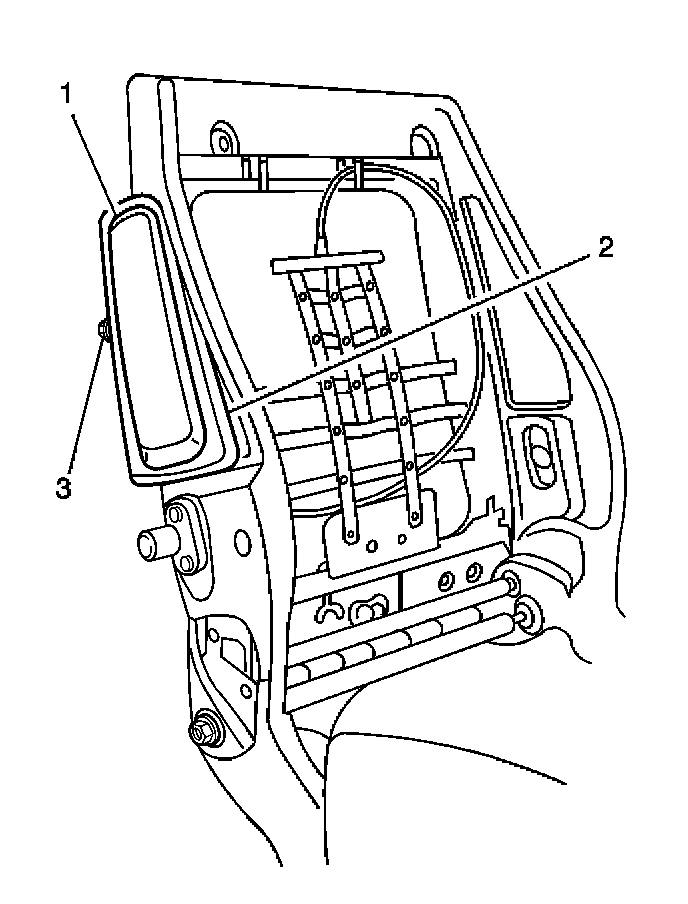

4. Using a flat head screwdriver, remove the plastic molding (2) that holds the air bag inflator module (1) to the passenger seat back frame.

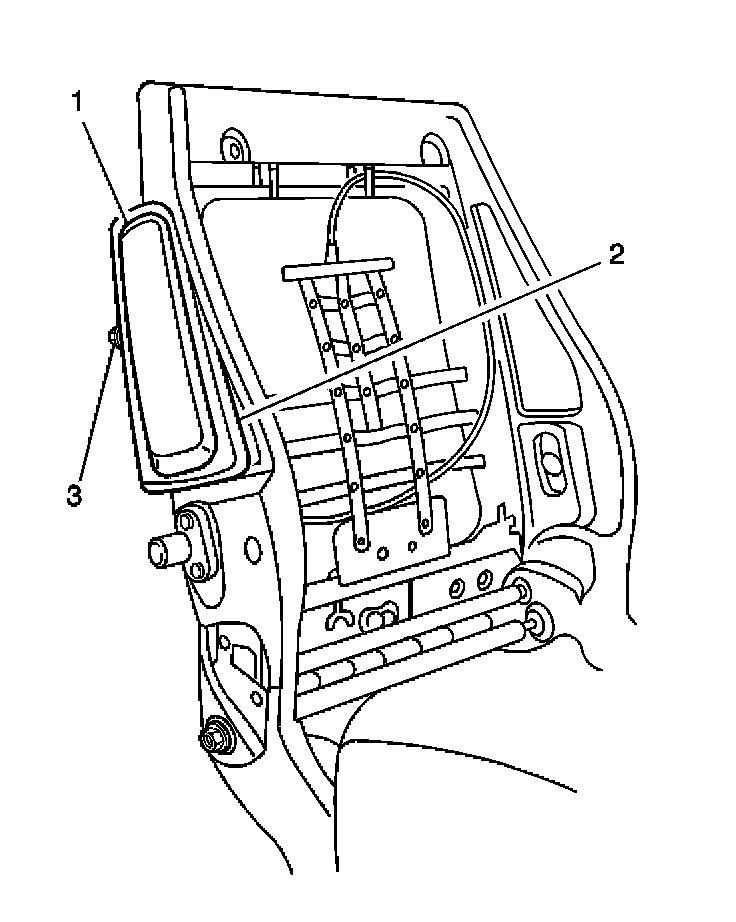

5. Note the routing of the inflator module wiring harness (2) and the retaining clip attachments within the passenger seat.
6. Remove the wiring harness retaining clips from the passenger seat frame.
7. Remove the wiring harness (2) from the passenger seat frame.
8. Remove the air bag inflator module (1) from the passenger seat back frame.
9. Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflator Module Handling and Scrapping.

INSTALLATION PROCEDURE

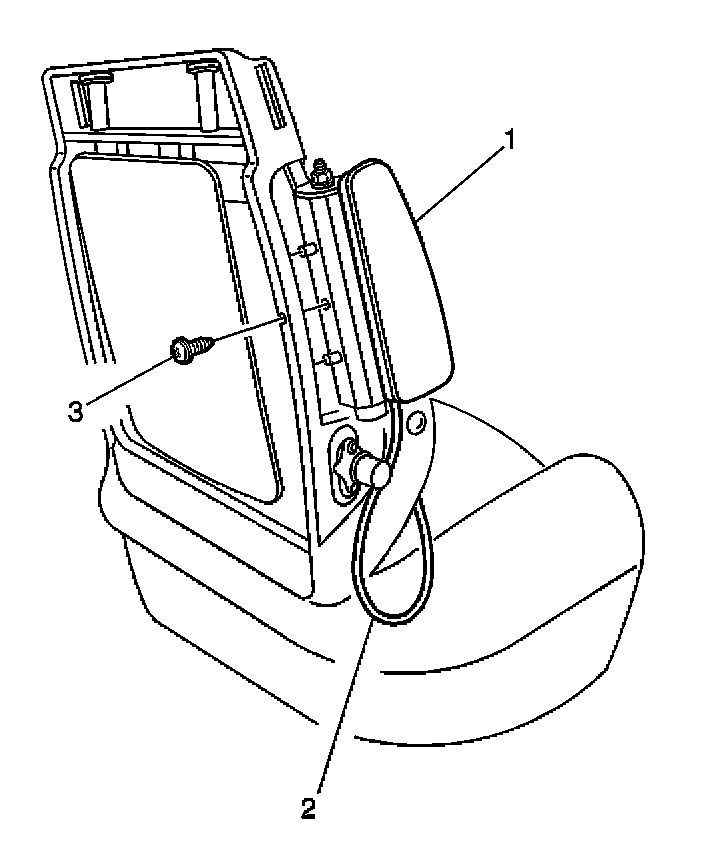

1. Install the inflator module wiring harness (2) to the passenger seat frame, while guiding the wiring harness through the appropriate spots on the passenger seat frame.
2. Install the wiring harness retaining clips to the passenger seat frame.




3. Install the plastic molding (2) that holds the air bag inflator module (1) to the passenger seat back frame.
4. Install the air bag inflator module (1) to the passenger seat back frame
5. Install the seat back cover.
6. Install the passenger front seat.
7. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 9.
