Canister Purge Solenoid: Service and Repair

EVAPORATIVE EMISSION (EVAP) CANISTER PURGE SOLENOID VALVE REPLACEMENT

REMOVAL PROCEDURE
1. Turn OFF the ignition.

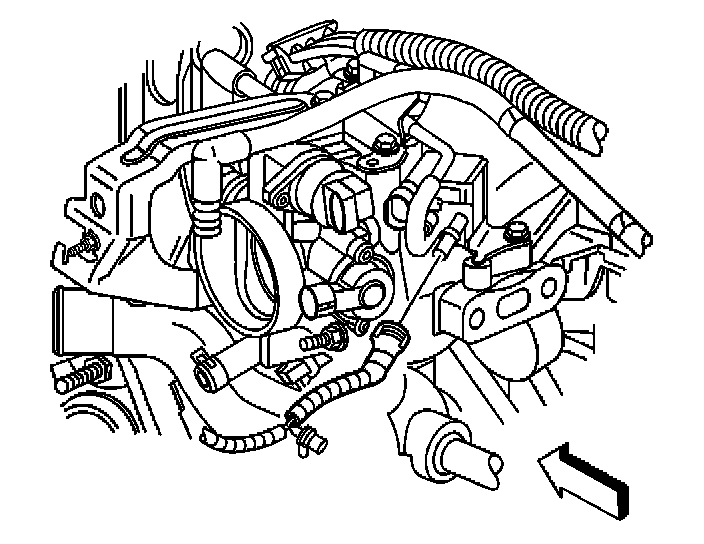

2. Disconnect the evaporative emission (EVAP) canister purge valve electrical connector.




3. Disconnect the EVAP canister purge valve pipe and vacuum supply hose.

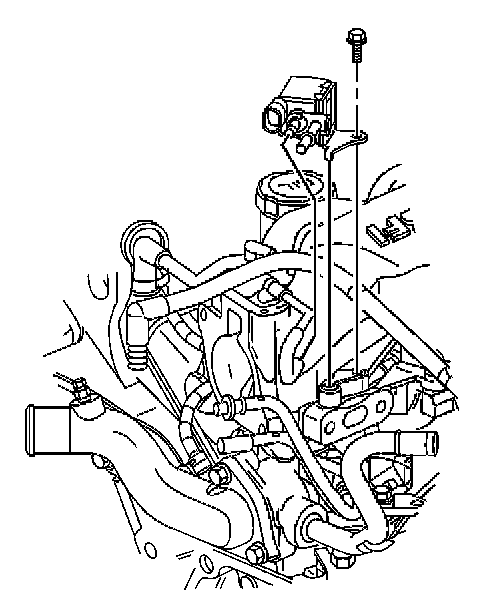

4. Remove the EVAP canister purge valve retaining bolt.
5. Remove the EVAP canister purge valve from the intake manifold.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.

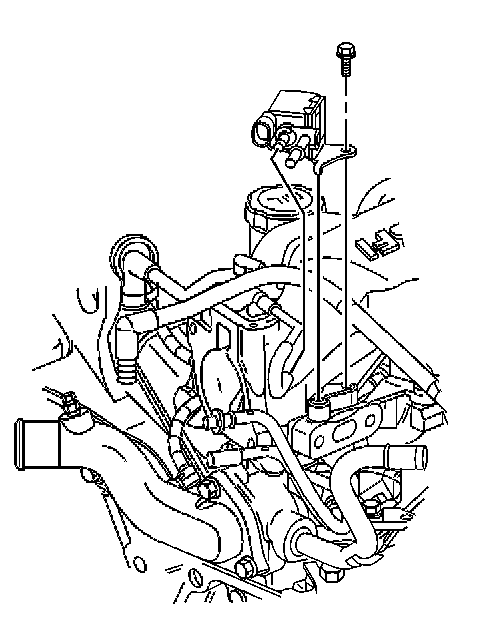

1. Position the EVAP canister purge valve on the intake manifold and install the retainer bolt.

Tighten
Tighten the EVAP canister purge valve retaining bolt to 10 N.m (89 lb in).




2. Connect the EVAP canister purge pipe and the vacuum supply hose.
3. Connect the EVAP canister purge valve electrical connector.
