Home
>>
Chevy Truck
>>
2004
>>
Venture AWD V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Diagrams
>>
Connector Views
Connector Views

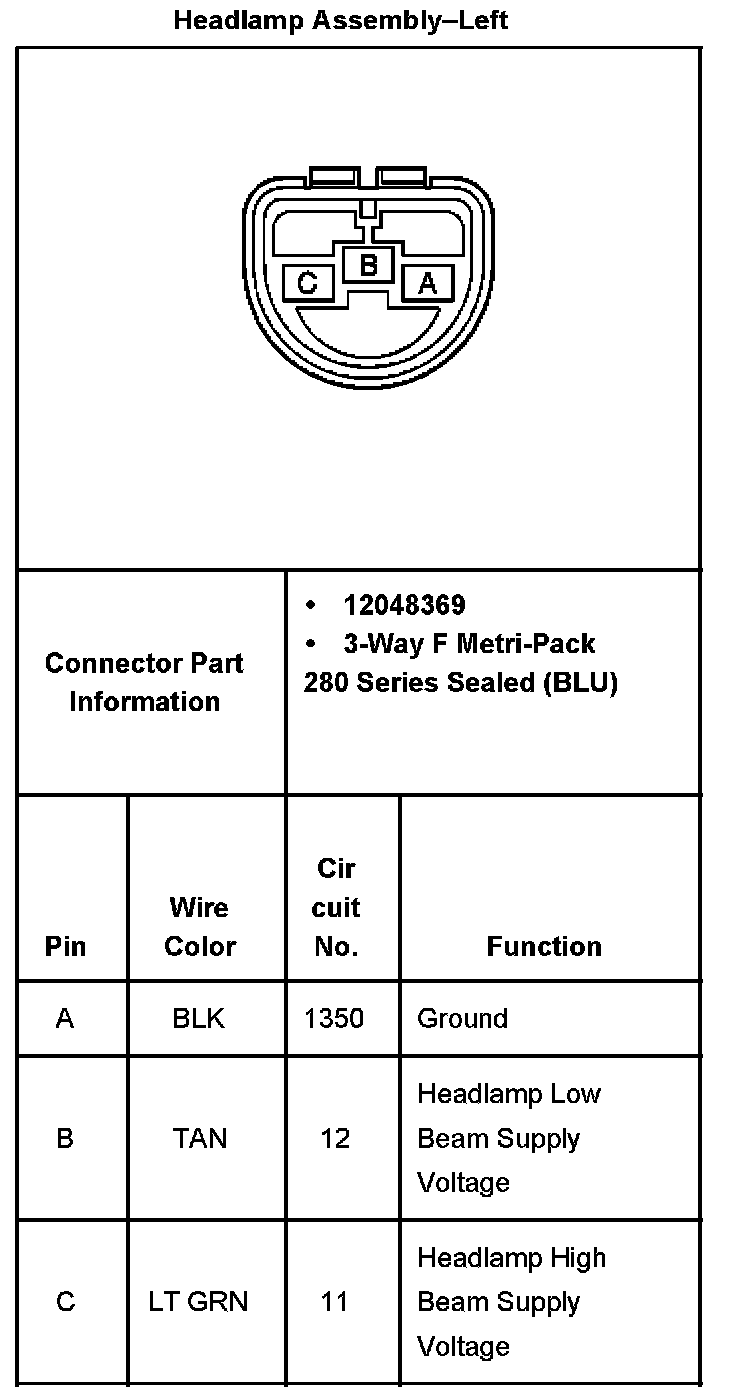

Headlamp Assembly-Left:

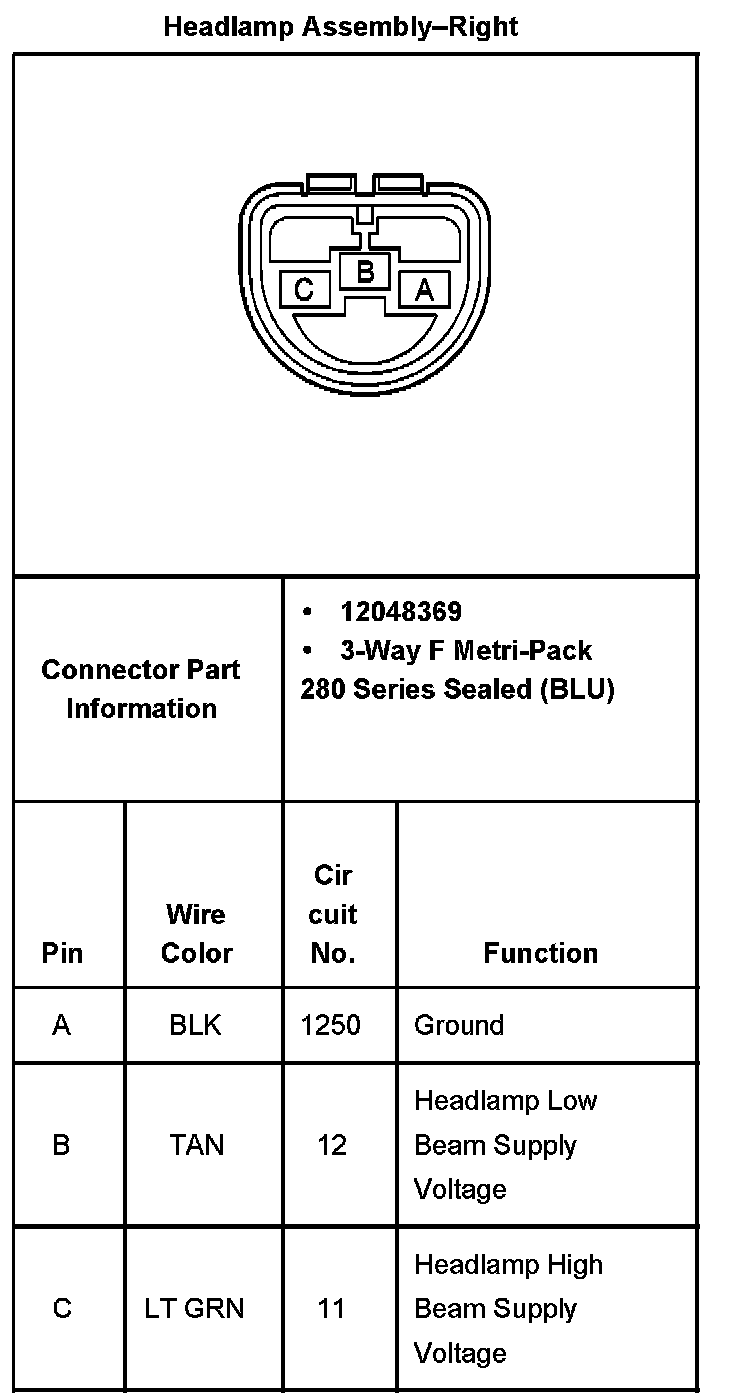

Headlamp Assembly-Right:
