Dome Lamp Bulb: Service and Repair

DOME LAMP BULB REPLACEMENT

REMOVAL PROCEDURE

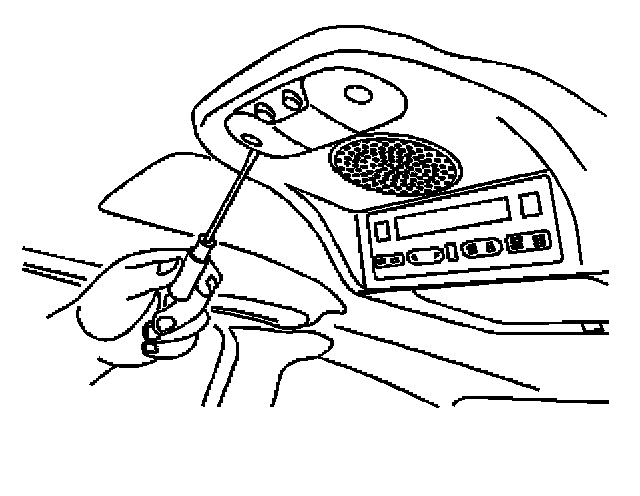

1. Use a small flat-bladed tool, remove the dome lens cover by prying the left side of the cover loose.

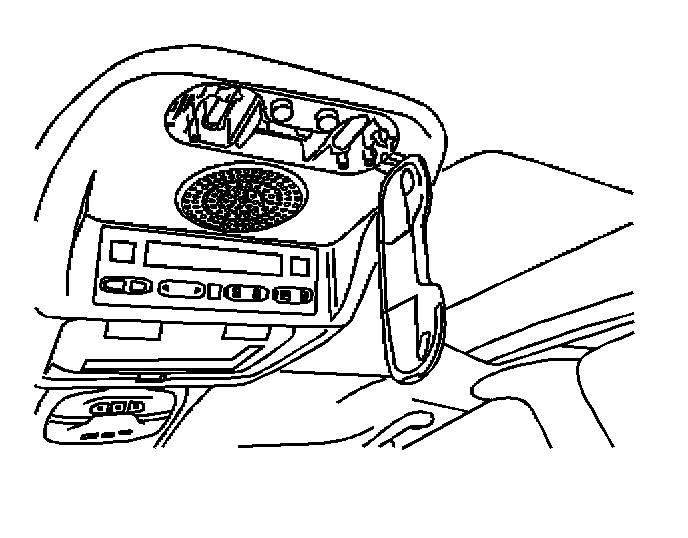

2. Remove the lens cover.

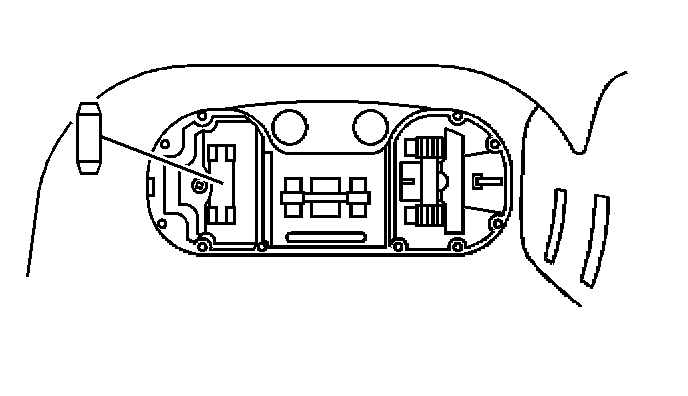

3. Remove the dome light bulb.

INSTALLATION PROCEDURE




1. Install the dome light bulb.

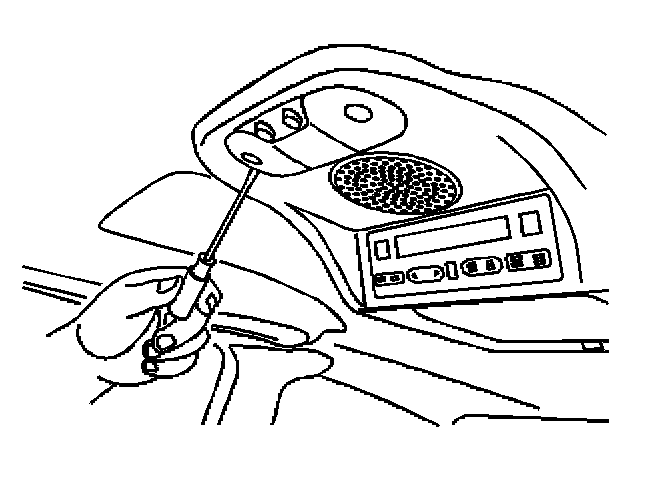

2. Install the dome light lens cover.
