Deflector Replacement - Instrument Panel Air
DEFLECTOR REPLACEMENT - INSTRUMENT PANEL AIRREMOVAL PROCEDURE
1. Use a small, flat-bladed tool to depress the retainers.
2. Remove the deflector housing from the I/P outer air outlet.
INSTALLATION PROCEDURE

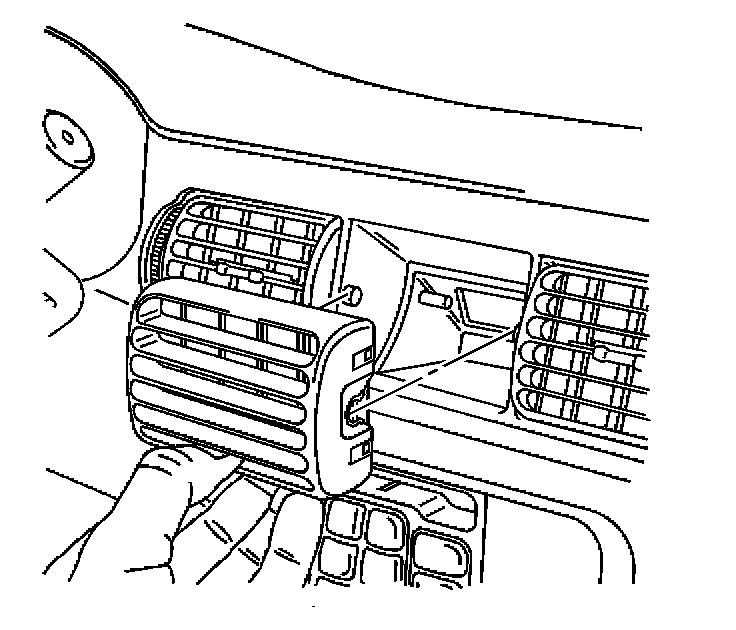

1. Align the deflector to the pivot points in the I/P cluster trim plate.
2. Press in from the front side of the trim plate to install the deflector.
