Instrument Panel (I/P)

INSTRUMENT PANEL (I/P) AIR OUTLET DUCTS REPLACEMENT

REMOVAL PROCEDURE

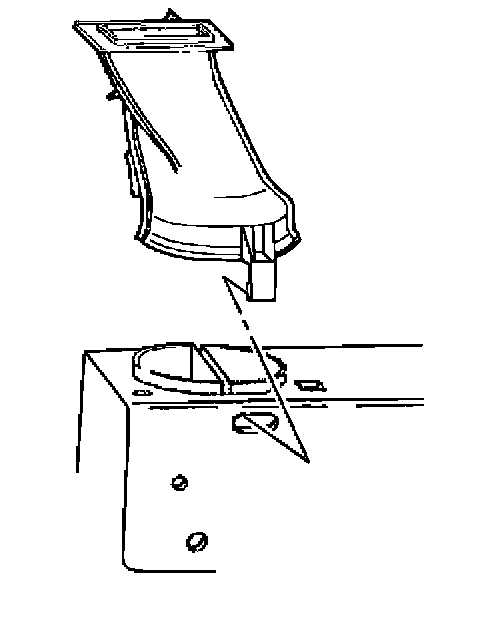

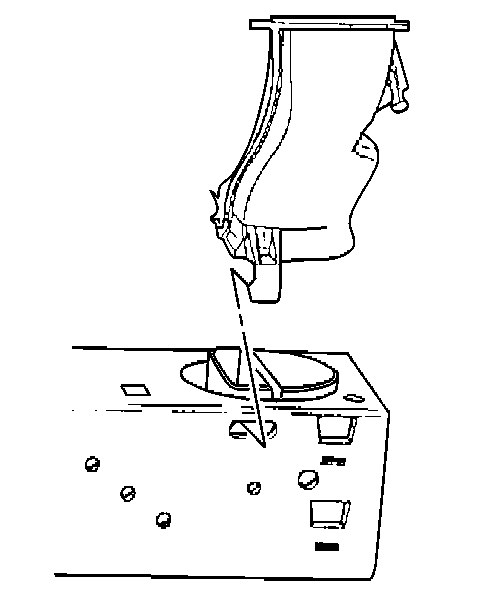

1. Remove the I/P assembly.







2. Lift up on the retaining tab and rotate the air distribution extension duct.







3. Remove the air distribution extension duct from the I/P carrier.



INSTALLATION PROCEDURE

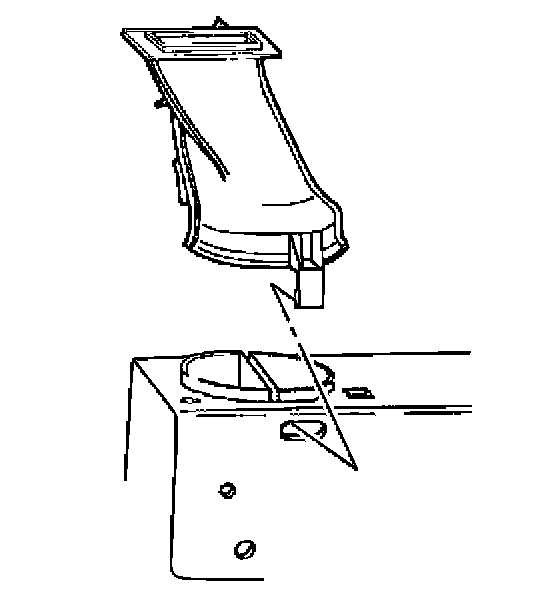

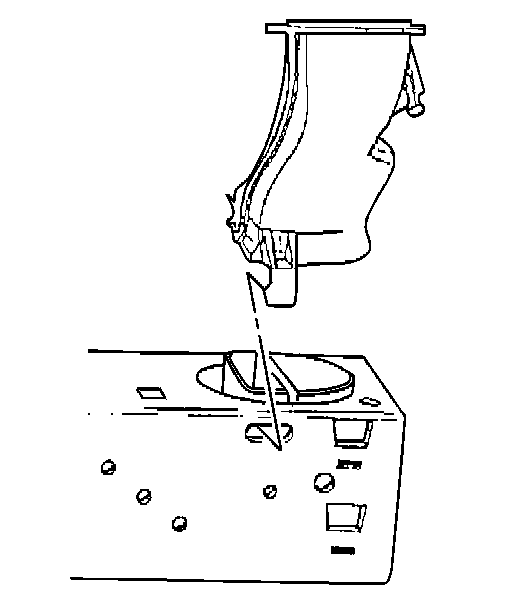

1. Align the tabs of the air distribution extension duct with the slots in the I/P carrier.







2. Rotate the air distribution extension duct to secure the retaining tab to the I/P carrier.
3. Install the I/P assembly.
