Home
>>
Chevy Truck
>>
2004
>>
Venture AWD V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Suspension Control ( Automatic - Electronic )
>>
System Diagram
>>

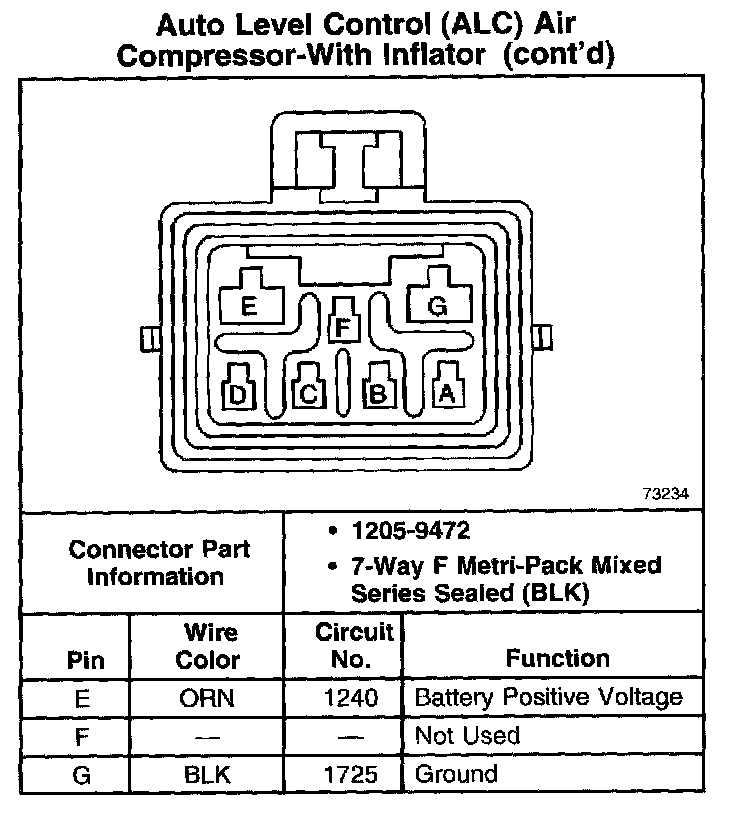

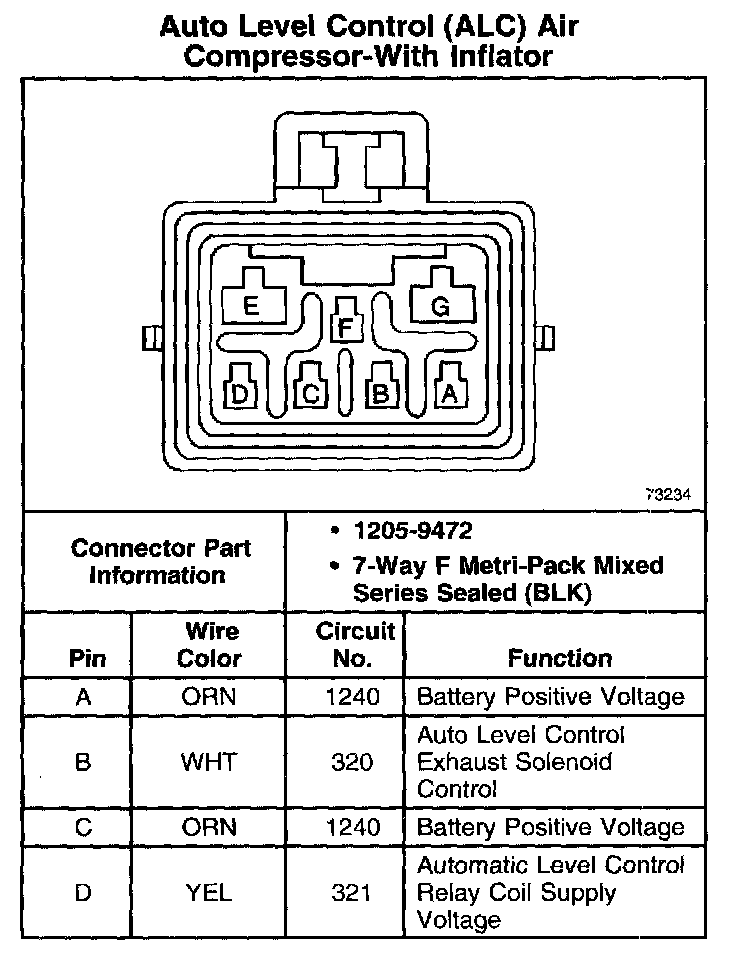

Auto Level Control (ALC) Air Compressor-With Inflator
Auto Level Control (ALC) Air Compressor-With Inflator
