Chevy Truck
>>
2004
>>
Venture AWD V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Trunk / Liftgate Lock Actuator
Power Trunk / Liftgate Lock Actuator

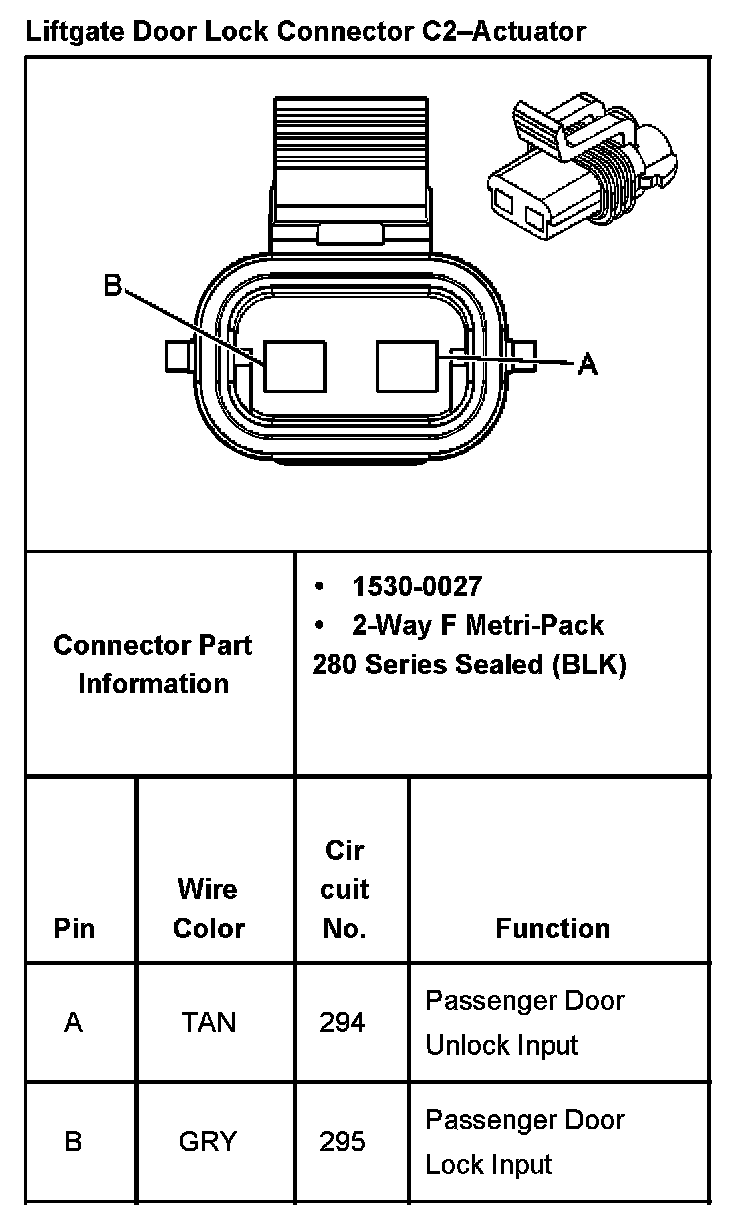

Liftgate Door Lock Connector C2 - Actuator:
