C304

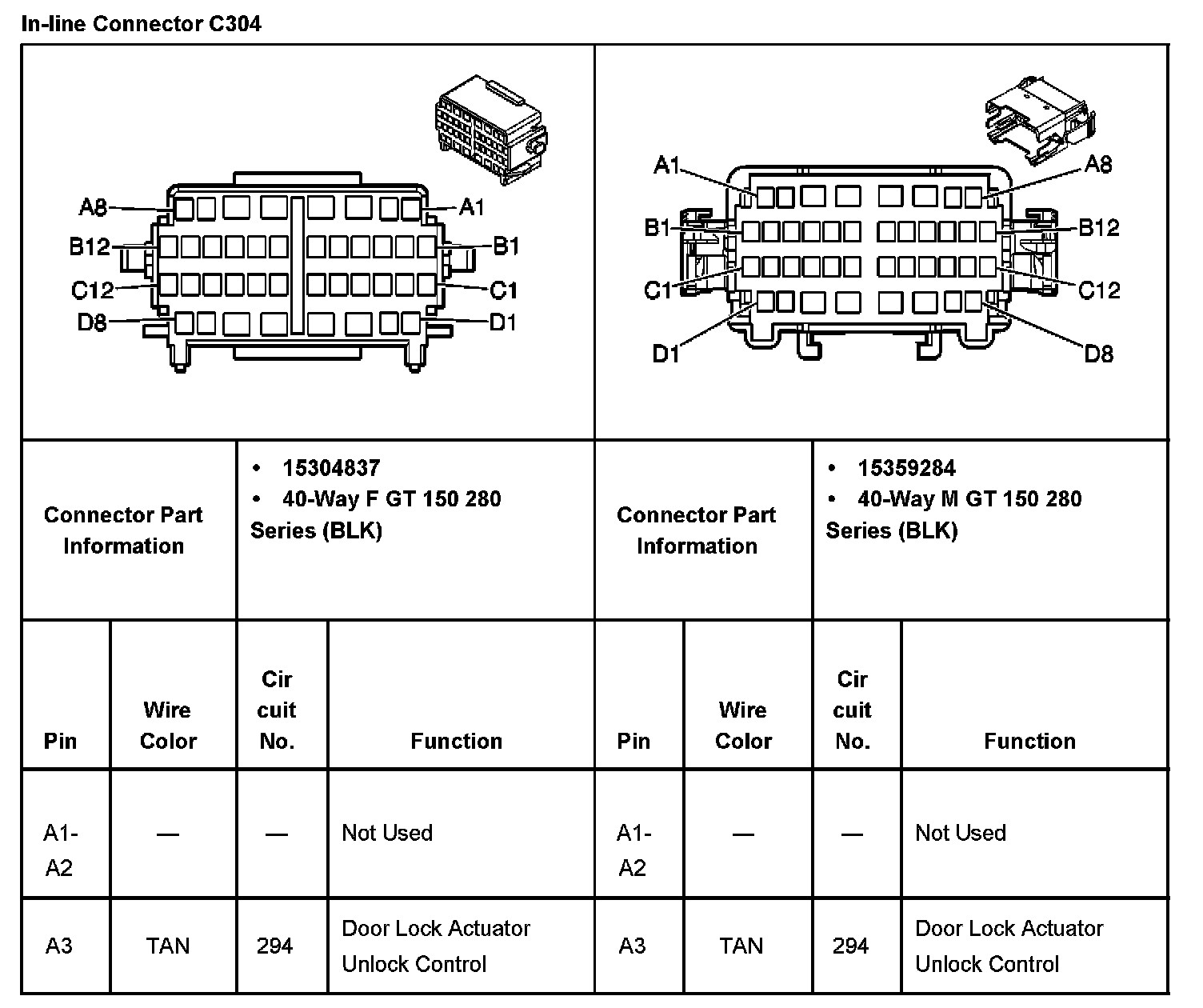

In-line Connector C304 Part 1:

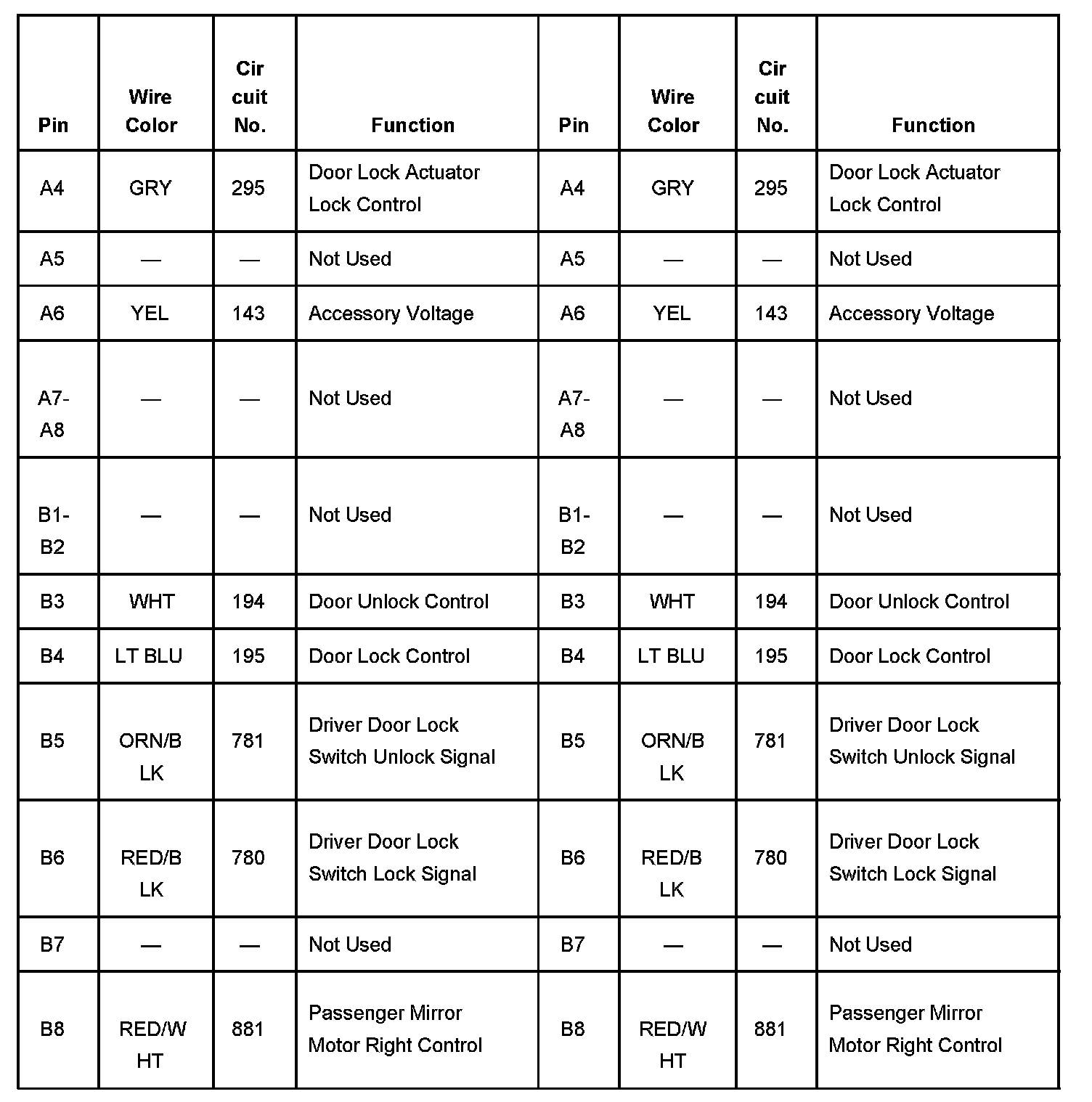

In-line Connector C304 Part 2:

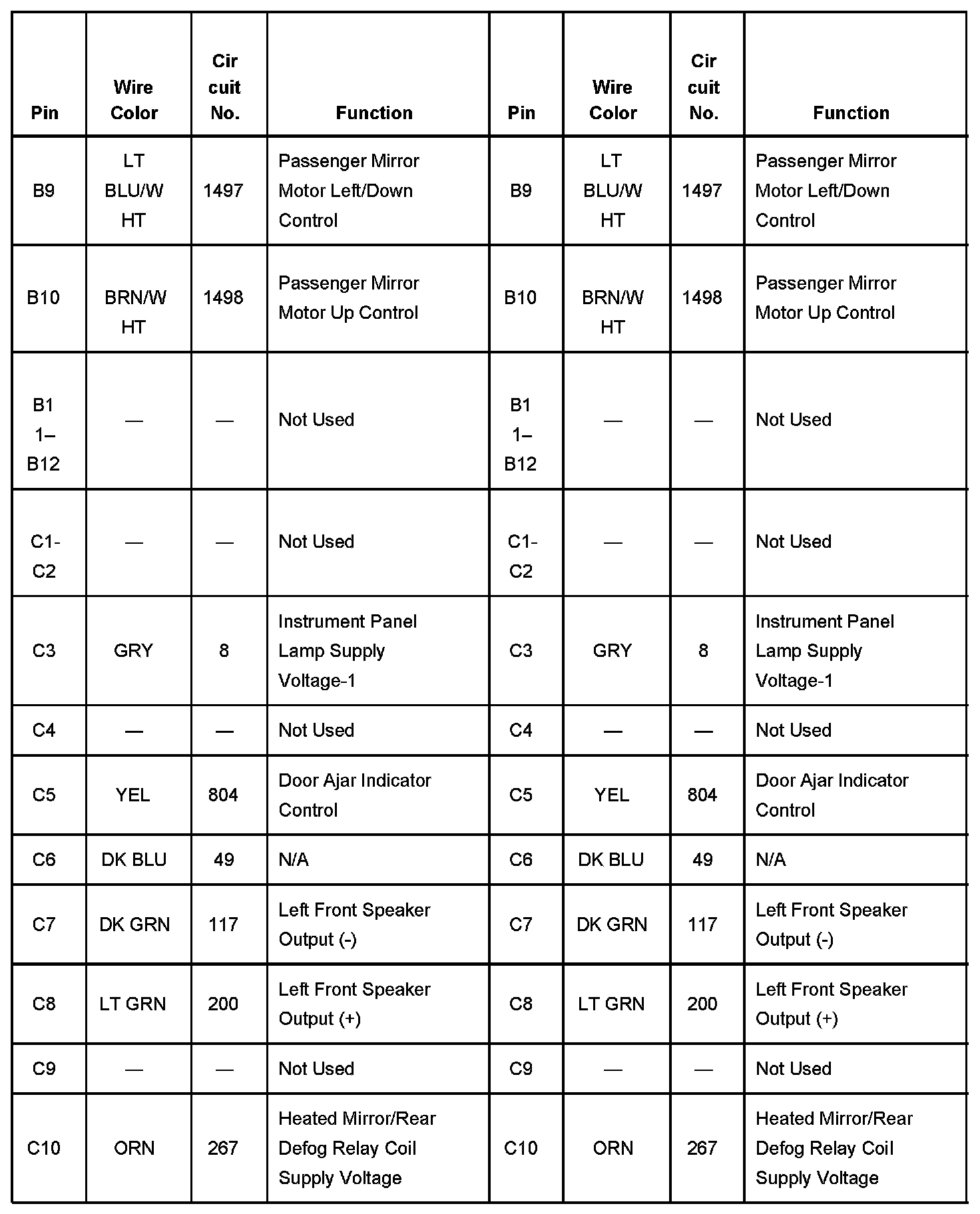

In-line Connector C304 Part 3:

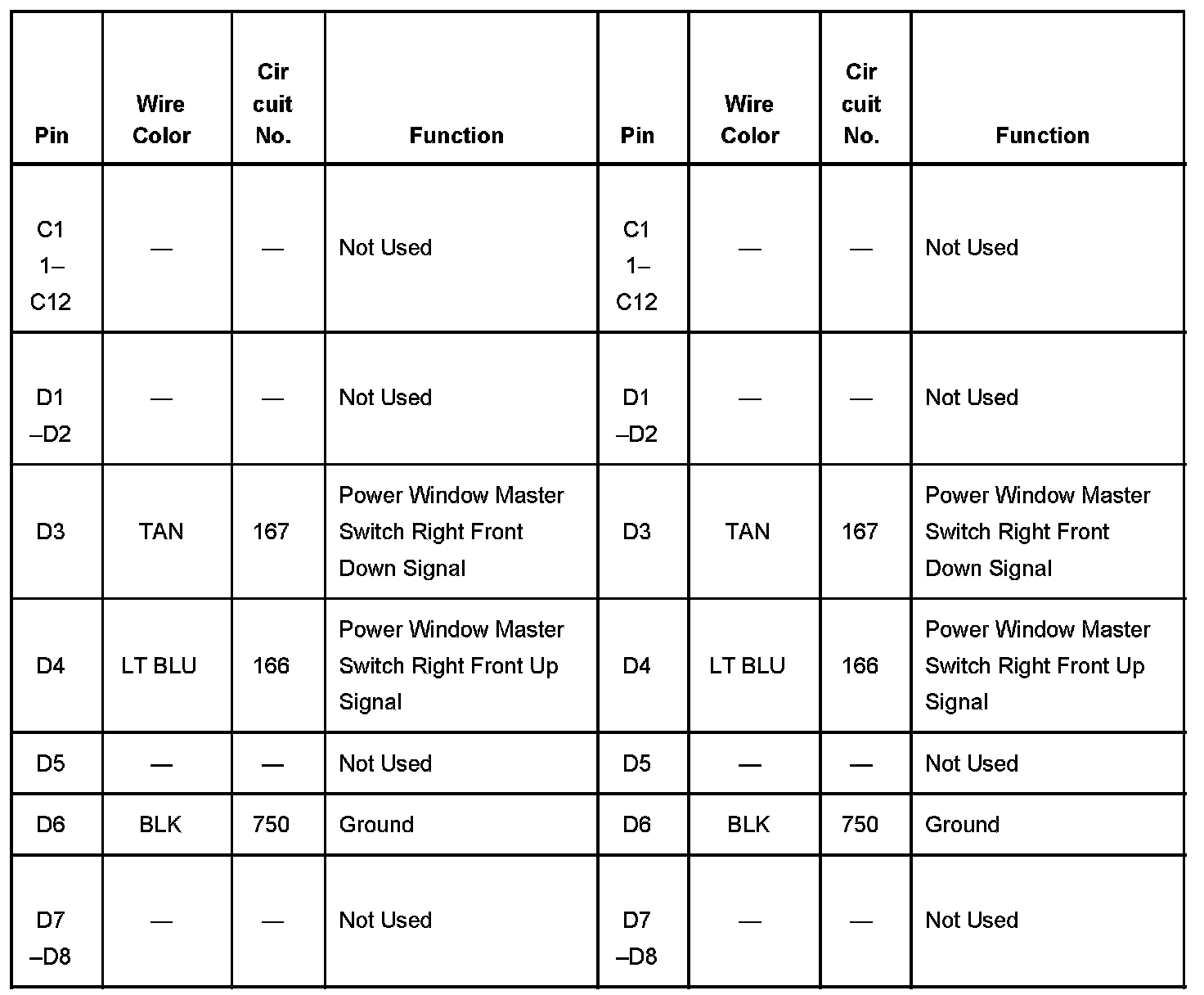

In-line Connector C304 Part 4:
