C200

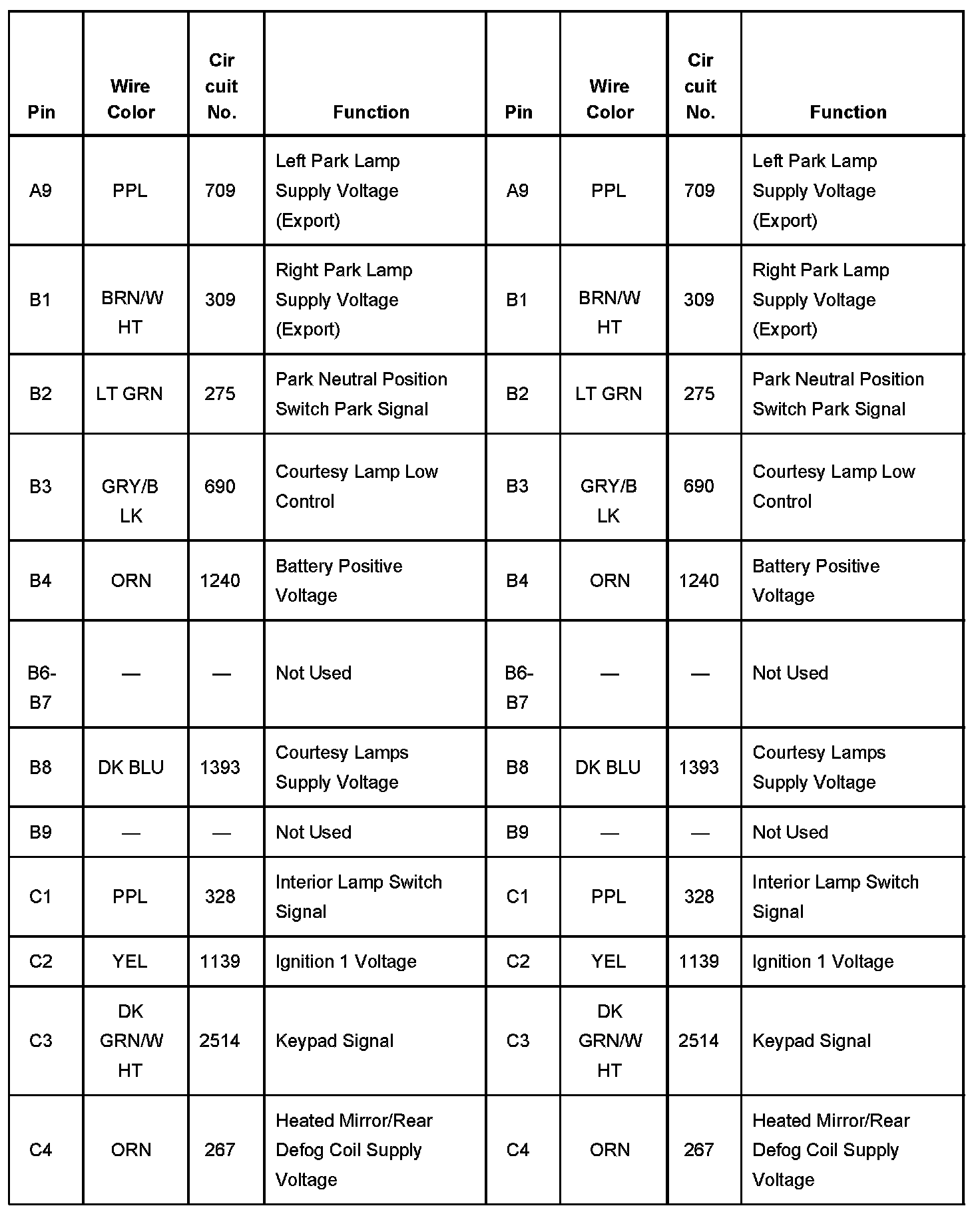

In-line Connector C200 Part 1:

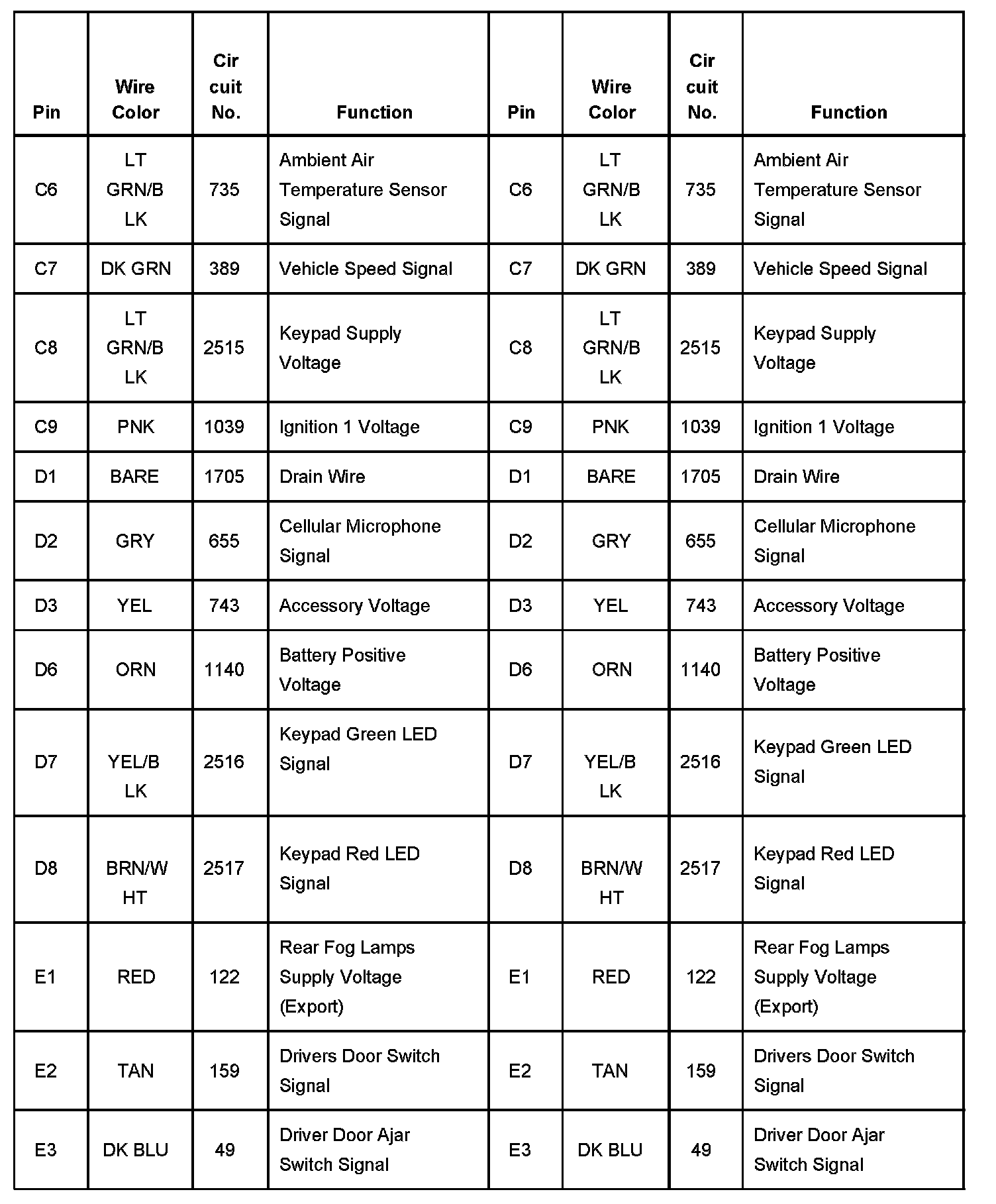

In-line Connector C200 Part 2:

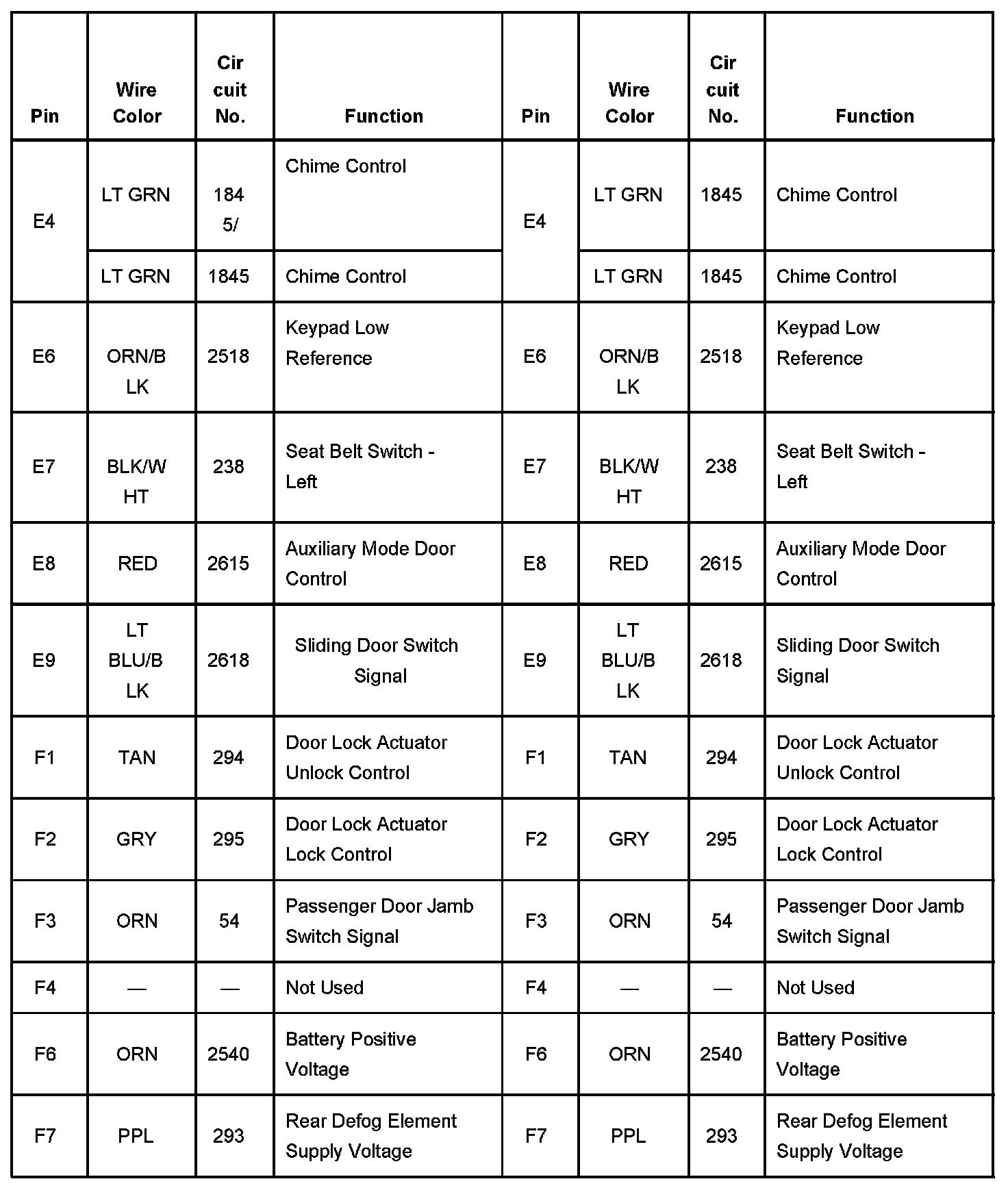

In-line Connector C200 Part 3:



In-line Connector C200 Part 4:



In-line Connector C200 Part 5:
