Home
>>
Chevy Truck
>>
2004
>>
Venture AWD V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Brake Switch - TCC
Brake Switch - TCC

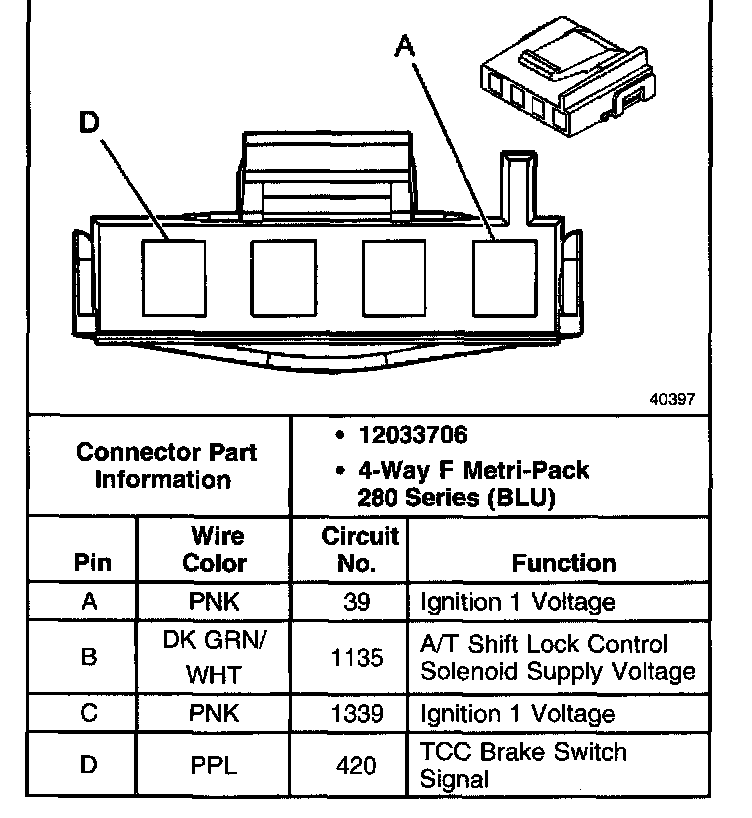

Stop Lamp Switch/TCC Switch Connector, Wiring Harness Side:
