Chevy Truck
>>
2004
>>
Venture AWD V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ambient Light Sensor
Ambient Light Sensor

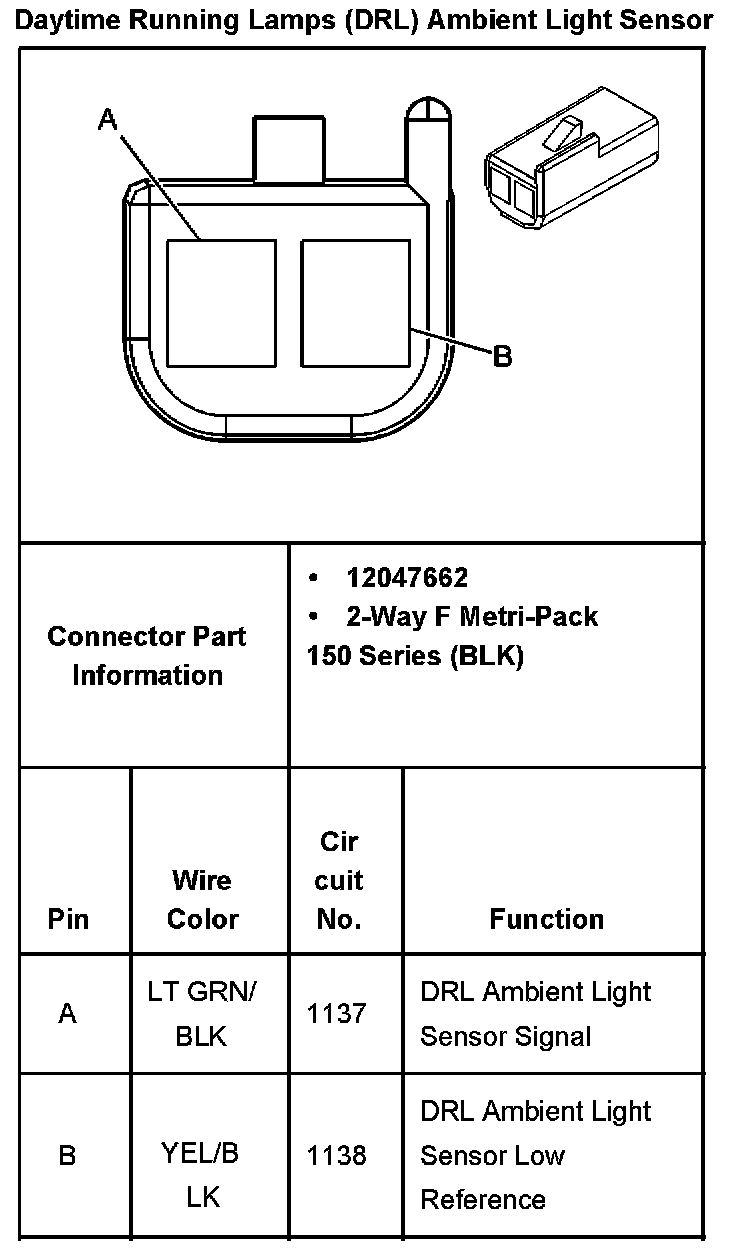

Daytime Running Lamps (DRL) Ambient Light Sensor:
