Chevy Truck
>>
2004
>>
Venture AWD V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Injection
>>
Air Injection Pump
Air Injection Pump

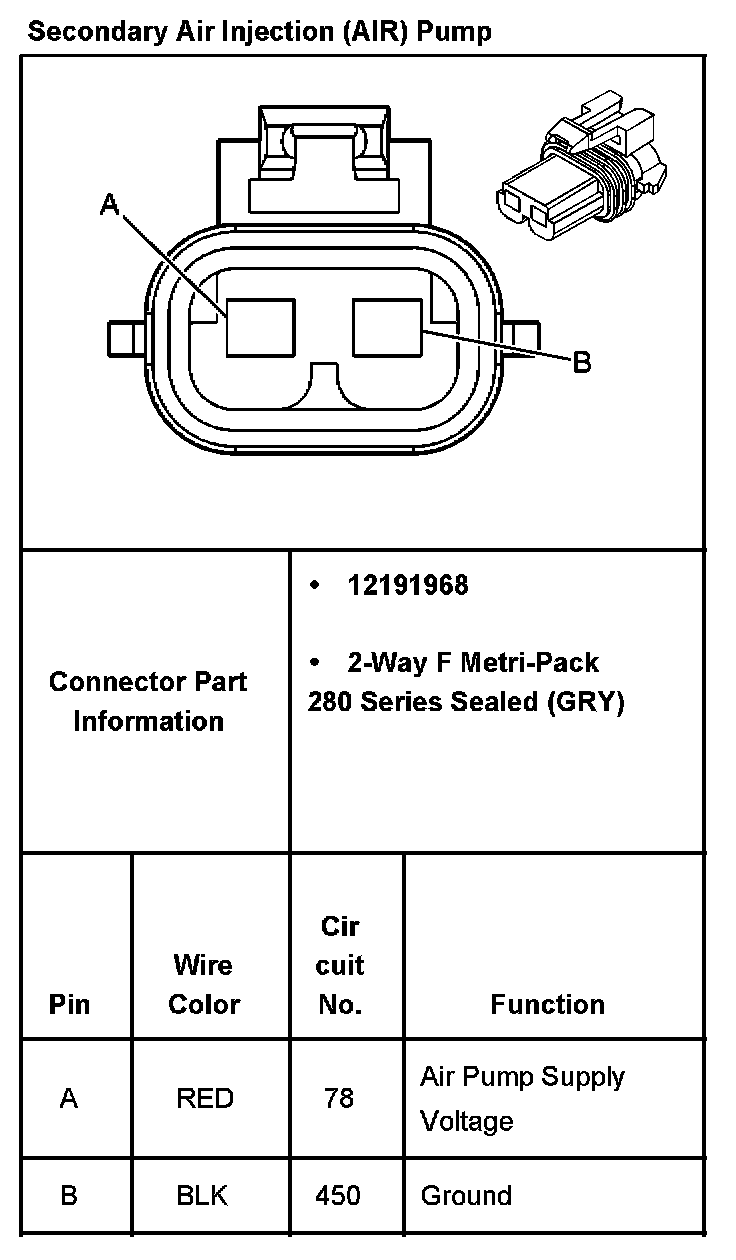

Secondary Air Injection(AIR) Pump:
