Park Brake Cable Replacement- Front

^ Tools Required
- J 37043 Park Brake Cable Release Tool

Removal Procedure





1. Remove the left-side instrument panel insulator.
2. Remove the left-side carpet retainer.
3. Fold back the carpet for access.
4. Raise and support the vehicle. Refer to Vehicle Lifting.

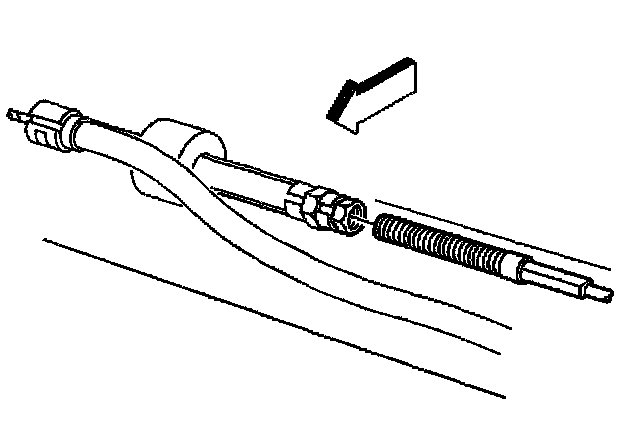

5. Loosen the park brake cable equalizer nut in order to remove the park brake left side cable from the park brake equalizer.

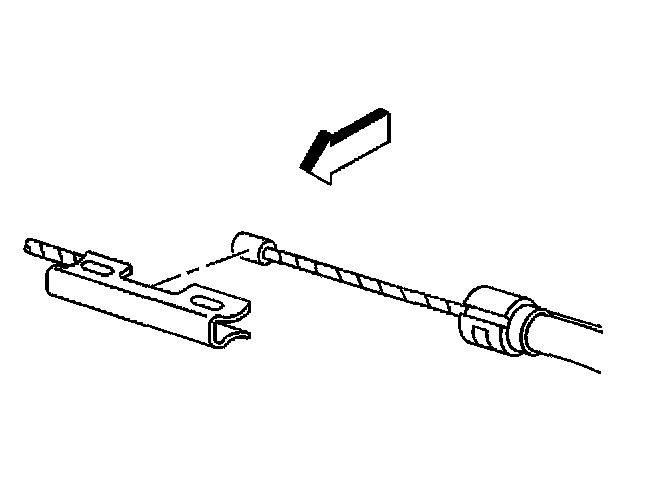

6. Remove the park brake cable end from the park brake cable connector.





7. Remove the park brake cable from the park brake cable equalizer.





8. Remove the park brake cable from the park brake cable guides.

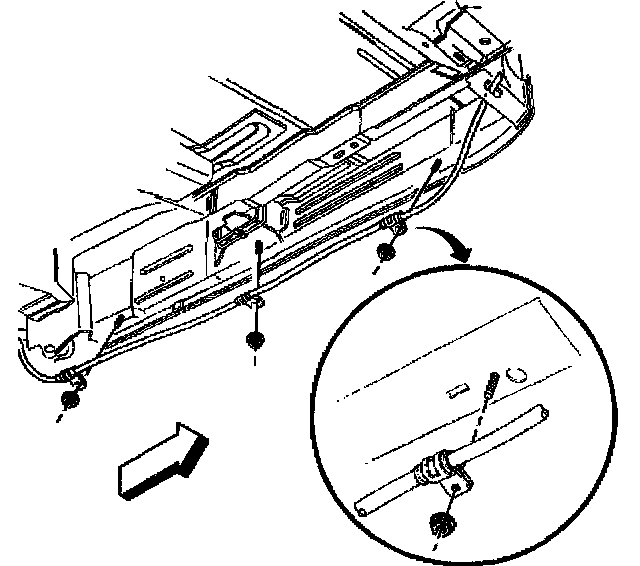

9. Remove the park brake cable nuts from the underbody studs.
10. Remove the park brake cable clips from the park brake cable.
11. Lower the vehicle.

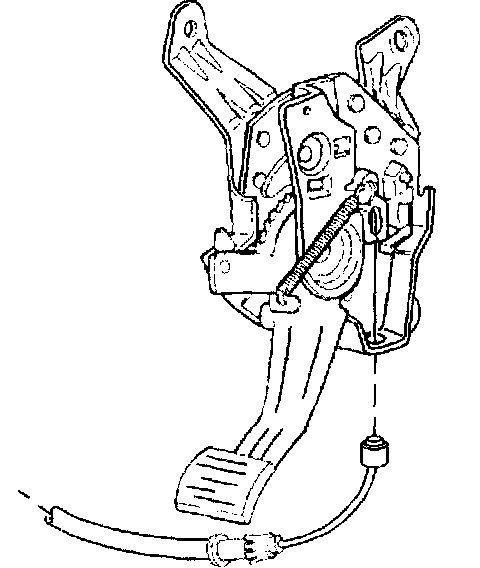

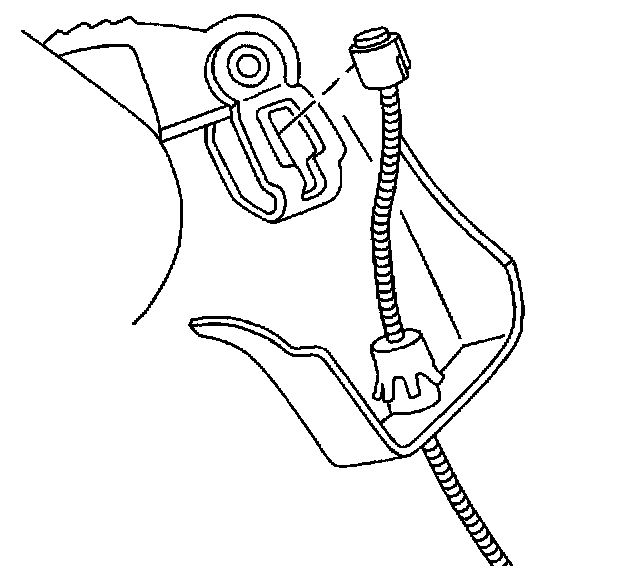

12. Remove the park brake cable end from the park brake lever clevis.

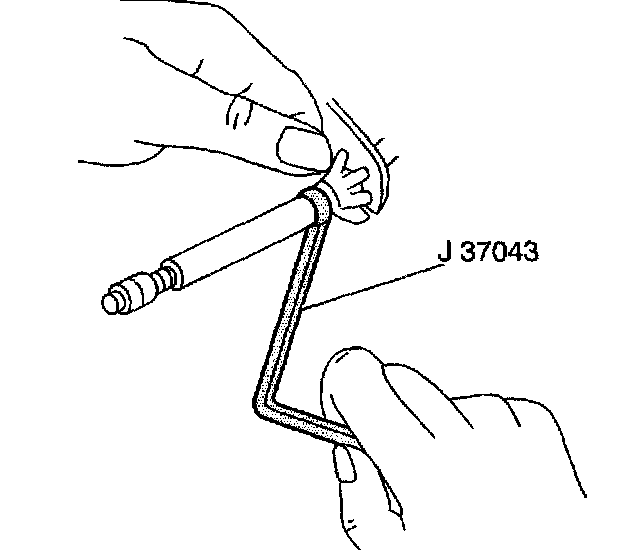

13. Use the J 37043 in order to remove the cable from the lever.
14. Remove the front park brake cable from the vehicle.

Installation Procedure





1. Install the front park brake cable to the vehicle.
2. Install the park brake cable to the park brake lever.





3. Install the park brake cable end to the park brake lever clevis.
4. Raise and support the vehicle. Refer to Vehicle Lifting.





5. Install the park brake cable clips to the park brake cable shielded areas.

Notice: Refer to Fastener Notice in Service Precautions.

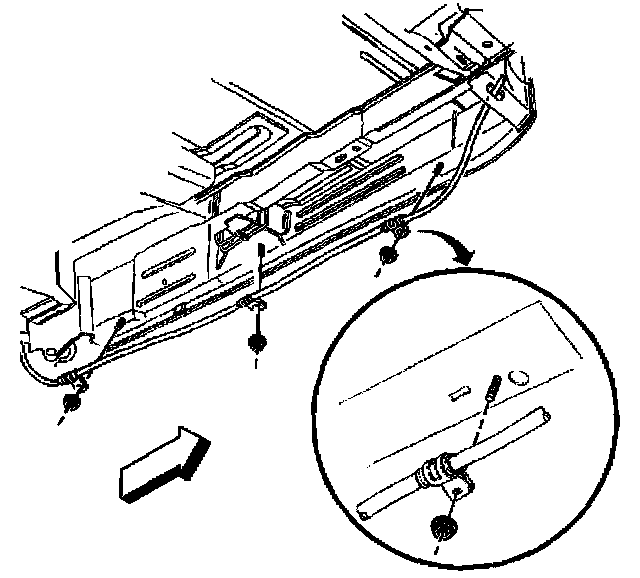

6. Install the park brake cable nuts to the underbody studs.
^ Tighten the nuts to 3 Nm (27 inch lbs.).
7. Install the park brake cable to the park brake cable guides.
8. Install the park brake cable to the park brake equalizer.

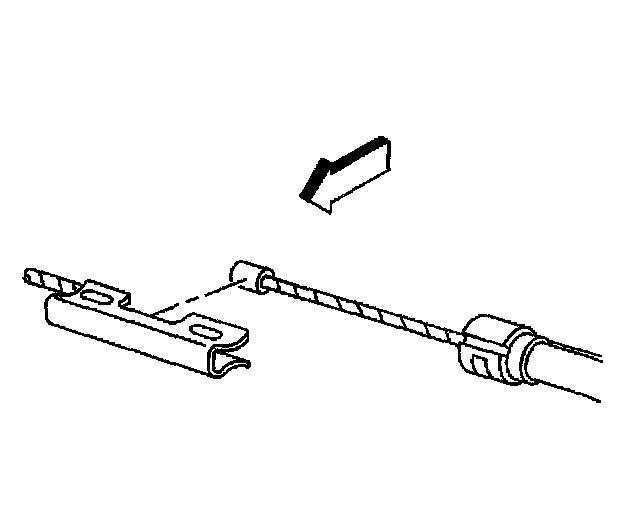

9. Install the park brake cable end to the park brake cable connector.





10. Install the park brake left side cable to the park brake equalizer.
11. Adjust the park brake cable.
12. Lower the vehicle.
13. Fold the carpet back in place
14. Install the left-side carpet retainer.
15. Install the left-side instrument panel insulator.
