DVD Player: Service and Repair

DVD PLAYER REPLACEMENT

REMOVAL PROCEDURE
1. Remove the bezel from the floor console.

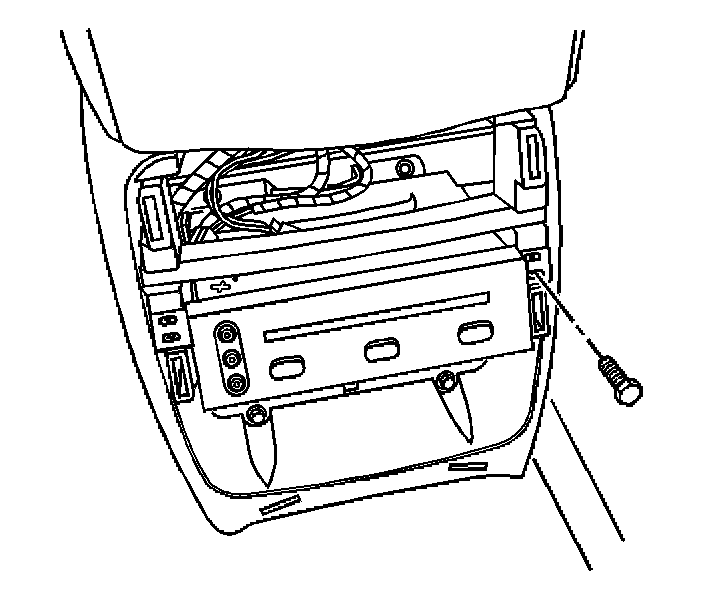

2. Remove the mounting screws from the DVD Player.

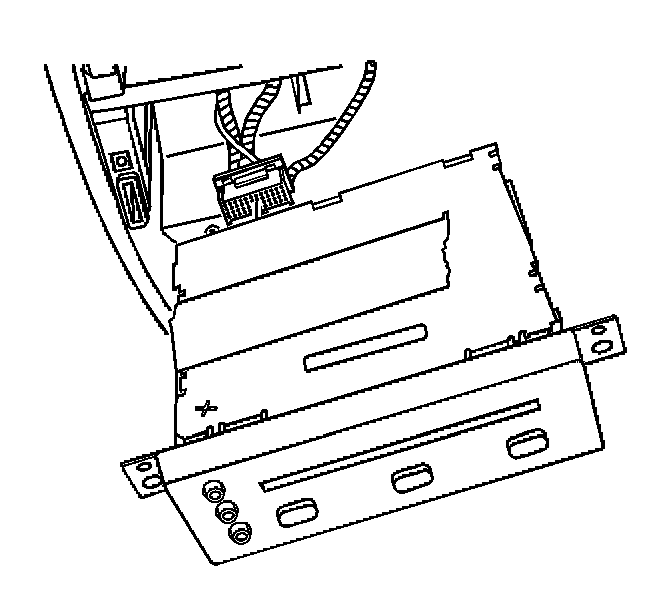

3. Slide the DVD player forward, and disconnect the electrical connectors from the DVD player.

INSTALLATION PROCEDURE




1. Connect the electrical connectors to the DVD player.

NOTE: Refer to Fastener Notice in Service Precautions.

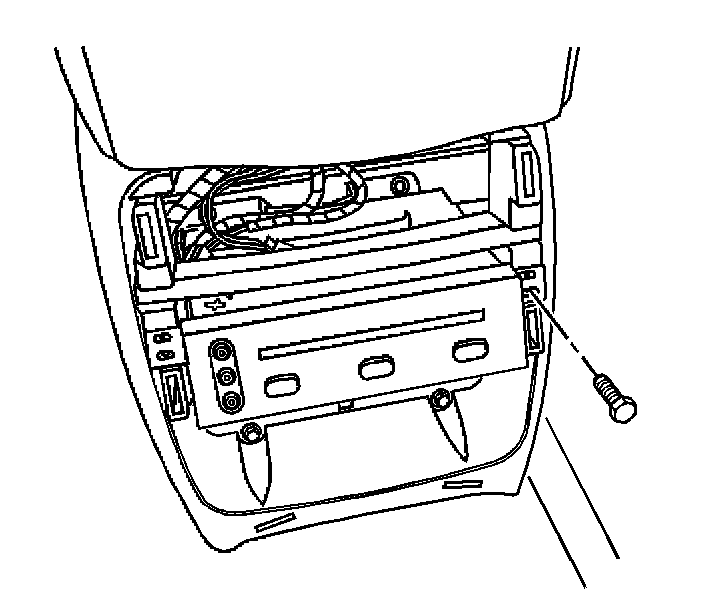

2. Slide the DVD player inward and fasten with screws.

Tighten
Tighten the screws to 2 N.m (18 lb in).

3. Install the bezel to the floor console.
