Cellular Phone Microphone: Service and Repair

ONSTAR MICROPHONE REPLACEMENT

REMOVAL PROCEDURE

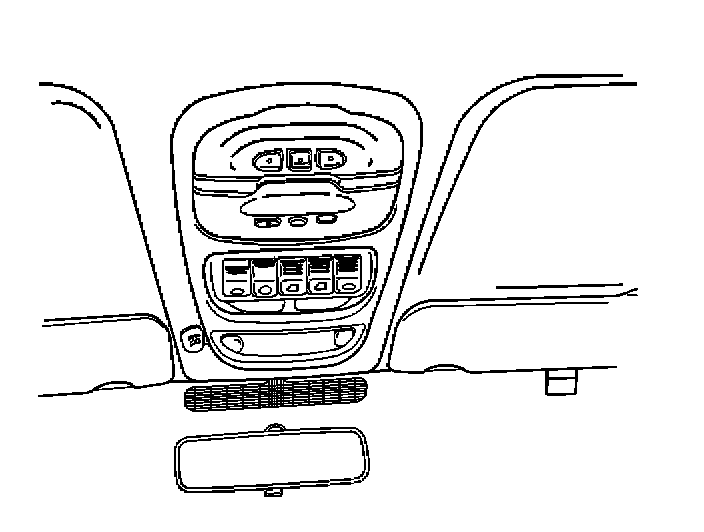

1. Remove the overhead console.

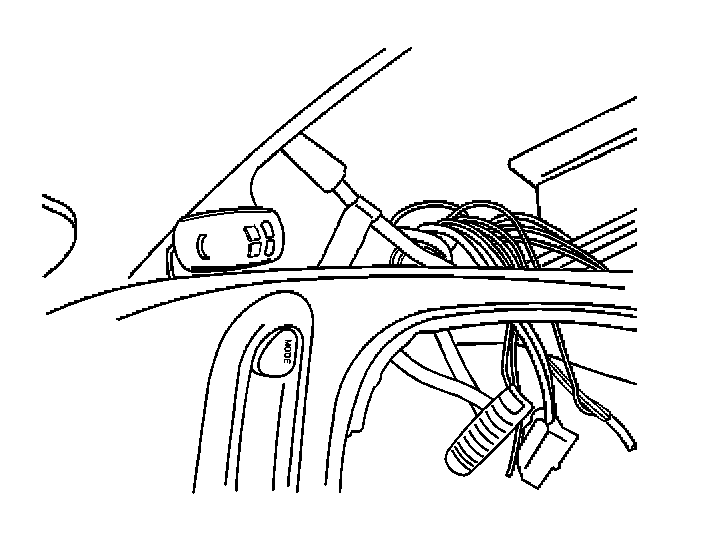

2. Disconnect the microphone electrical connector.
3. Remove the microphone from the headliner.

INSTALLATION PROCEDURE




1. Install the microphone to the headliner.
2. Connect the microphone electrical connector.




3. Install the overhead console.
