Body VIN Code 6 LL8

Transmission Fluid Cooler Hose/Pipe Replacement (Body VIN Code 6 LL8)

Removal Procedure





1. Disconnect the transmission cooler lines from the radiator.
2. Raise the vehicle.
3. Place a drain pan under the vehicle.

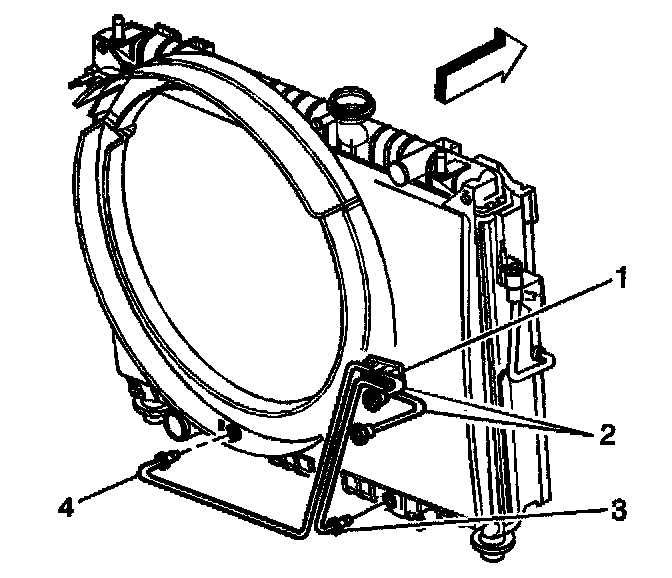

4. Remove the cooler lines (3,4) from the radiator.
5. Separate the front and rear cooler lines at the quick connect fitting (2).
6. Remove the cooler lines from the retainer (1) located on the radiator shroud.
7. Remove the front sections of the cooler lines from the vehicle.

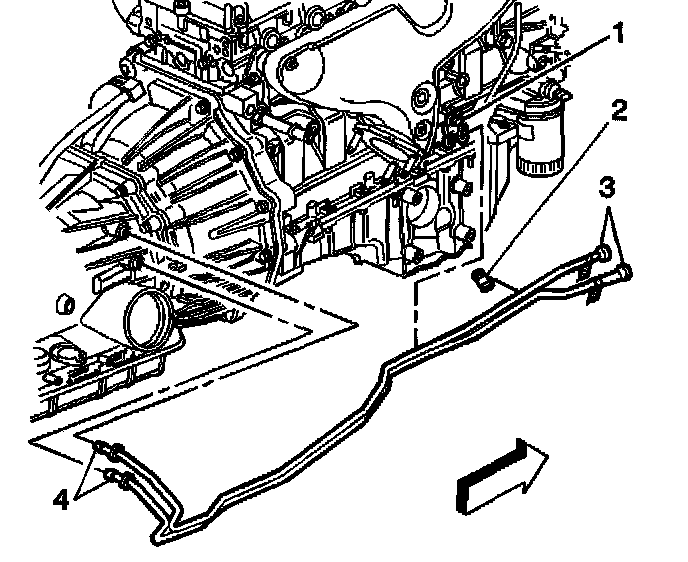

8. Remove the rear sections of the cooler lines from the retainer (1) located on the right side of the engine.
9. Remove the clip (2) that holds the cooler lines together.
10. Support the transmission with a transmission jack.
11. Remove the transmission support.
12. Remove the front exhaust pipe assembly.
13. Carefully lower the transmission to gain access to the cooler line fittings.
14. Disconnect the transmission cooler lines from the transmission.

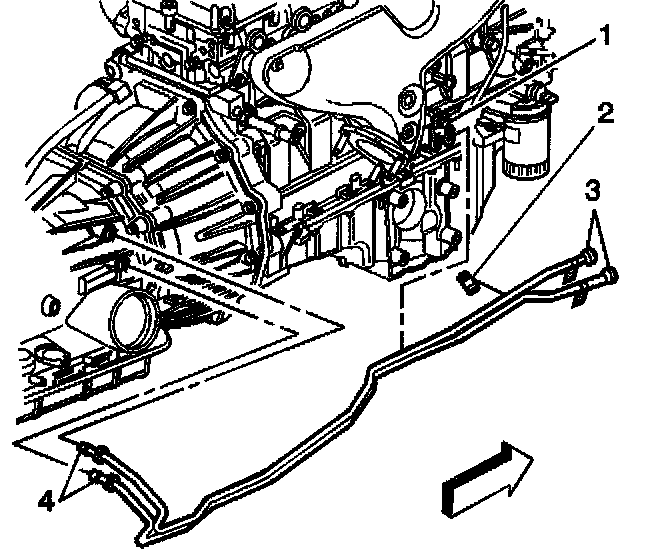

15. Disconnect the rear oil cooler lines (2) from the front oil cooler lines (1).
16. Remove the oil cooler lines from the vehicle.

Installation Procedure





1. Install the transmission oil cooler lines to the vehicle.
2. Install the transmission cooler lines to the transmission.

Notice: Ensure that the cooler line being installed has a plastic cap on each end that connects to a quick connect fitting. If no plastic cap exists, or the plastic cap is damaged, obtain a new plastic cap and position on to the cooler line prior to the cooler line installation.

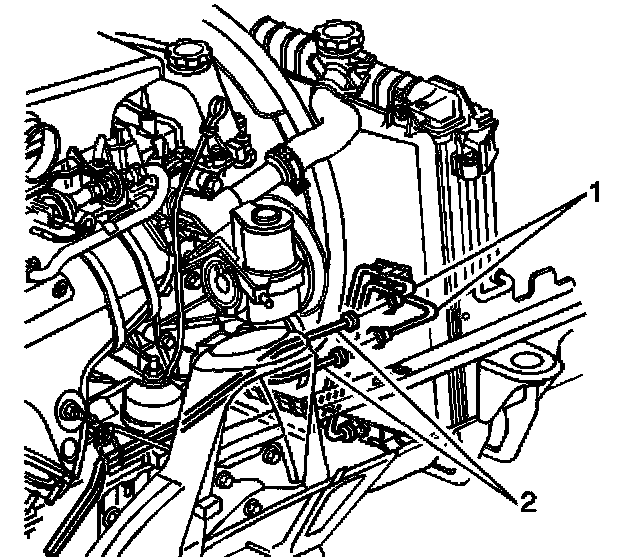

3. Connect the rear cooler lines (2) to the front cooler lines (1).
4. Raise the transmission into position.
5. Install the front exhaust pipe assembly.
6. Install the transmission support.





7. Remove the transmission jack.

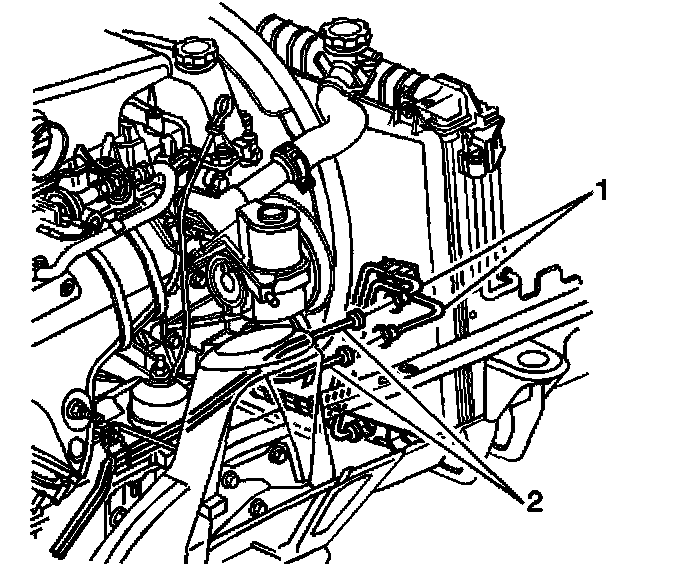

8. Install the clip (2) that holds the cooler lines together.
9. Install the cooler lines to the retainer (1) located on the right side of the engine.





10. Install the front sections of the cooler lines to the vehicle.

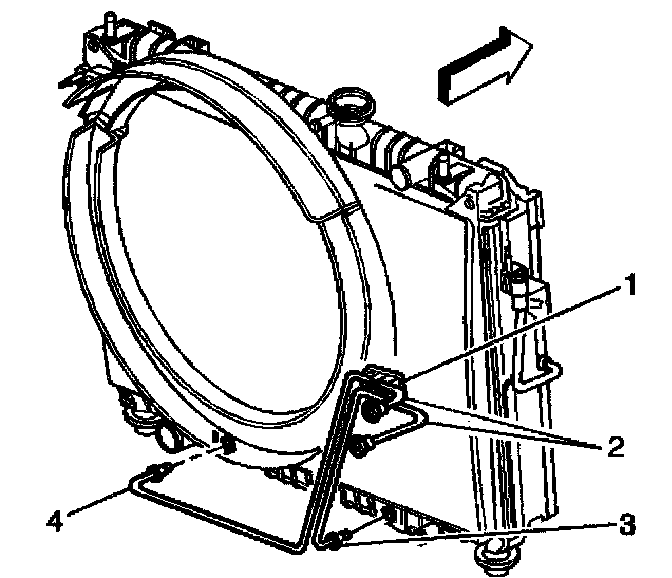

11. Install the cooler lines to the retainer (1) located on the radiator shroud.
12. Connect the front and rear cooler lines at the quick connect fitting (2).
13. Install the transmission cooler lines to the radiator.
14. Remove the drain pan from under the vehicle.
15. Lower the vehicle.
16. Fill the transmission to the proper level with DEXRON III transmission fluid.
