Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2004
>>
TrailBlazer 4WD V8-5.3L VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Tail Lamp
Tail Lamp

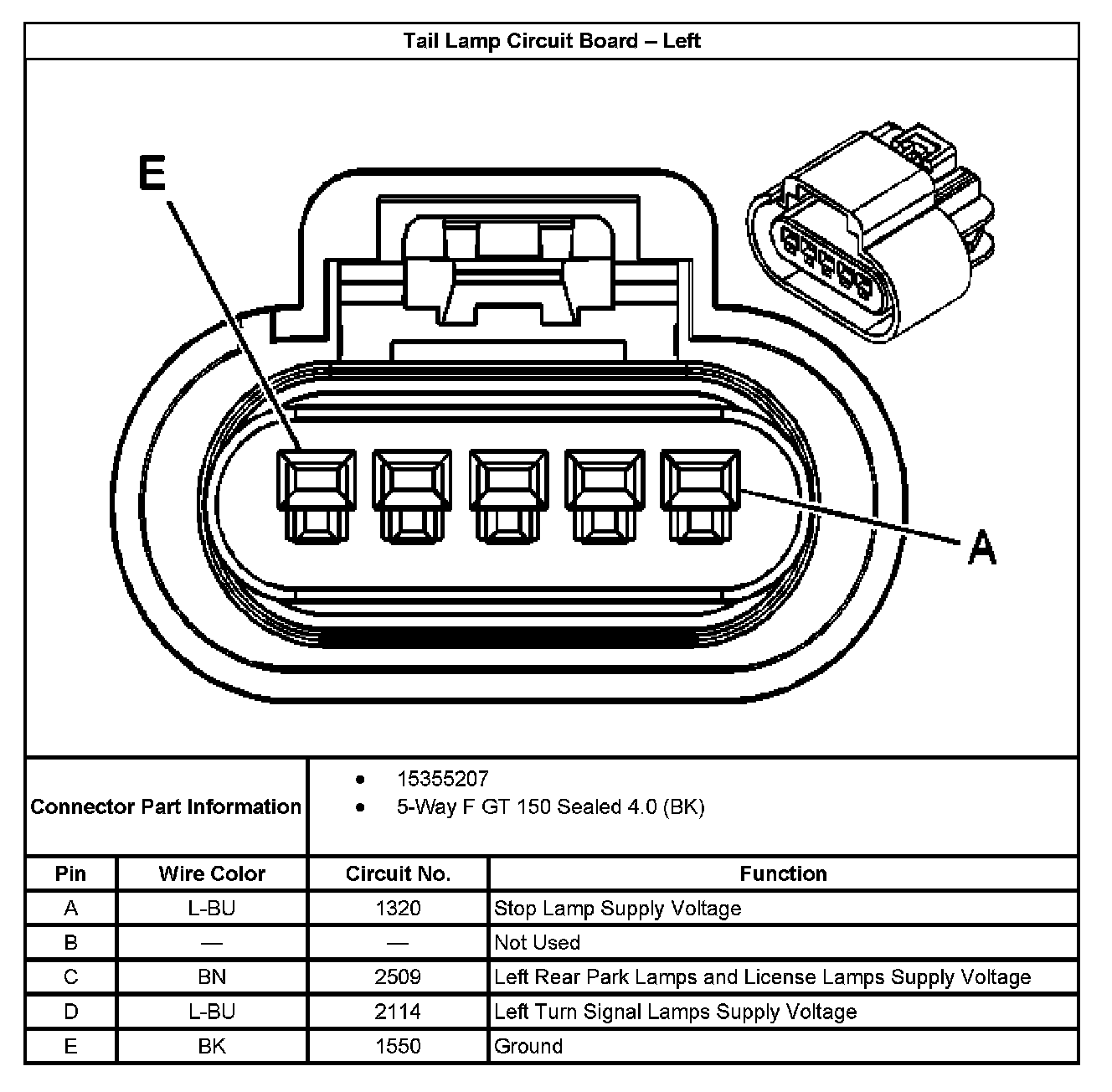

Tail Lamp Circuit Board - Left:

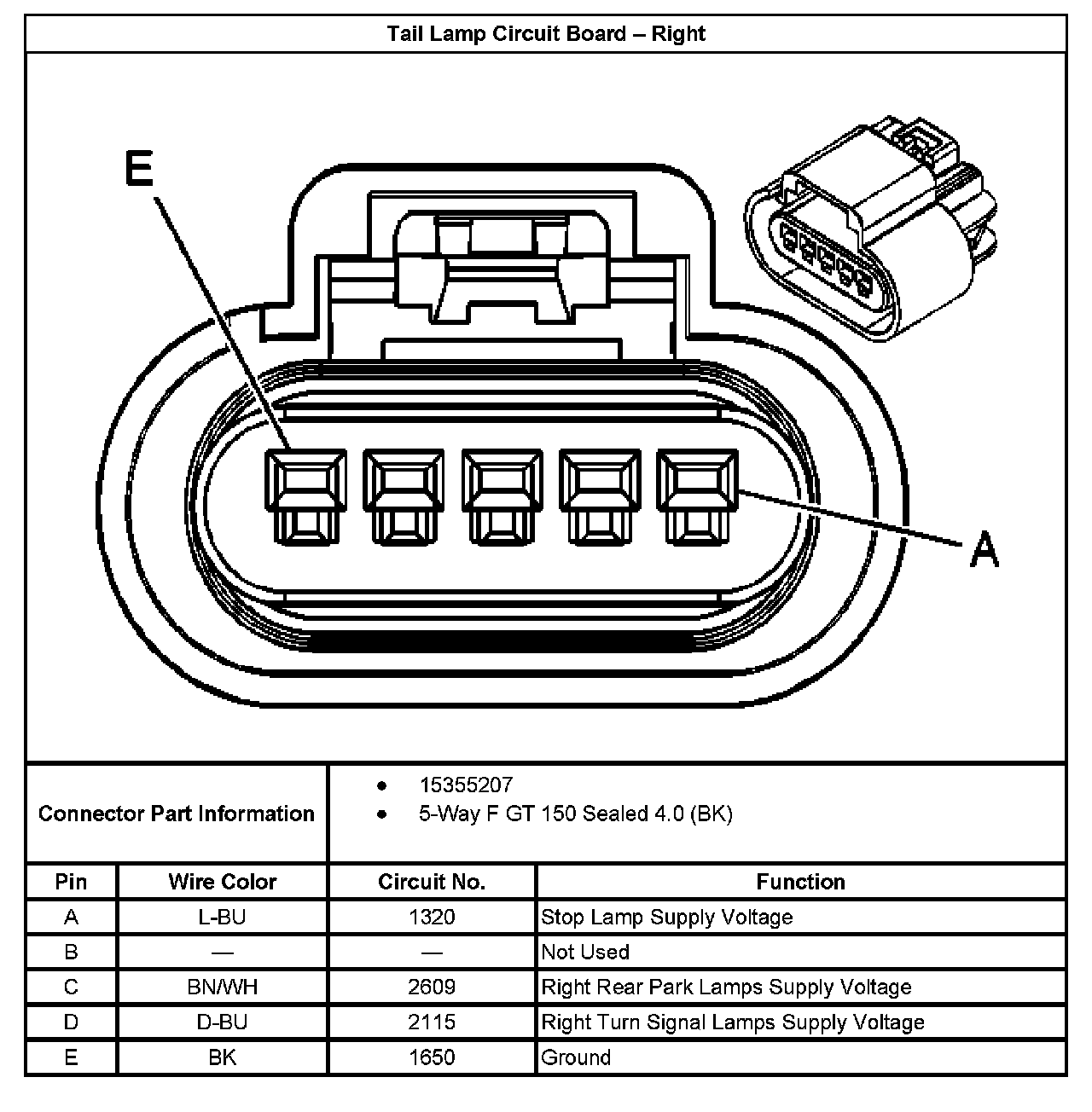

Tail Lamp Circuit Board - Right:
