Connector Views
>>
Pedal Positioning System
>>
System Diagram
System Diagram

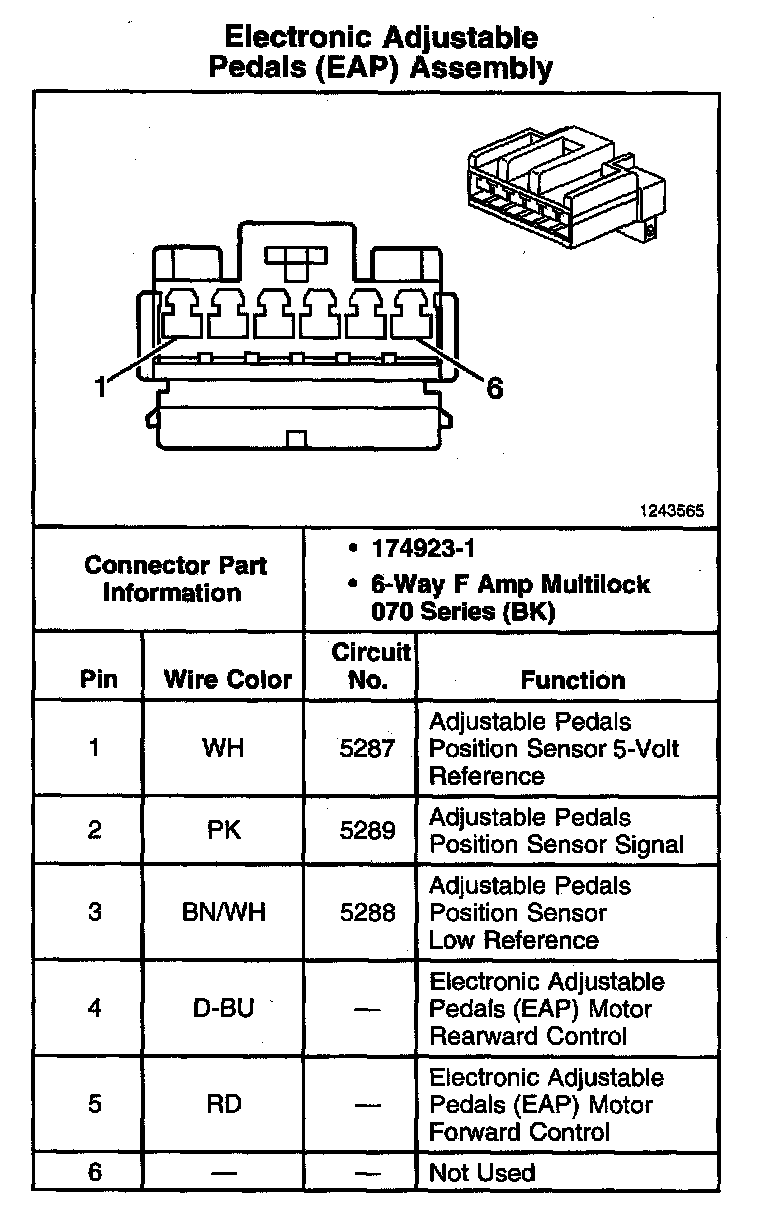

Electronice Adjustable Pedals (EAP) Assembly:
