Chevy Truck
>>
2004
>>
TrailBlazer 4WD L6-4.2L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Pedal Positioning System
>>
Pedal Positioning Switch
Pedal Positioning Switch

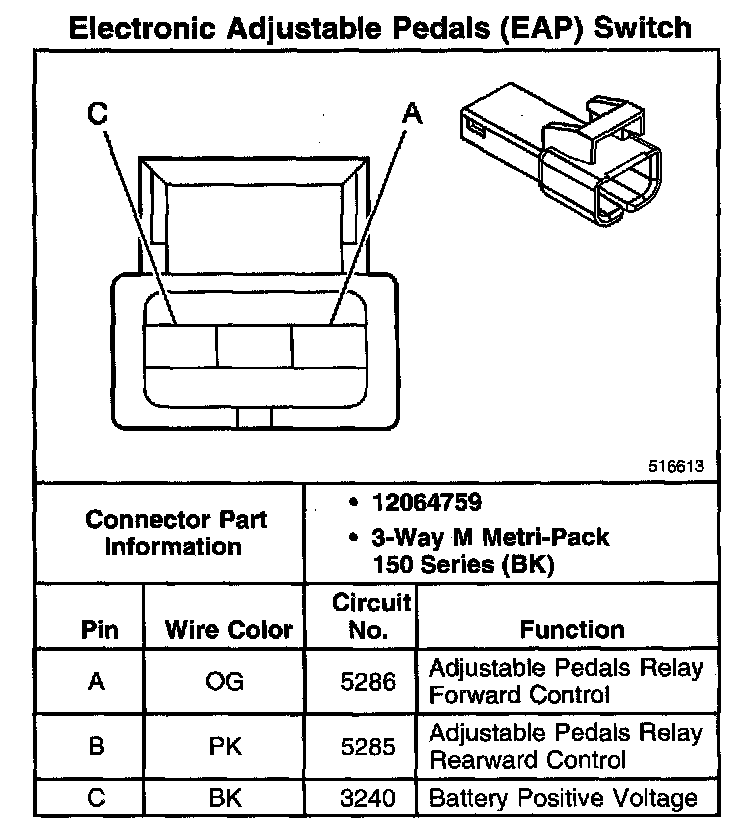

Electronic Adjustable Pedals (EAP) Switch:
