Chevy Truck
>>
2004
>>
TrailBlazer 4WD L6-4.2L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Headlamp
>>
System Diagram
System Diagram
Heafd:

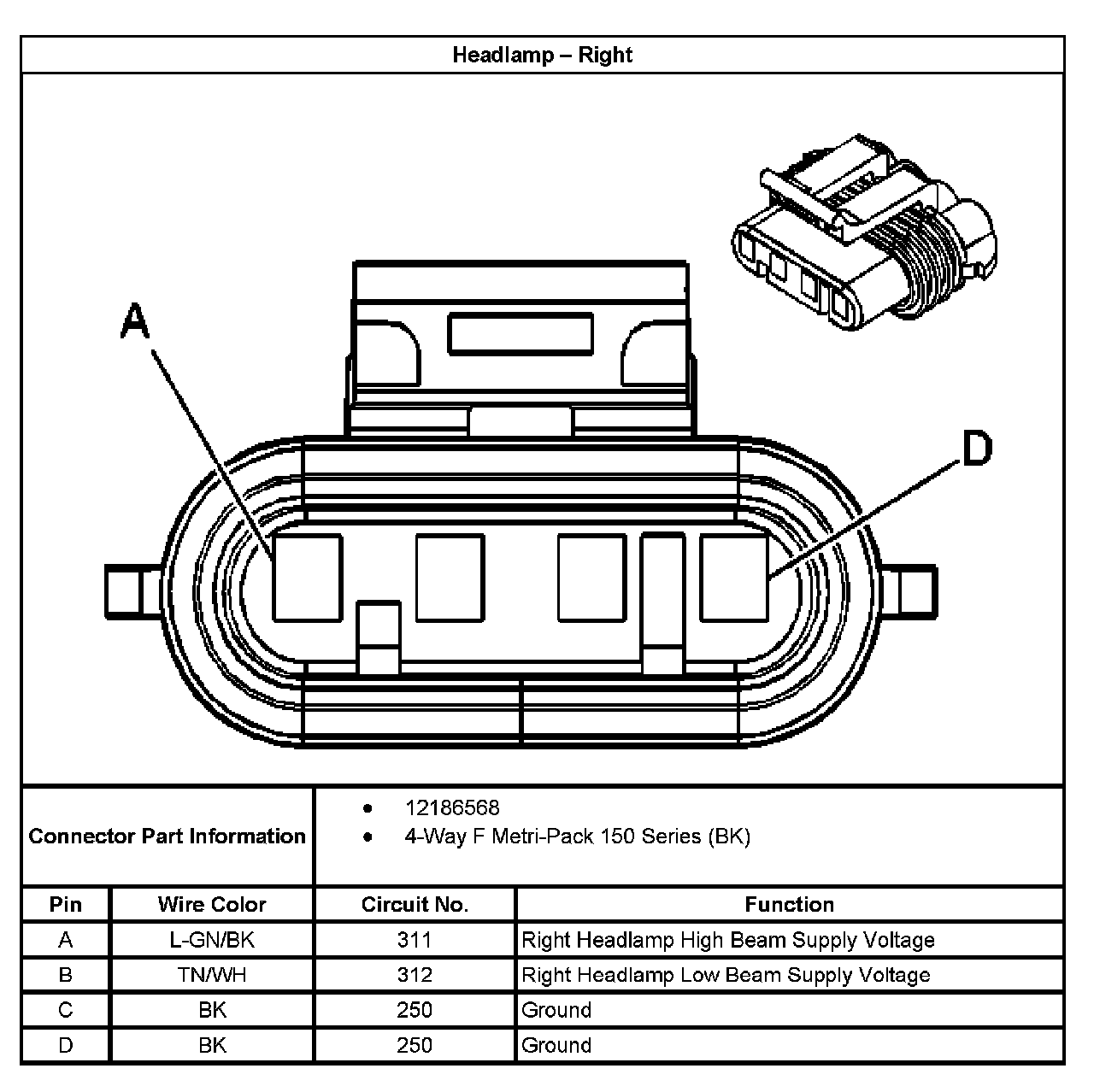

Headlamp - Right:
