Transmission Mount Spacer -Replacement

Transmission Mount Spacer -Replacement

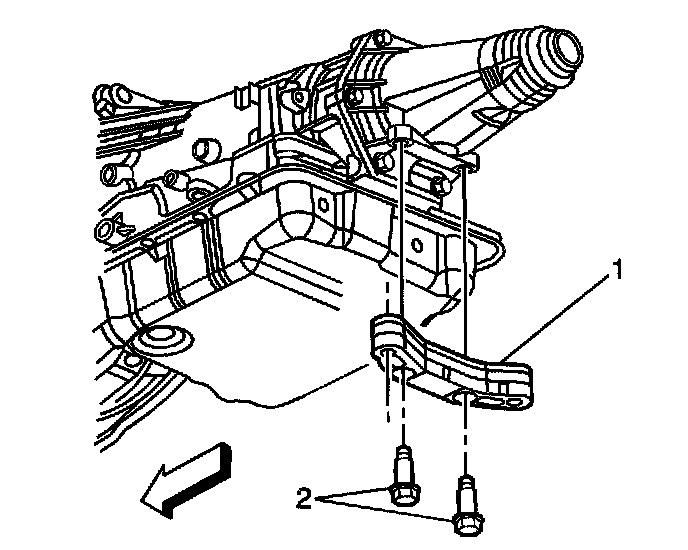

Removal Procedure





1. Raise the vehicle.
2. Remove the transmission mount.
3. Remove the transmission mount spacer mounting bolts (2).
4. Remove the transmission mount spacer (1).

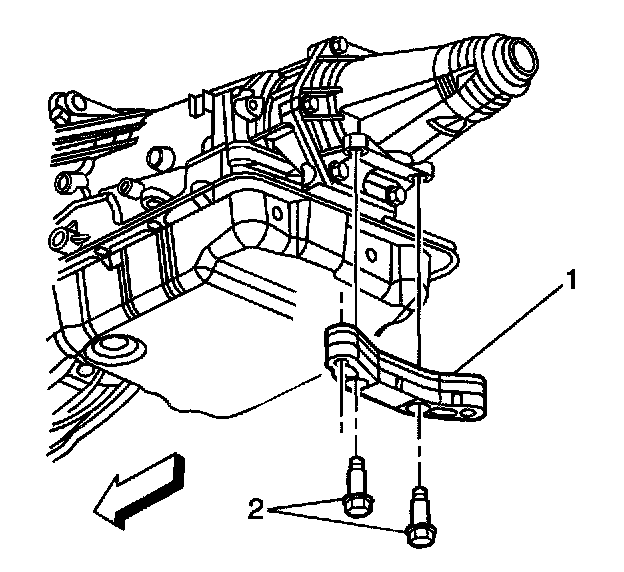

Installation Procedure

Notice: Refer to Fastener Notice in Cautions and Notices.





1. Install the transmission mount spacer (1).
2. Install the transmission mount spacer mounting bolts (2).
^ Tighten the bolts to 65 Nm (48 ft. lbs.).
3. Install the transmission mount.
4. Lower the vehicle.
