EVAP Hoses/Pipes Replacement - Chassis

EVAPORATIVE EMISSION (EVAP) HOSES/PIPES REPLACEMENT - CHASSIS

REMOVAL PROCEDURE




1. Remove the evaporative emission (EVAP)/fuel hose/pipe assembly.

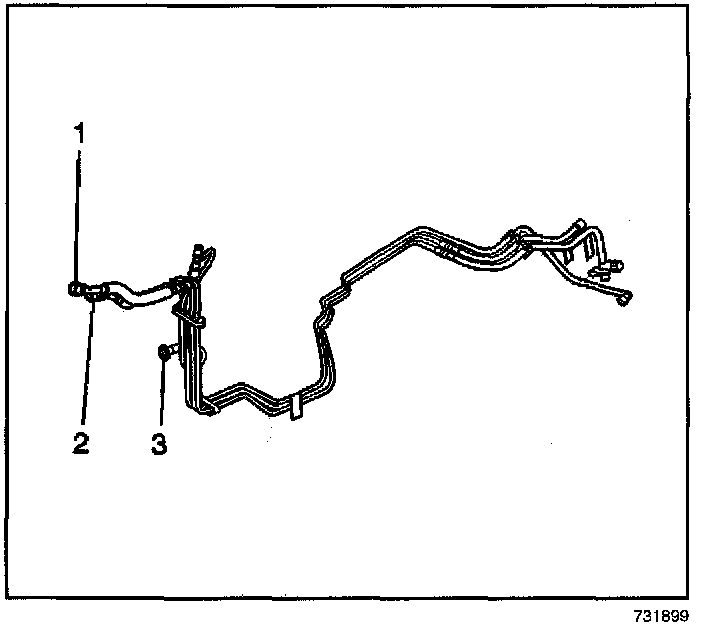

2. Remove the EVAP purge pipe (3) from the EVAP/fuel hose/pipe assembly.

INSTALLATION PROCEDURE

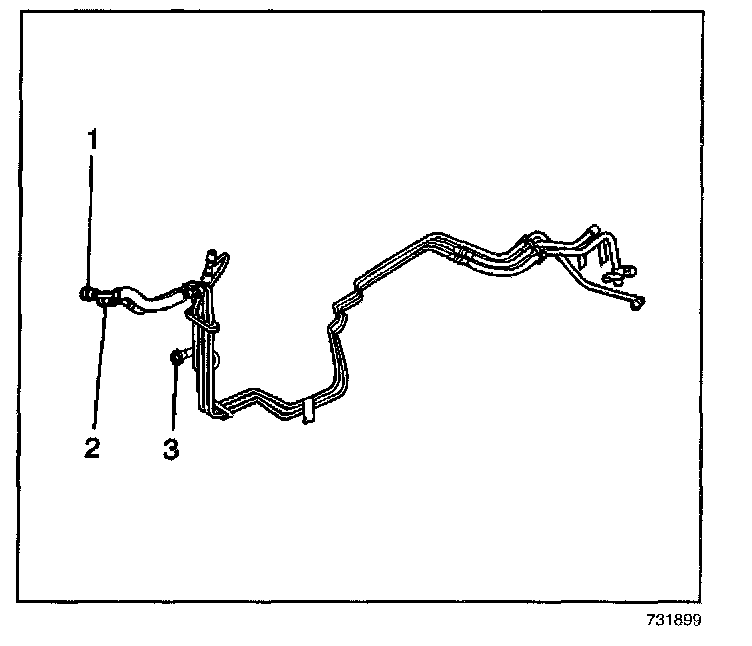

1. Install the EVAP purge pipe (3) from the EVAP/fuel hose /pipe assembly.
2. Install the evaporative emission (EVAP)/fuel hose /pipe assembly.
