Rear Floor

AIR OUTLET REPLACEMENT - REAR FLOOR

REMOVAL PROCEDURE
1. Remove the console support bracket.

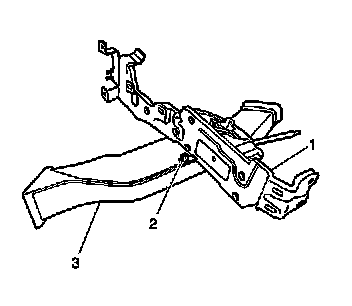

2. Drill the pop rivet (1).




3. Rotate the air outlet duct (3) to remove the duct from the console support bracket (1).
4. Remove the air outlet duct from the vehicle.

INSTALLATION PROCEDURE

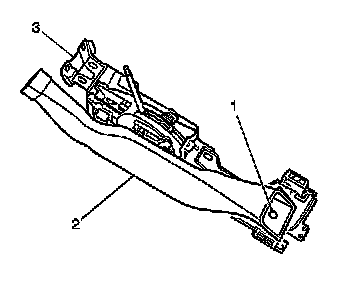

1. Install the air outlet duct (3) to the console support bracket (1).




2. Install a new pop rivet (1).
3. Install the console support bracket.
