Home >> Chevy Truck >> 2004 >> TrailBlazer 2WD V8-5.3L VIN P >> Repair and Diagnosis >> Body and Frame >> Seats >> Power Seat Motor >> Locations

Power Seat Motor: Locations

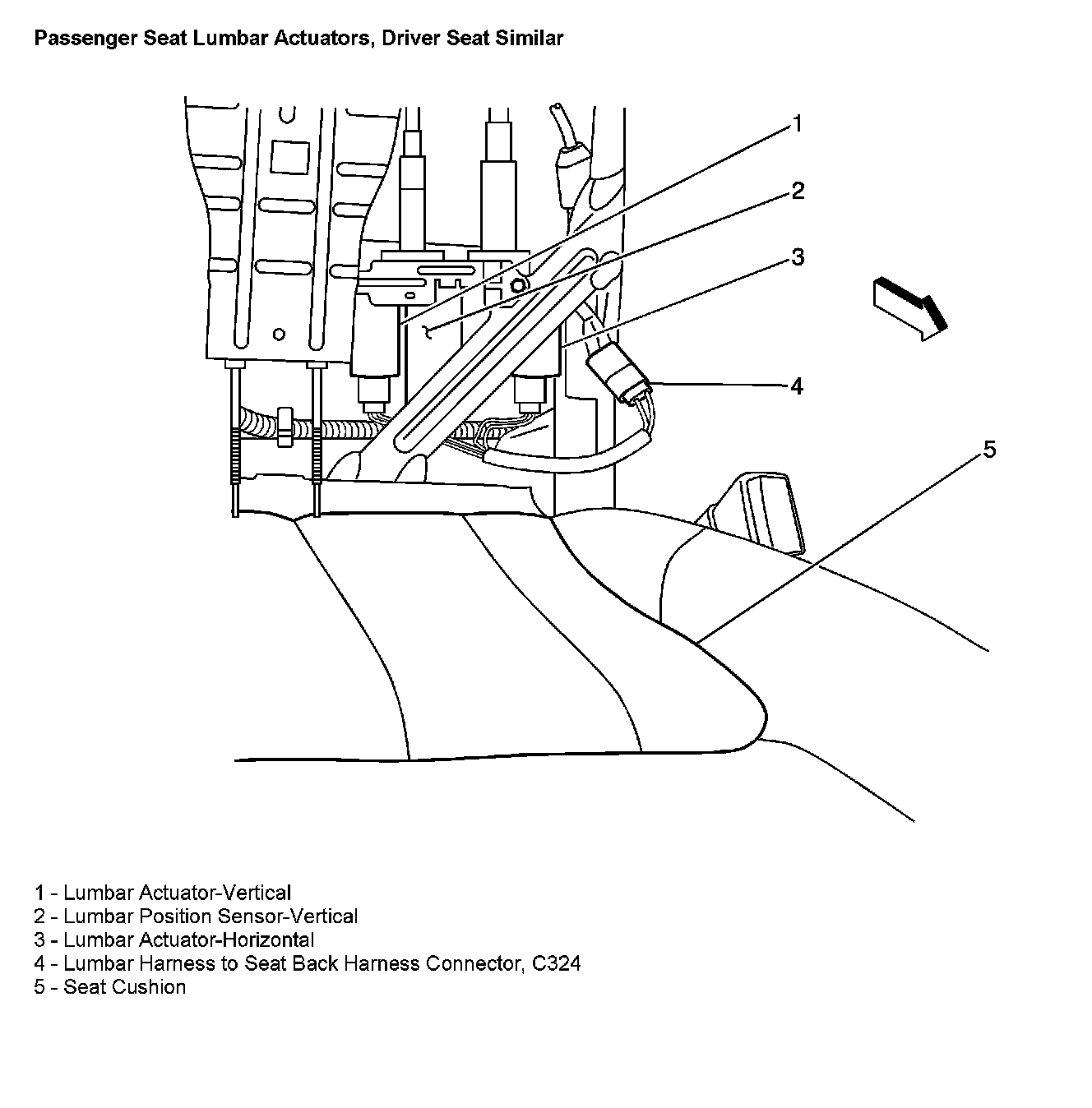

Passenger Seat Lumbar Actuators, Driver Seat Similar:



Front Passenger Seat:
