Power Steering Fluid Cooler: Service and Repair

Power Steering Cooler Replacement

Removal Procedure
1. Remove the radiator air intake baffle.
2. Install a drain pan under the vehicle.





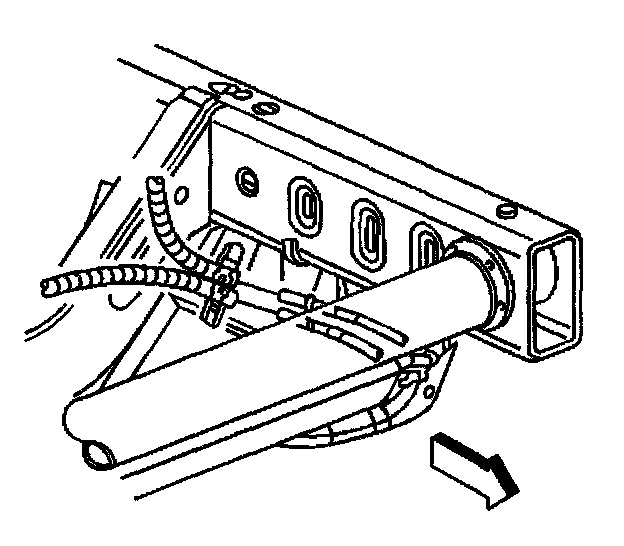

3. Disconnect the power steering hose assembly from the power steering cooler.





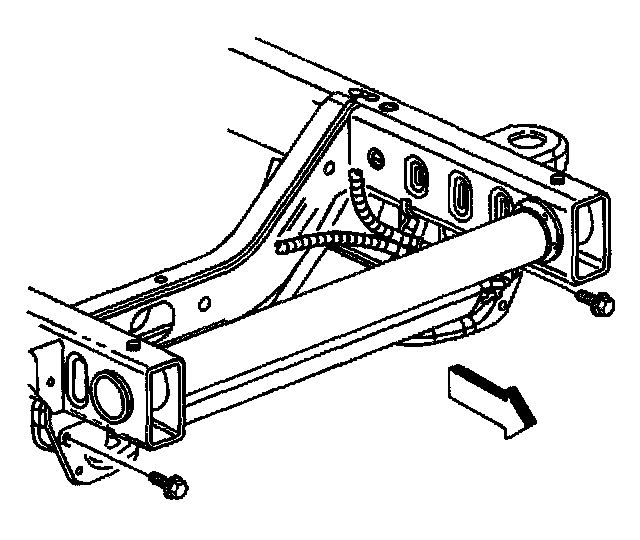

4. Remove the power steering cooler mounting bolts.

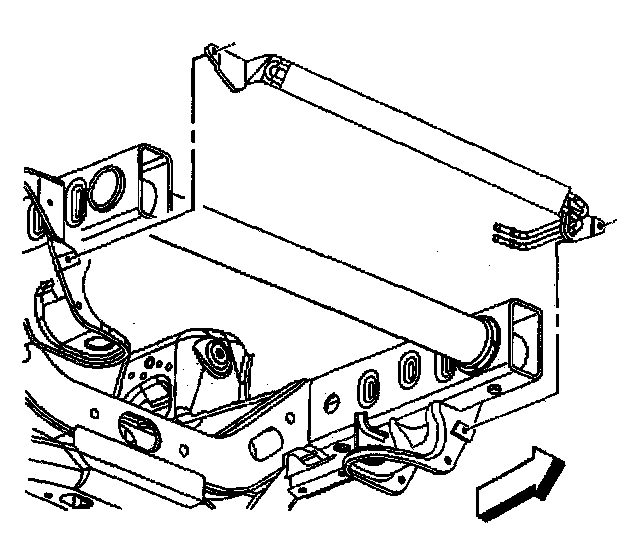

5. Remove the power steering cooler from the radiator support.

Installation Procedure

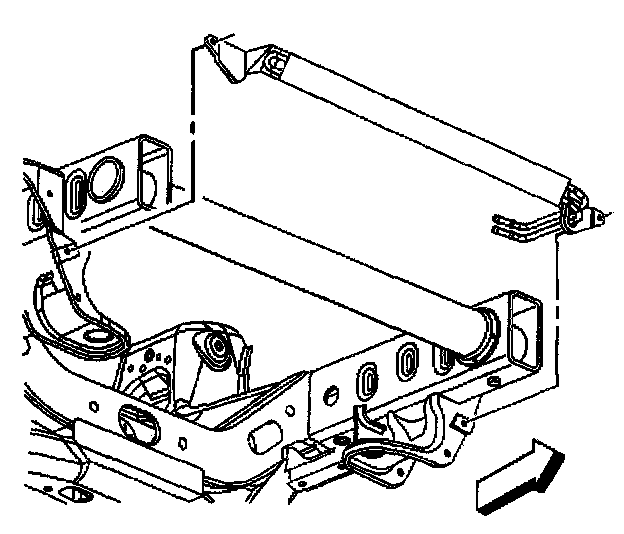

1. Install the power steering cooler to the radiator support.

Notice: Refer to Fastener Notice in Service Precautions.





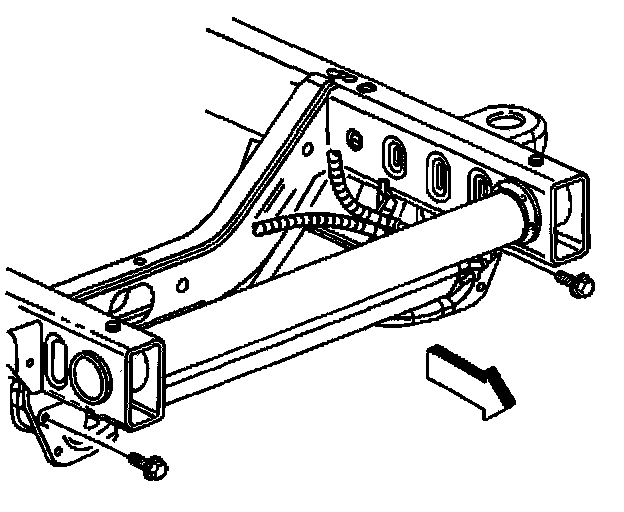

2. Install the power steering cooler mounting bolts.
Tighten the power steering cooler mounting bolts to 20 Nm (15 ft. lbs.).





3. Connect the power steering hoses assembly to the power steering cooler.
4. Remove drain pan from under the vehicle.
5. Install the radiator air intake baffle.
