Air Cleaner Resonator Outlet Duct Replacement
AIR CLEANER RESONATOR OUTLET DUCT REPLACEMENTREMOVAL PROCEDURE

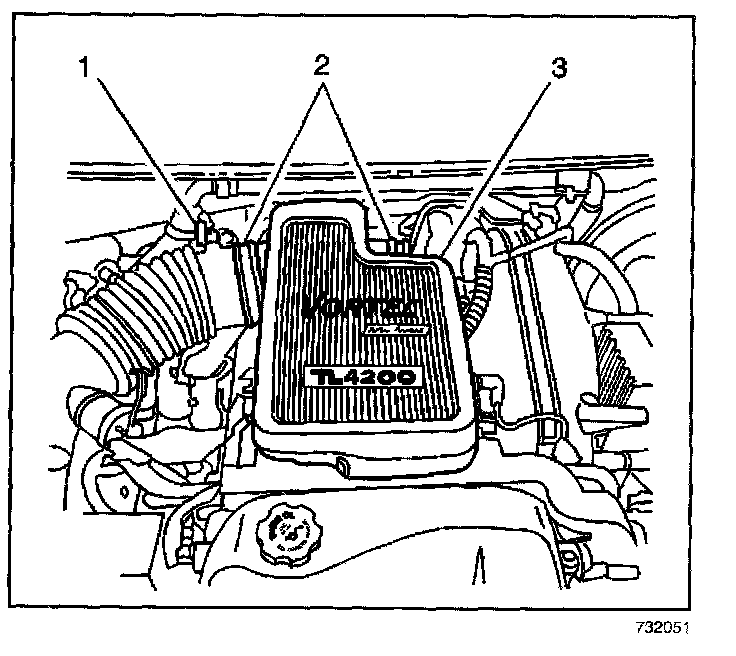

1. Remove the air cleaner element.
2. Disconnect the electrical connector from the intake air temperature (IAT) sensor (1).
3. Loosen the air cleaner outlet duct clamp (2) on the air cleaner side of the air cleaner outlet resonator (3).
4. Remove the air cleaner outlet duct.
5. If replacing the air cleaner outlet duct, remove the IAT sensor.
INSTALLATION PROCEDURE

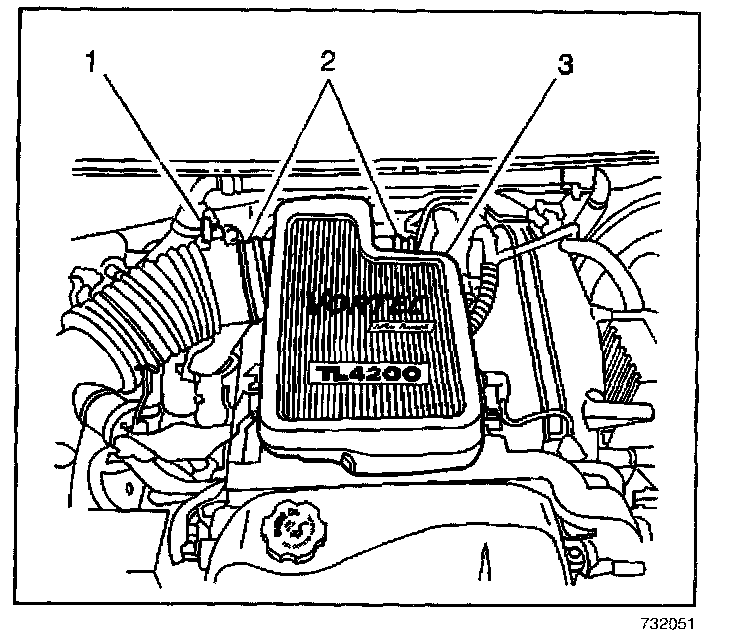

1. If the IAT sensor was previously removed, install the IAT sensor into the air cleaner outlet duct.
2. Install the air cleaner outlet duct onto the air cleaner outlet resonator (3).
3. Install the air cleaner element.
NOTE: Refer to Fastener Notice in Service Precautions.
4. Properly position the air cleaner outlet duct clamp (2) on the air cleaner side of the air cleaner outlet resonator (3).
Tighten
Tighten the clamp (2) to 4 N.m (35 lb in).
5. Connect the electrical connector to the IAT sensor (1).
