Fuel Filler Hose: Service and Repair
FUEL FILLER HOSE REPLACEMENTREMOVAL PROCEDURE
1. Remove the fuel fill cap.

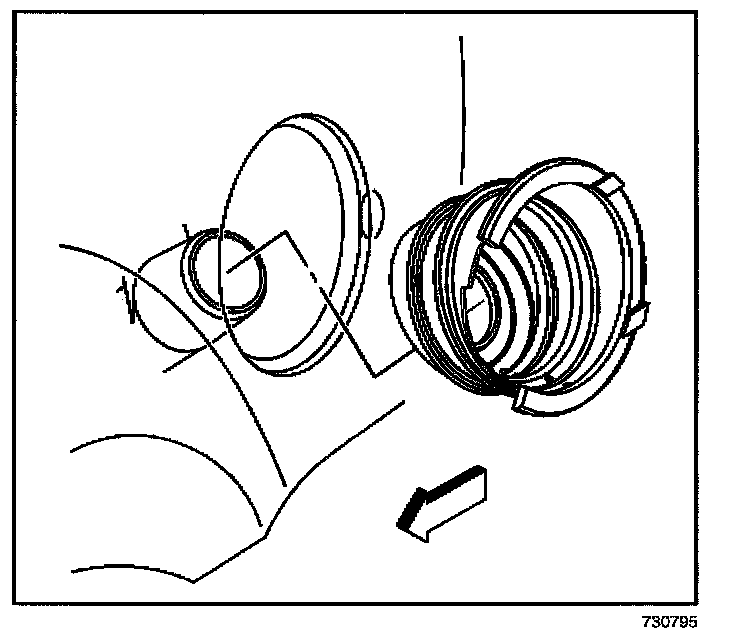

2. Remove the fuel fill pipe housing.

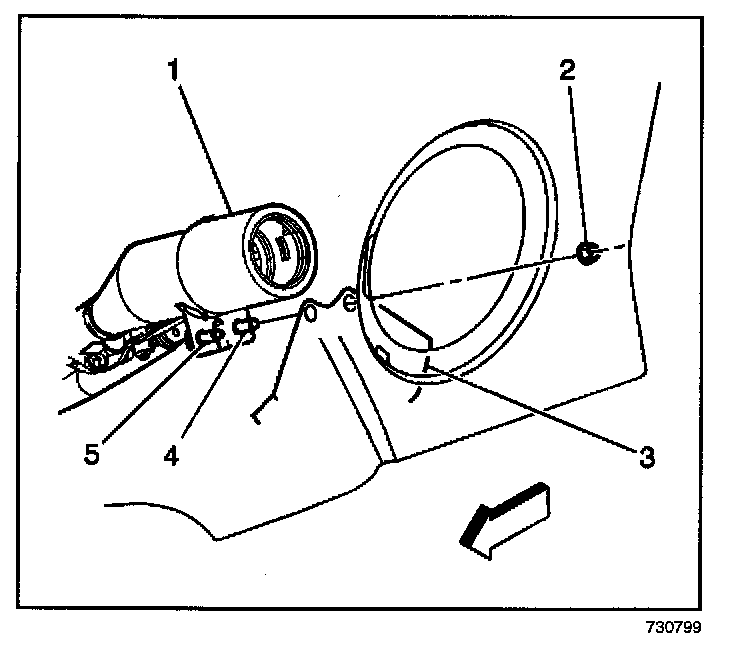

3. Remove the fuel fill pipe bracket nut (2).
4. Raise and suitably support the vehicle. Refer to Vehicle Lifting.

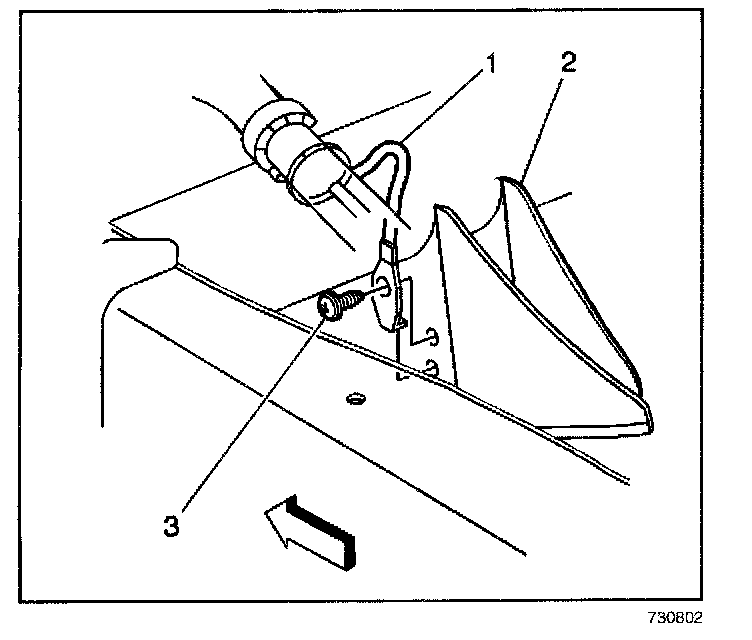

5. Remove the fuel fill pipe ground strap bolt (3).
6. Loosen the fuel hose clamp (1).
7. Separate the fuel hose (2) from the tank.
8. Cap the open end of the fuel tank.

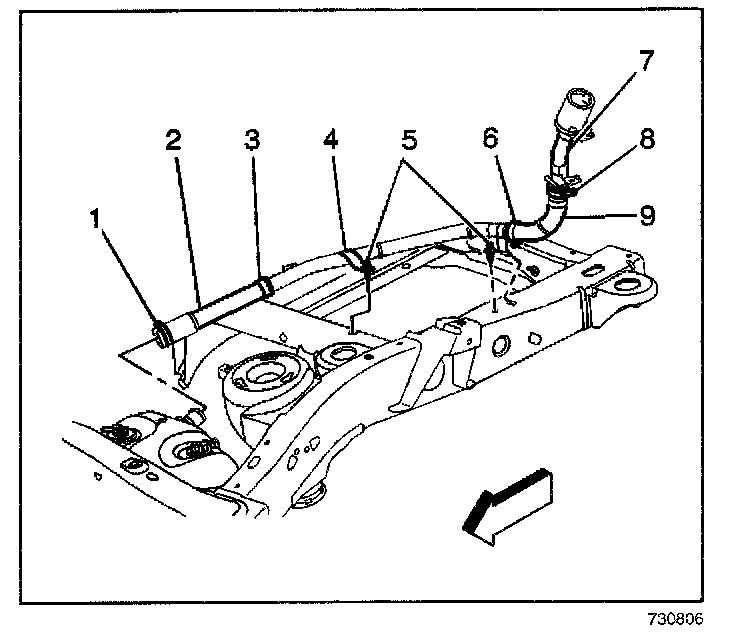

9. Remove the push pin fastener (5).
10. Remove the fuel filler pipe from the vehicle.
INSTALLATION PROCEDURE
1. Install the fuel filler pipe to the vehicle.

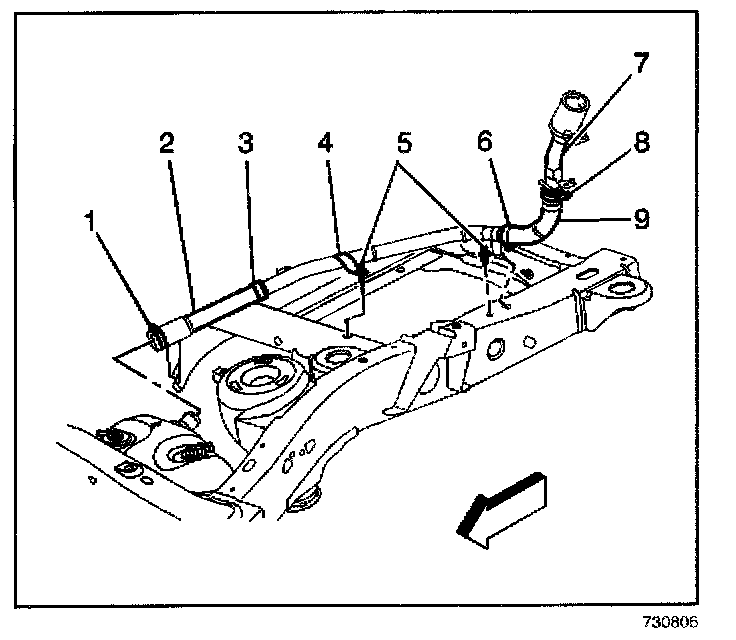

2. Install the push pin fastener (5).
3. Uncap the fuel tank.
4. Install the fuel hose (2) to the tank.
NOTE: Refer to Fastener Notice in Service Precautions.
5. Tighten the fuel fill hose clamp (1).
Tighten
Tighten the clamp to 2.5 N.m (22 lb in).
6. Install the fuel fill pipe ground strap bolt (3).
Tighten
Tighten the bolt to 10 N.m (89 lb in).
7. Lower the vehicle.

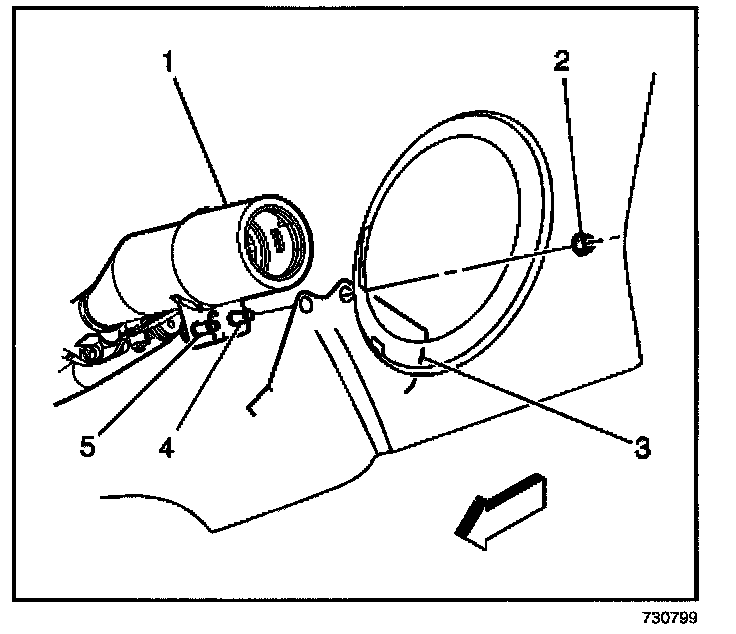

8. Install the fuel fill pipe bracket nut (2).
Tighten
Tighten the nut to 10 N.m (89 lb in).

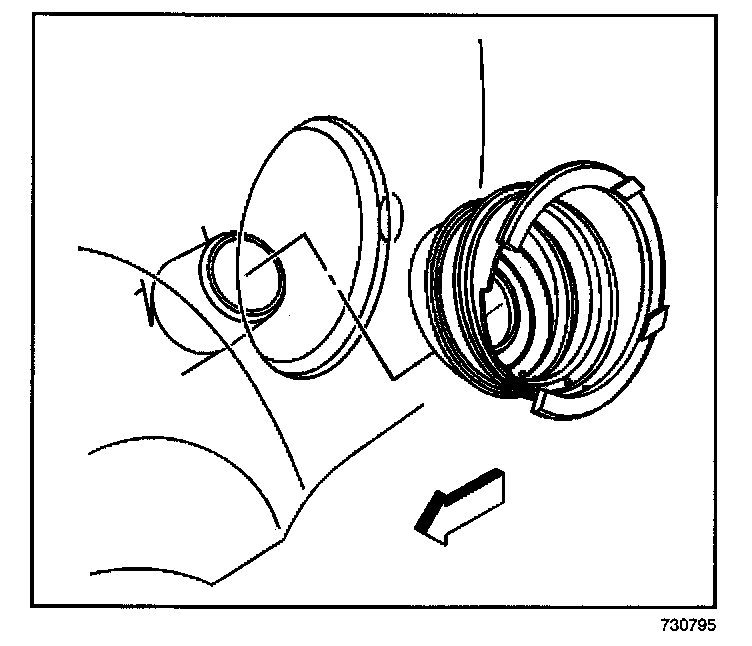

9. Install the fuel fill pipe housing.
10. Install the fuel fill cap.
