EVAP Hoses/Pipes Replacement - Engine/Chassis

EVAPORATIVE EMISSION (EVAP) HOSES/PIPES REPLACEMENT - ENGINE/CHASSIS

REMOVAL PROCEDURE

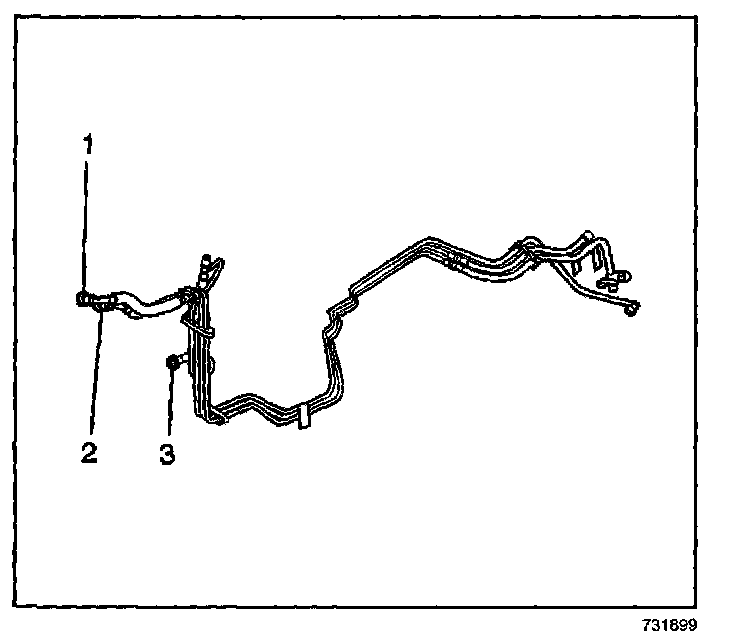

1. Remove the EVAP/fuel hose/pipe assembly.
2. Remove the EVAP purge pipe (3) from the EVAP/fuel hose/pipe assembly.

INSTALLATION PROCEDURE

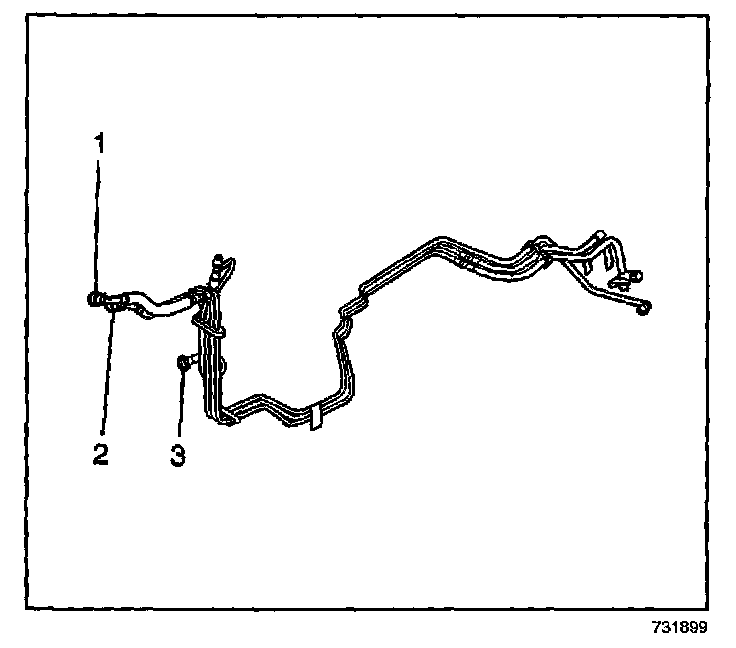

1. Place the new EVAP purge pipe (3) in the EVAP/fuel hose/pipe assembly.
2. Install the EVAP/fuel hose/pipe assembly.
