SIR Disabling and Enabling Zone 5

SIR DISABLING AND ENABLING ZONE 5

DISABLING PROCEDURE

IMPORTANT: Refer to SIR Disabling and Enabling Zones before disabling the SIR system.




1. Turn the steering wheel until the vehicle's wheels are pointing straight ahead.
2. Turn OFF the ignition.
3. Remove the key from the ignition.
4. Access IP module connector through glove box.

IMPORTANT: With the SIR fuse removed and the ignition ON, the AIR BAG indicator illuminates. This is normal operation and does not indicate an SIR system malfunction.

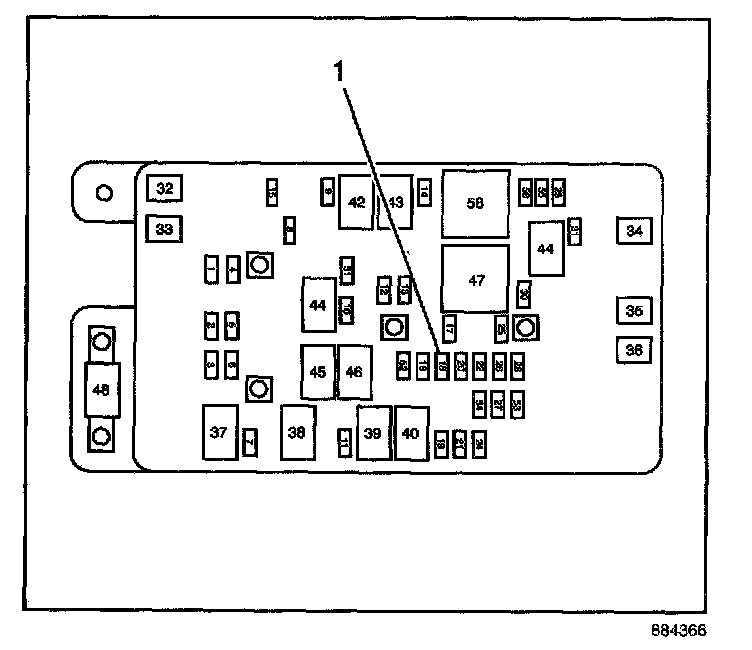

5. Remove the SIR fuse from the fuse block (1) located in the underhood fuse block.




6. Remove the CPA from the IP module yellow 4-way connector (1) located behind the IP support.

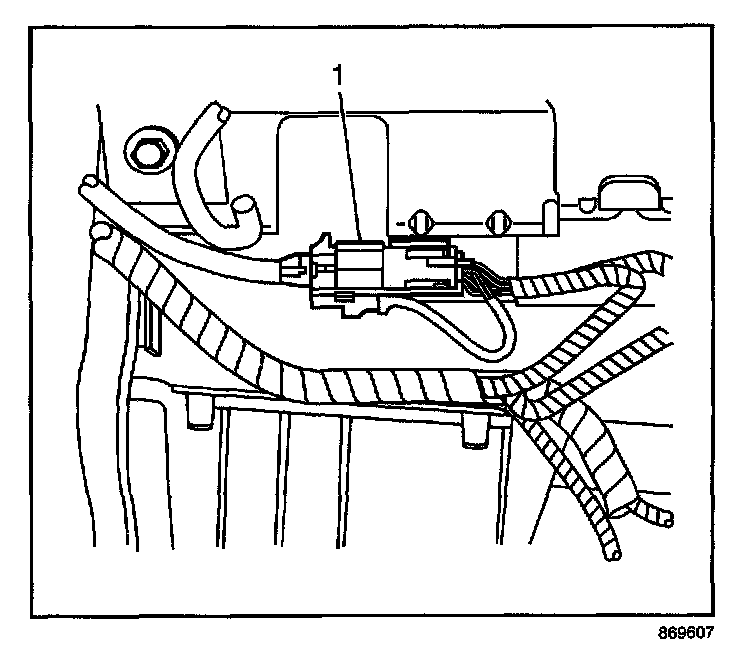

7. Disconnect the IP module yellow 4-way connector (1) located behind the IP support.

ENABLING PROCEDURE




1. Remove the key from the ignition.

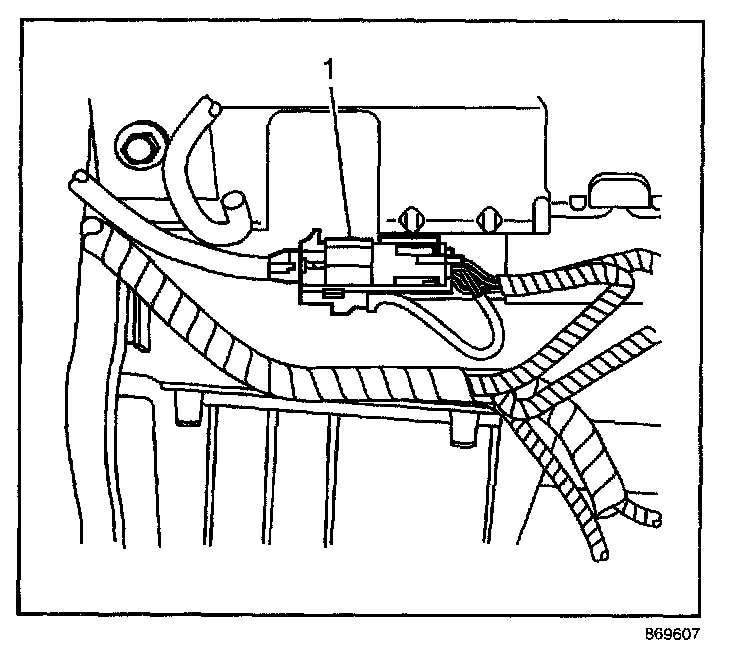

2. Connect the IP module yellow 4-way connector (1) located behind the main IP support.
3. Install the CPA to the IP module yellow 4-way connector (1) located behind the IP support.

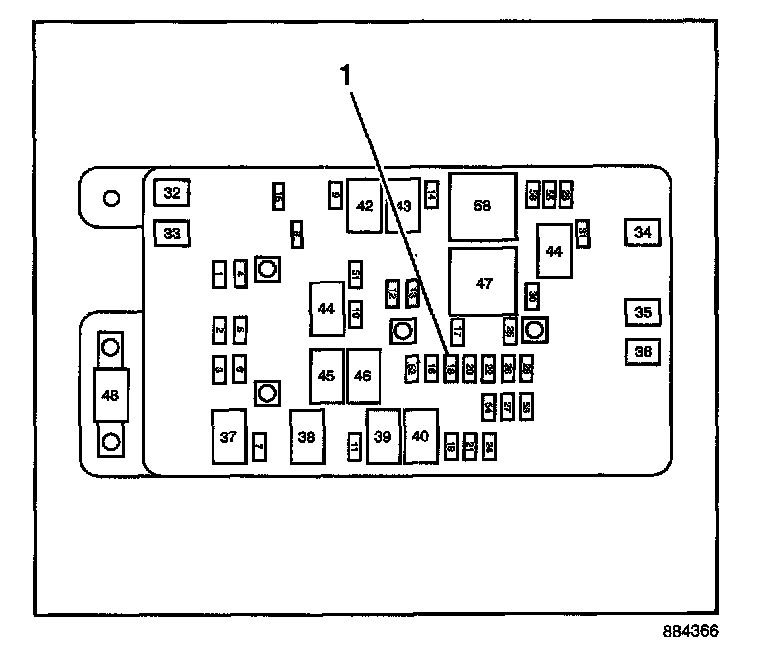

4. Install the SIR fuse to the fuse block (1) located in the underhood fuse block.
5. Staying well away from all air bags, turn ON the ignition, with the engine OFF.
5.1. The AIR BAG indicator will flash 7 times.
5.2. The AIR BAG indicator will then turn OFF.
6. Perform the Diagnostic System Check - Restraint Systems if the AIR BAG indicator does not operate as described.
