Replacement - Floor, RH

AIR OUTLET DUCT REPLACEMENT - FLOOR, RH

REMOVAL PROCEDURE







1. Remove the HVAC module assembly.

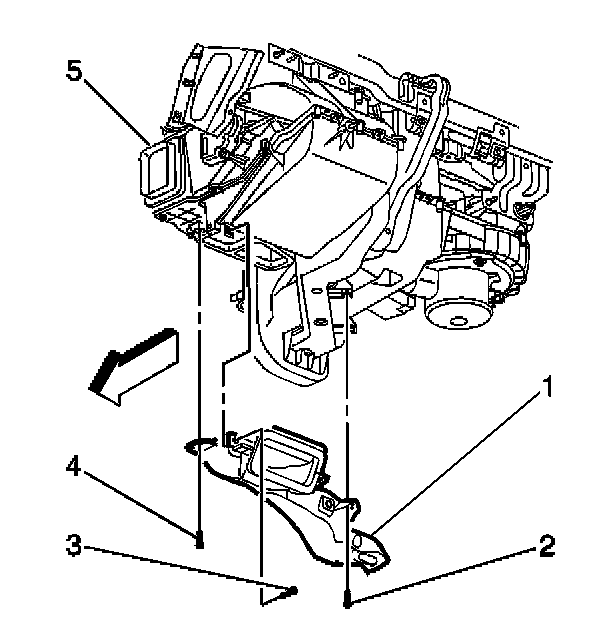

2. Remove the floor air outlet duct retaining screws (2,3,4).
3. Remove the RH side floor air outlet duct (1).



INSTALLATION PROCEDURE

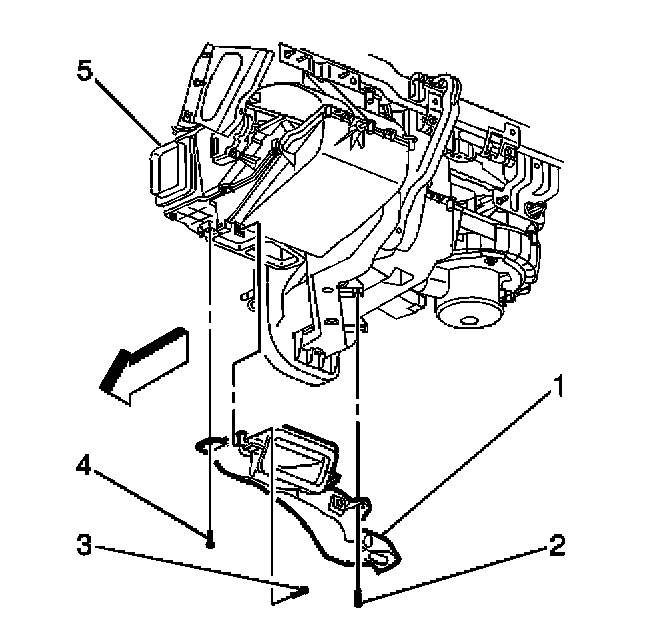

1. Install the floor air outlet duct (1) into position.
2. Install the floor air outlet duct retaining screws (2,3,4).

NOTE: Refer to Fastener Notice in Service Precautions.
Vehicle Damage Warnings

Tighten
Tighten the screws to .....1.9 N.m (17 lb in).

3. Install the HVAC module assembly.
