Replacement - Floor, LH

AIR OUTLET DUCT REPLACEMENT - FLOOR, LH

REMOVAL PROCEDURE







1. Remove the LH lower closeout/insulator panel.

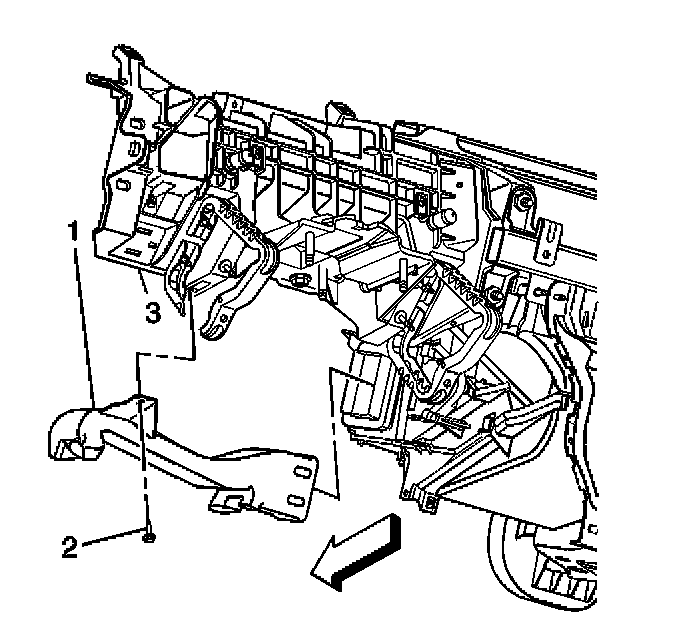

2. Remove the push pin (2) retaining the floor air outlet duct (1) to the heater module.
3. Remove the floor duct (1).


INSTALLATION PROCEDURE







1. Install the floor air outlet duct (1) into position.
2. Install the floor air outlet duct retaining push pin (2).

NOTE: Refer to Fastener Notice in Service Precautions.
Vehicle Damage Warnings

Tighten
Tighten the screws to .....1.9 N.m (17 lb in).

3. Install the LH lower closeout/insulator panel.
