Chevy Truck
>>
2004
>>
TrailBlazer 2WD L6-4.2L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>

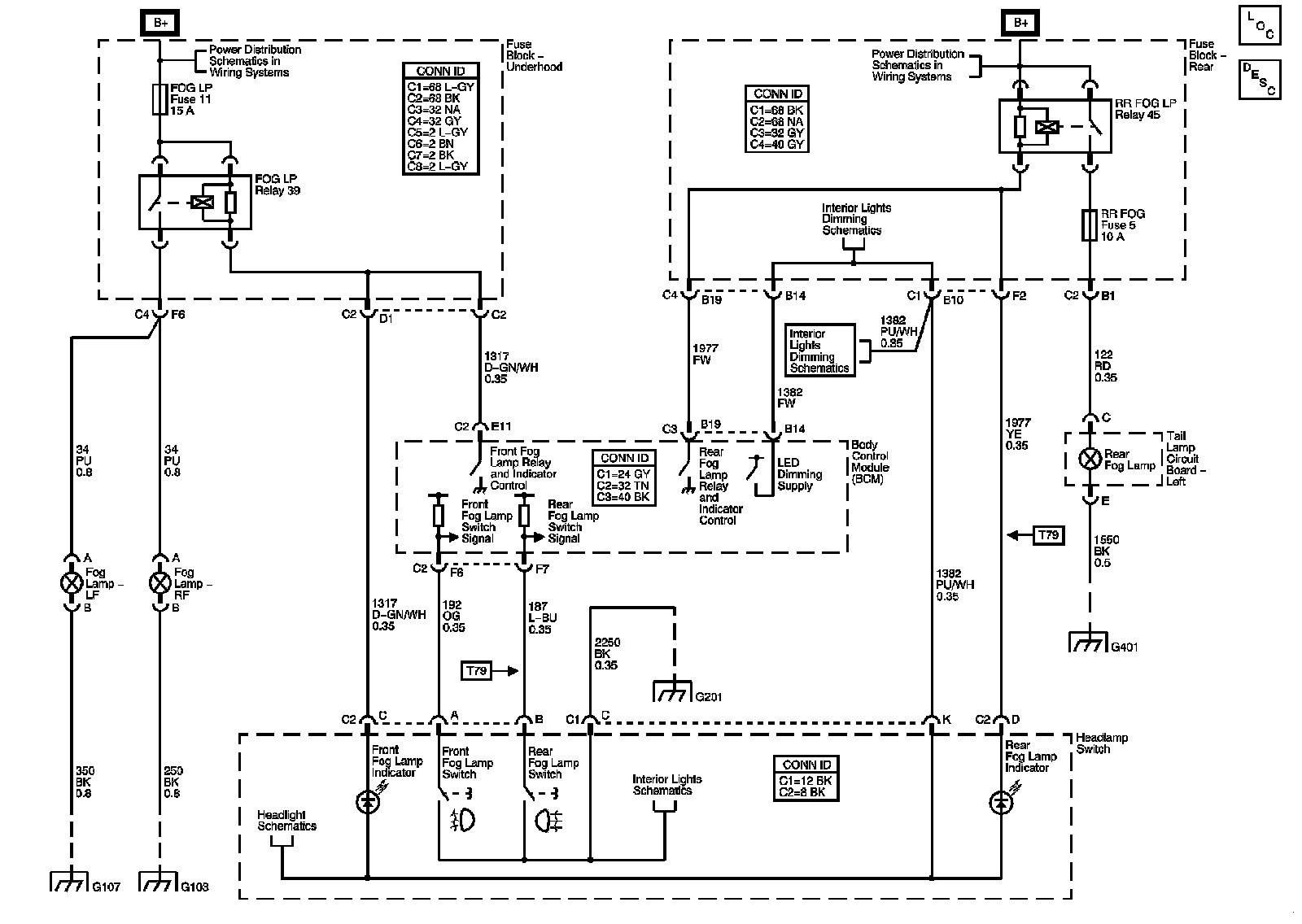

Fog Lights Schematics
Fog Lights Schematics
Fog Lights Schematics
