Chevy Truck
>>
2004
>>
TrailBlazer 2WD L6-4.2L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
ABS Diagrams (EBCM Power, Ground, Serial Data, Indictor, and Signal Circuits)
ABS Diagrams (EBCM Power, Ground, Serial Data, Indictor, and Signal Circuits)

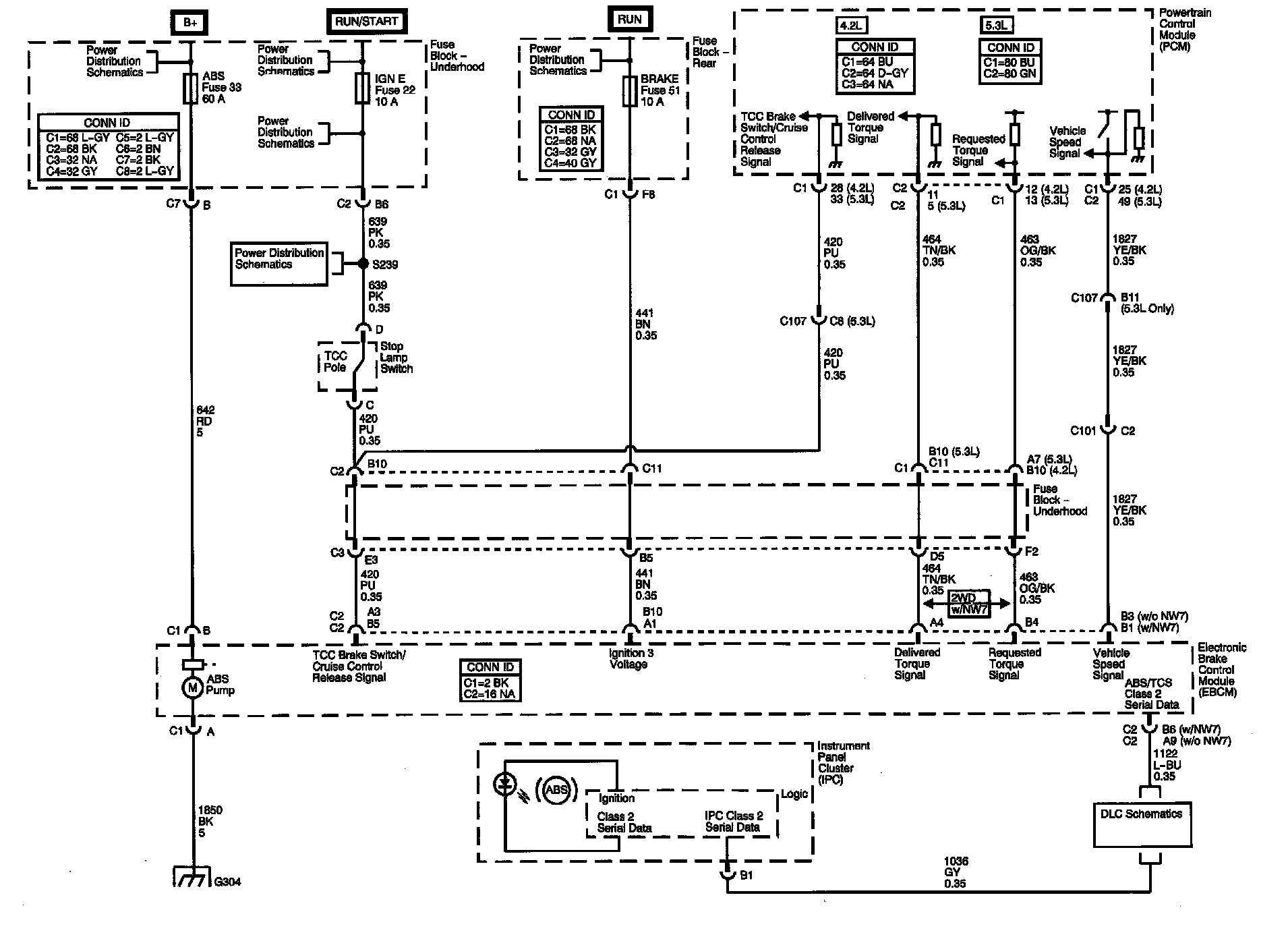

ABS Diagrams (EBCM Power, Ground, Serial Data, Indictor, and Signal Circuits):
