TrailBlazer 2WD L6-4.2L VIN S
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Hydraulic System
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Hydraulic Brake System Diagnosis
Hydraulic Brake System Diagnosis

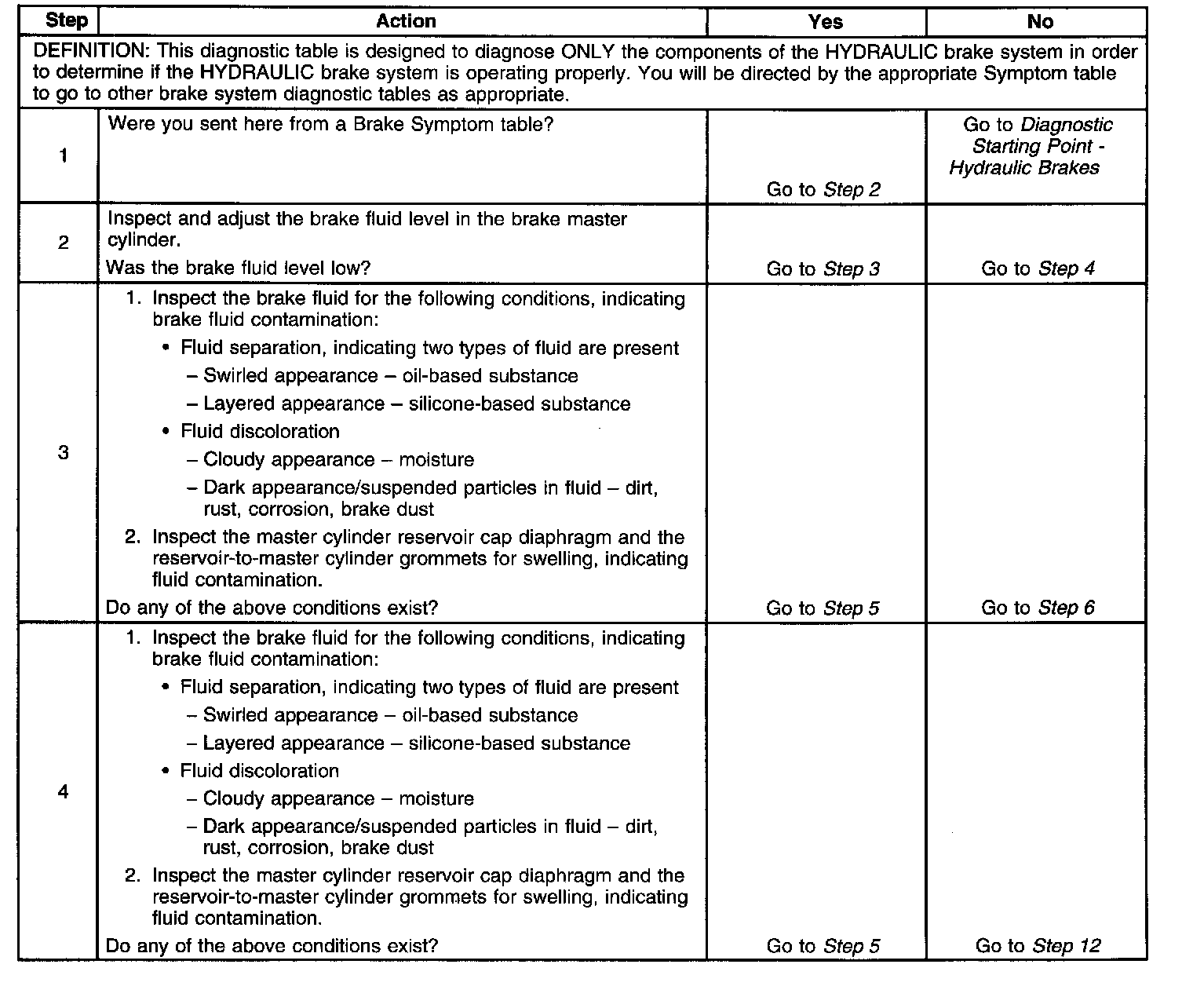

Steps 1-4:

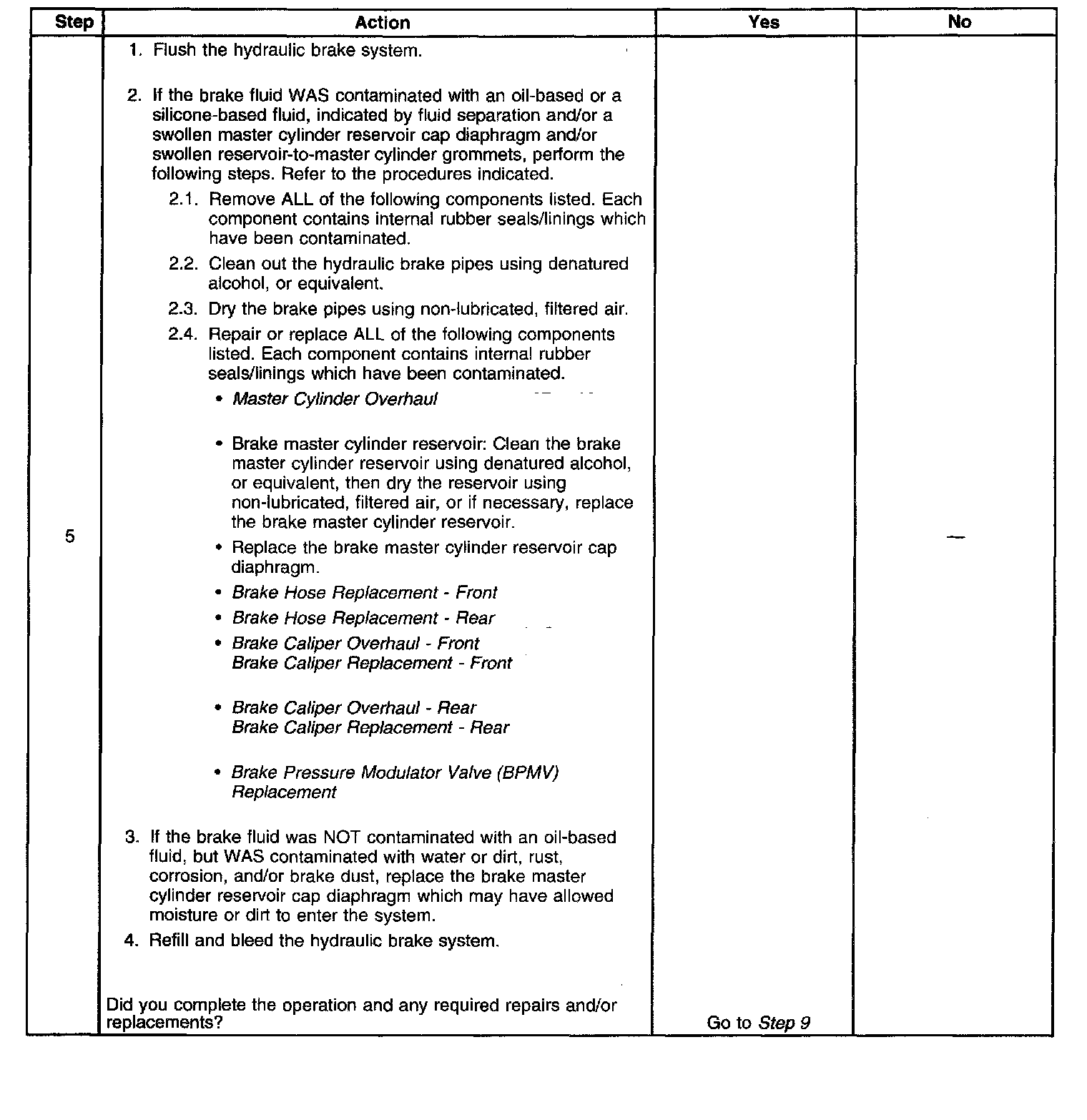

Step 5:

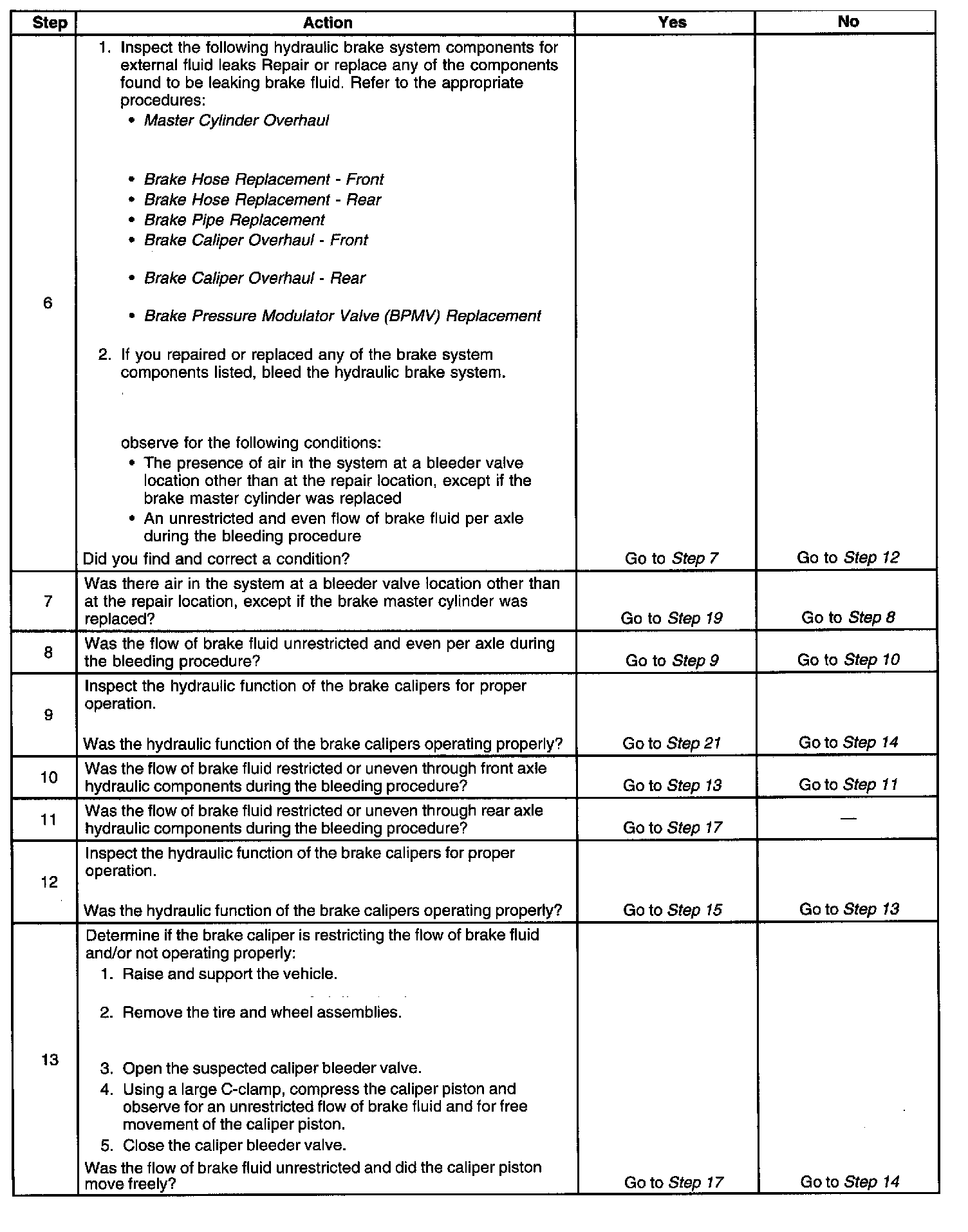

Steps 6-13:
Steps 14-21:
