Frame Brace Replacement (Trailblazer EXT, Envoy XL)

Frame Brace Replacement (TrailBlazer EXT, Envoy XL)

Removal Procedure




1. Raise and support the vehicle. Refer to Vehicle Lifting.

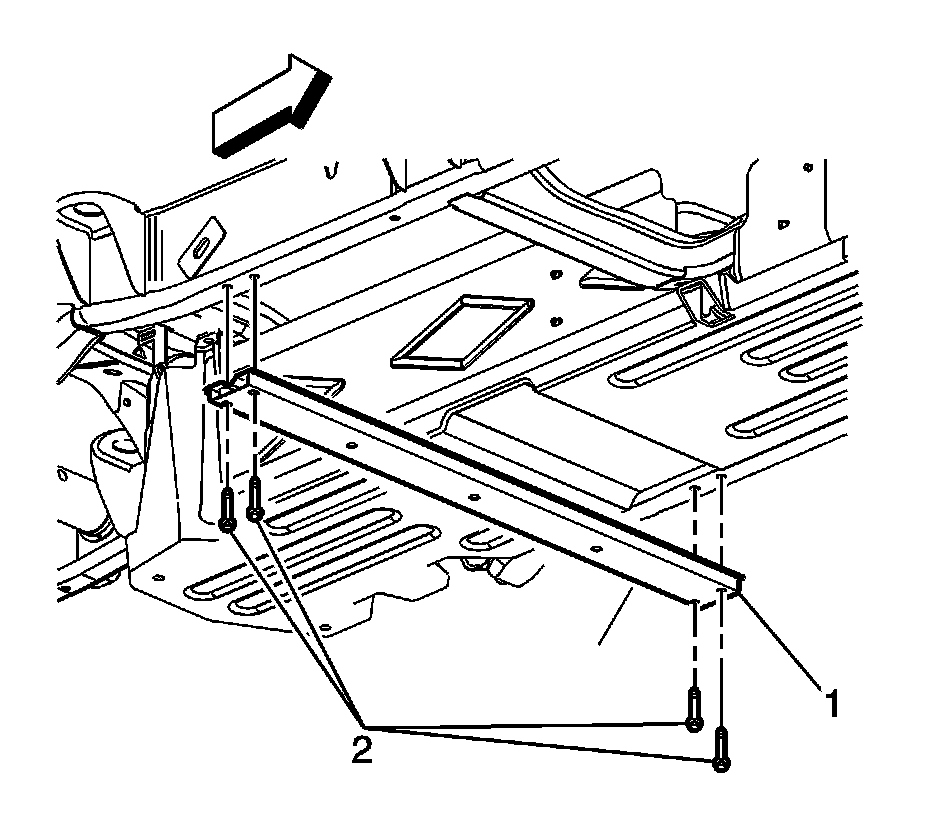

2. Remove the mounting bolts (2) from the frame brace (1).
3. Remove the frame brace (1) from the frame.

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.




1. Install the frame brace (1) to the frame using the mounting bolts (2).

Tighten the bolts to 50 N.m (37 lb ft).

2. Lower the vehicle.
