DVD Player: Description and Operation

DVD PLAYER

DVD Player:

The DVD player and the video display screen are located in the overhead console. The DVD player can be controlled by both the buttons on the DVD player and by the buttons on the remote control. The DVD player power may be turned on when the ignition is in the run, accessory, or retained accessory power (RAP) power modes. DVDs are manufactured with different region codes based on the country in which they are sold. Therefore, the RSE system DVD player is only compatible with the region code where the vehicle is sold. The DVD region code is printed on the jacket of most DVDs. The DVD player will also play audio CDs. Home recorded CDs, CD-R or CD-RW formats, will not play in this DVD player.

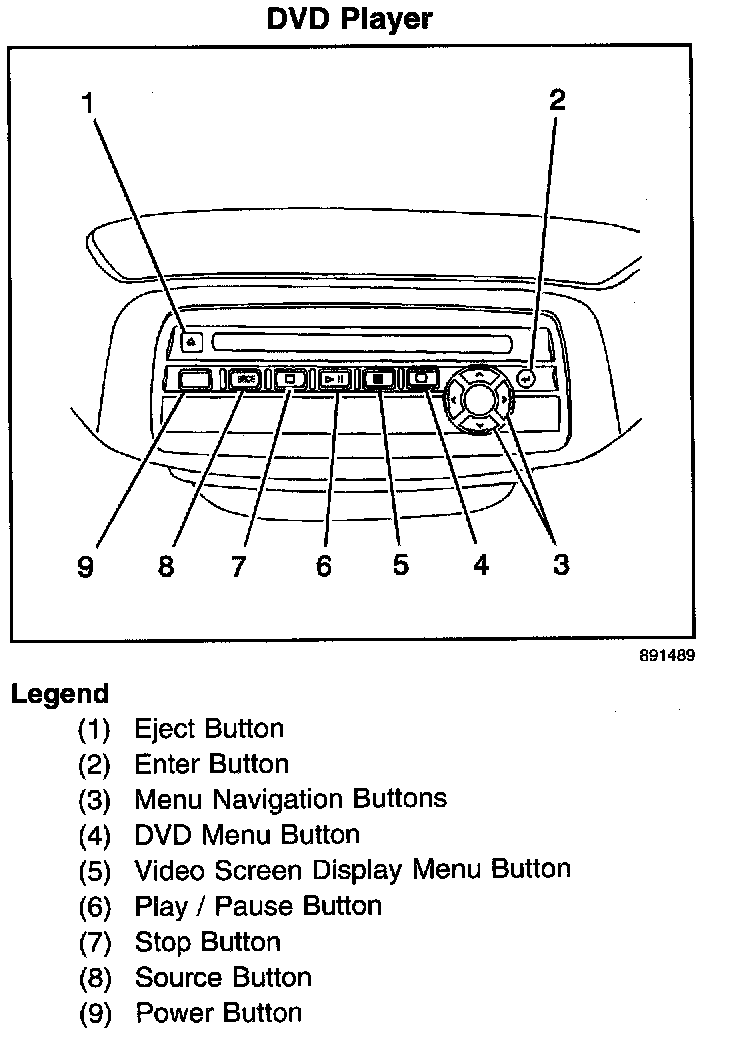

DVD PLAYER BUTTONS
The following buttons operate the DVD player.

Eject: Press this button to eject the DVD or CD media.

Enter: Press this button to select items within a menu.

Menu Navigation: Use the arrow keys to navigate through a menu. The up arrow will skip to the next chapter or track; the down arrow acts as a previous chapter or track access key; the right arrow acts as fast forward, and the left arrow acts as rewind.

Menu: Press this button to access the DVD menu. This button does not operate with media other than DVD.

Display Menu: Press this button to modity the video screen display characteristics.

Play I Pause: Press this button to turn the DVD player on to play media, pause media, and to toggle between play and pause of media.

Stop: Press this button to stop play of media in the DVD player.

Source: Press this button to toggle between DVD player and auxiliary source.

Power: Press this button to turn the RSE system power On or Off.

PLAYING A DISC
To play a disc, gently insert the disc with the label side up, into the loading slot. The DVD player will continue to load the disc and the player will automatically start if the vehicle ignition is in an enabled power mode. If a disc is already in the player, press the play/pause button on the face of the DVD player or on the remote control. Some DVDs will not allow the user to fast forward or skip the copyright or previews. Some DVDs will automatically begin to play after the previews have finished. If the DVD does not begin to play the main title, refer to the on-screen instructions, and press play on the DVD player buttons or on the remote control.

STOPPING AND RESUMING PLAY
To stop a disc, press and release the stop/eject button on the DVD player or the remote control. To resume playback, press the play/pause button on the DVD player or the remote control. The movie should resume play from where it was stopped. If the disc has been ejected, or if the stop button has been pressed 2 times, the disc will resume play at the beginning of the main title.

EJECTING THE DISC
Press the eject button on the DVD player to eject the disc.

If a disc is ejected from the DVD player but is not removed, the DVD player will reload the disc within 25 to 30 seconds. The disc will then be stored in the DVD player. The DVD player will not resume play of this disc automatically upon its reload.

DVD MESSAGES
The following errors may be displayed on the video screen monitor.

Disc Format Error: This message will be displayed if a disc is inserted upside down, the disc is not able to be read, or if the disc format is not compatible with the DVD player.

Load / Eject Error: This message will be displayed if the disc is not able to properly load or eject.

Disc Play Error: This message will be displayed if the DVD player cannot play the disc. Severely damaged discs will cause this error.

Region Code Error: This message will be displayed if the region code of the DVD media is not compatible with the DVD player.

No Disc: This message will be displayed if the play button is pressed and there is no disc in the DVD player.
