Home >> Chevy Truck >> 2004 >> Tracker 2WD L4-2.0L VIN C >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Ash Tray Lamp >> Diagrams

Ash Tray Lamp: Diagrams

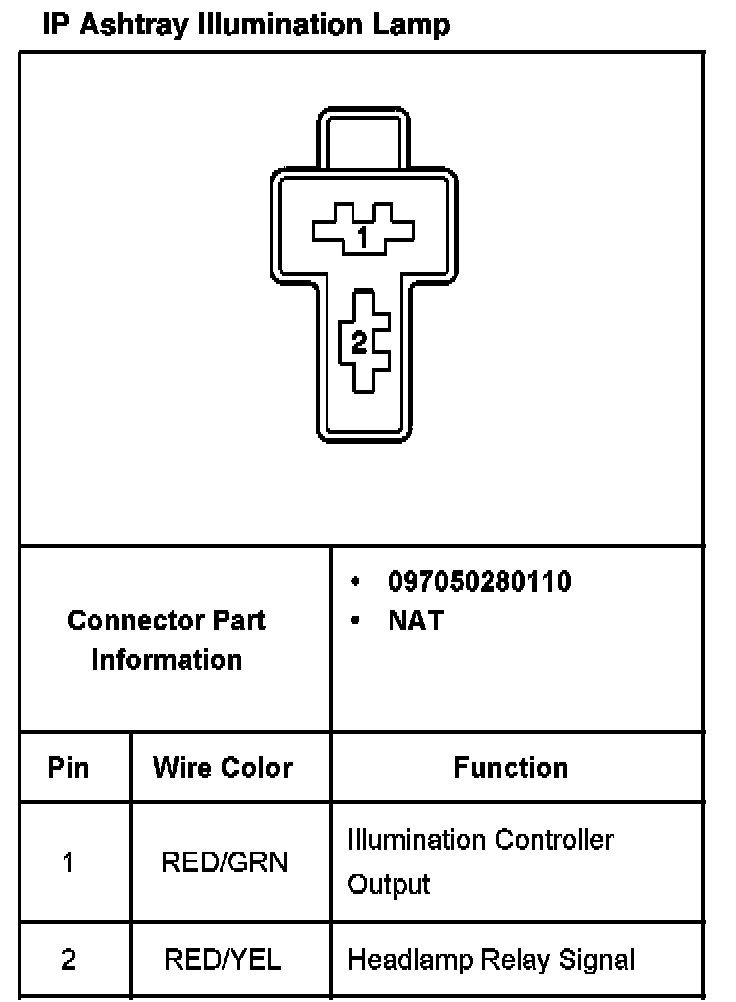

IP Ashtray Illumination Lamp:
