Instrument Panel, Gauges and Warning Indicators: Diagrams

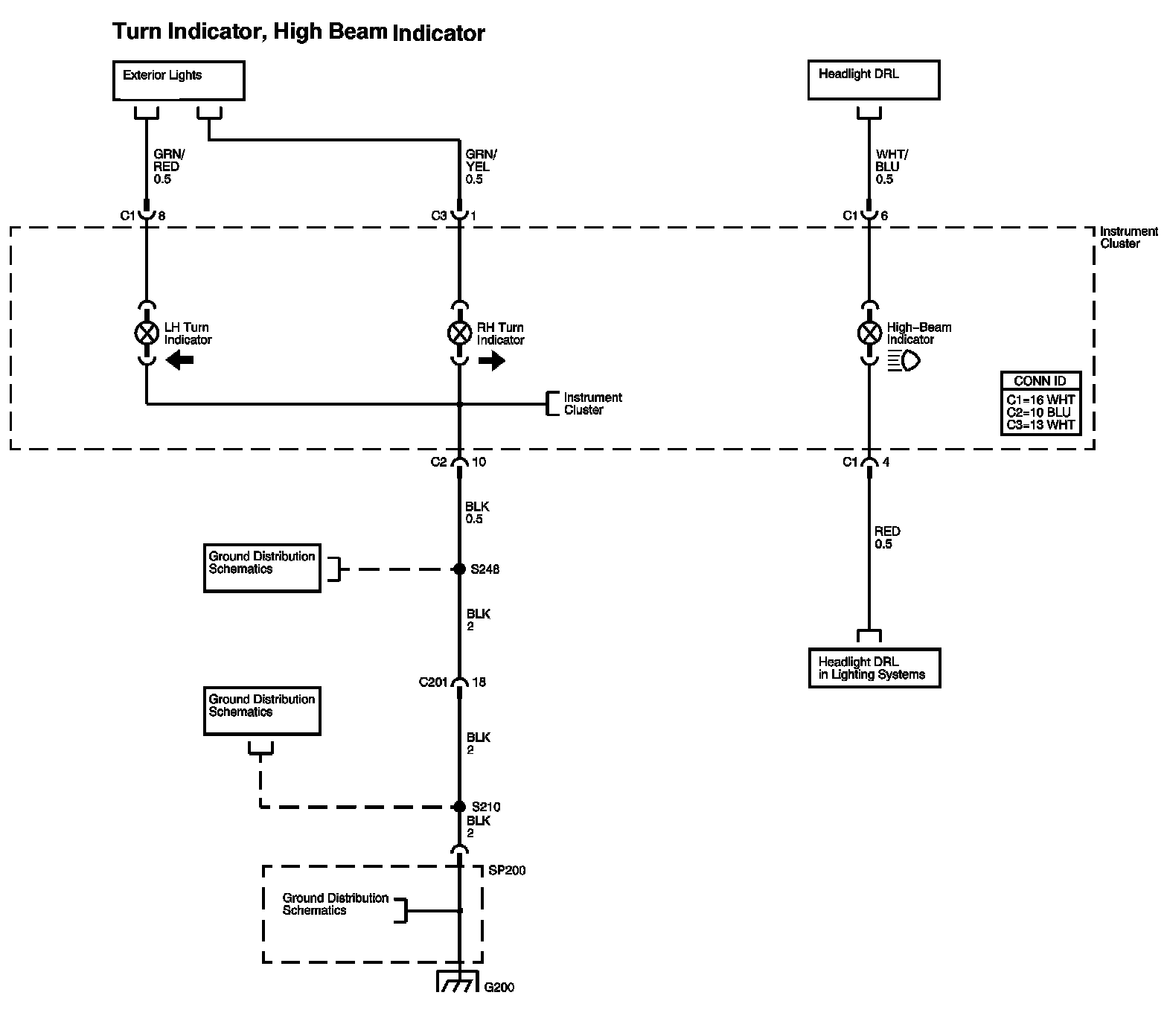

Instrument Cluster Diagram 1:

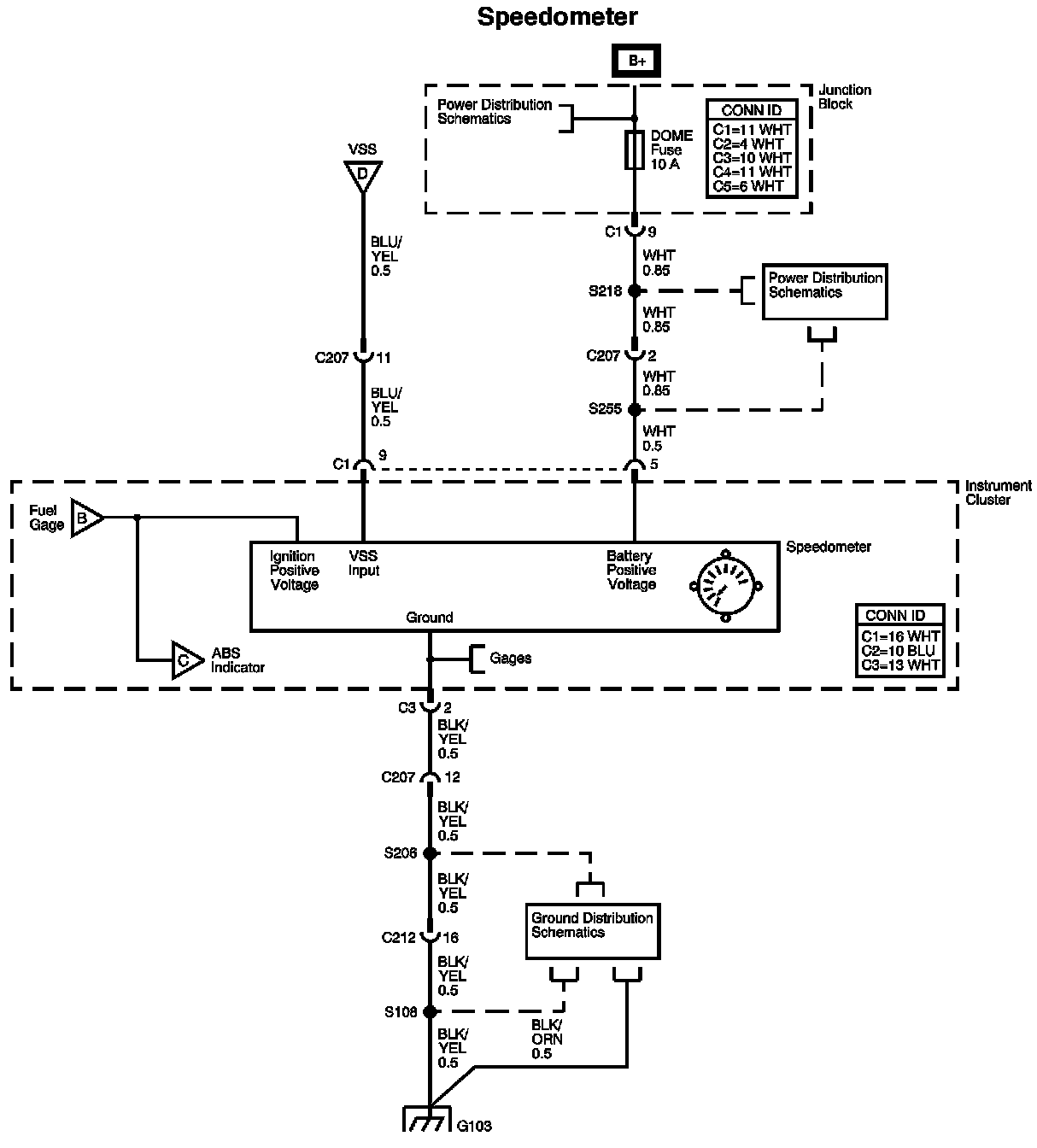

Instrument Cluster Diagram 2:

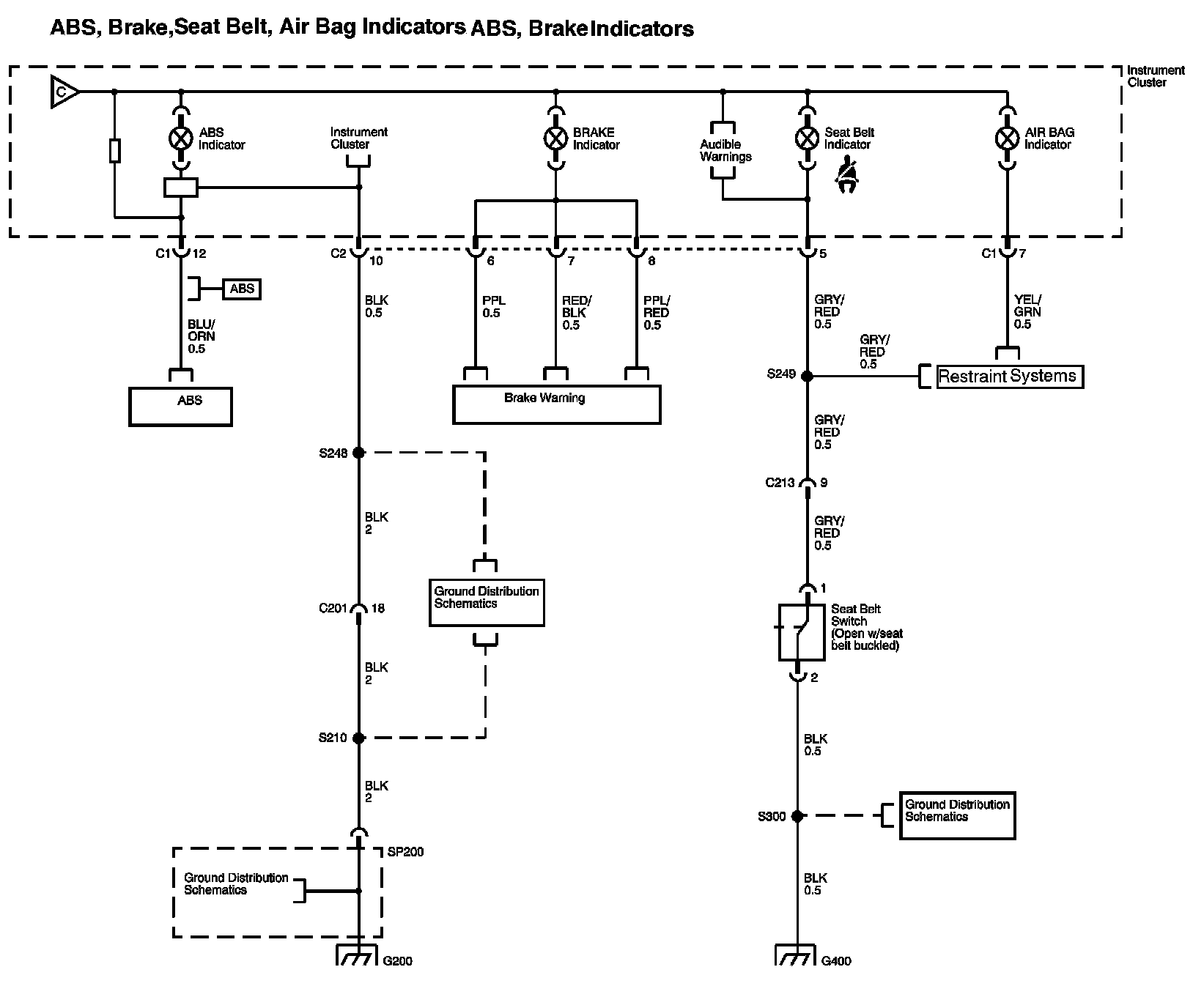

Instrument Cluster Diagram 3:

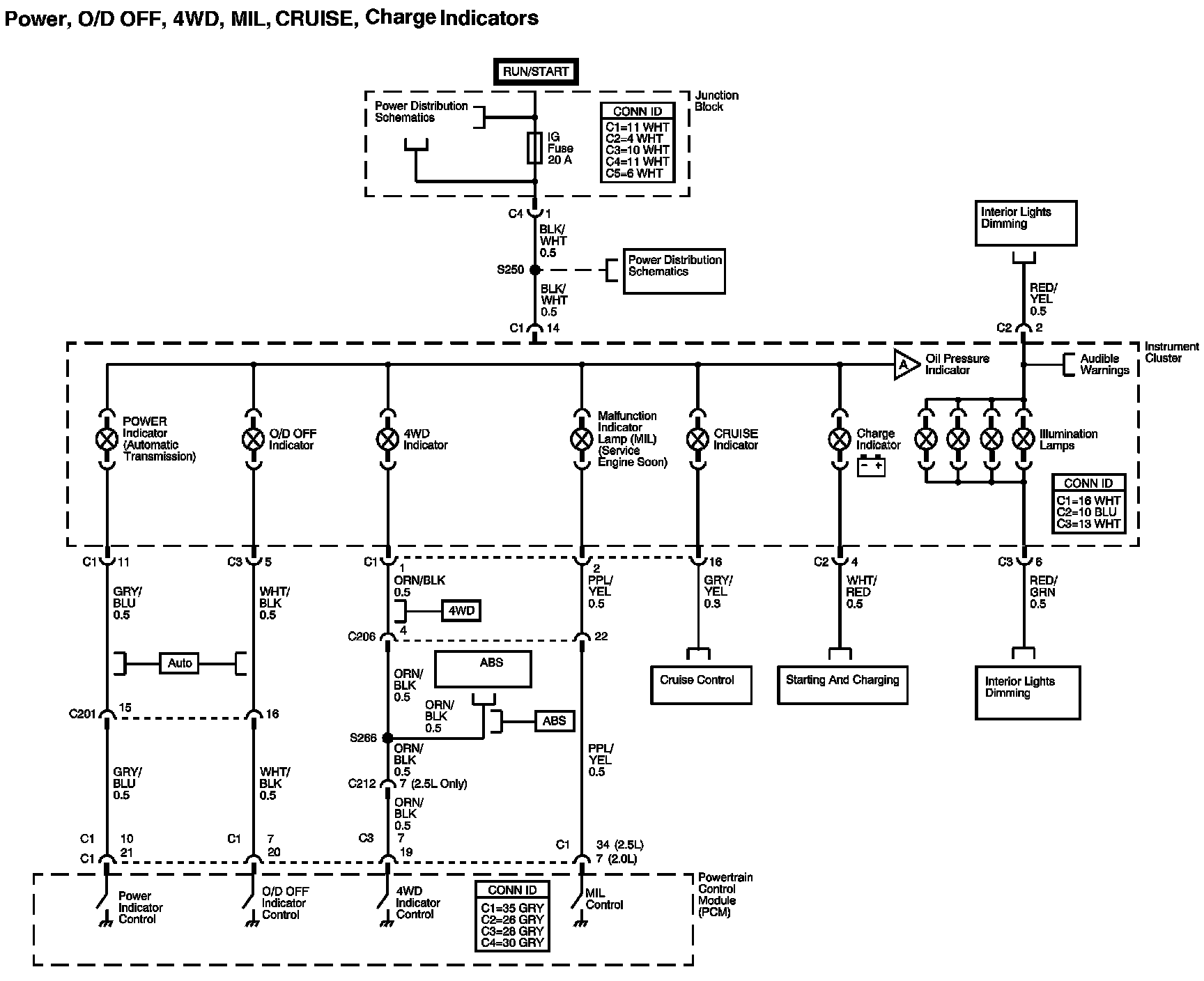

Instrument Cluster Diagram 4:

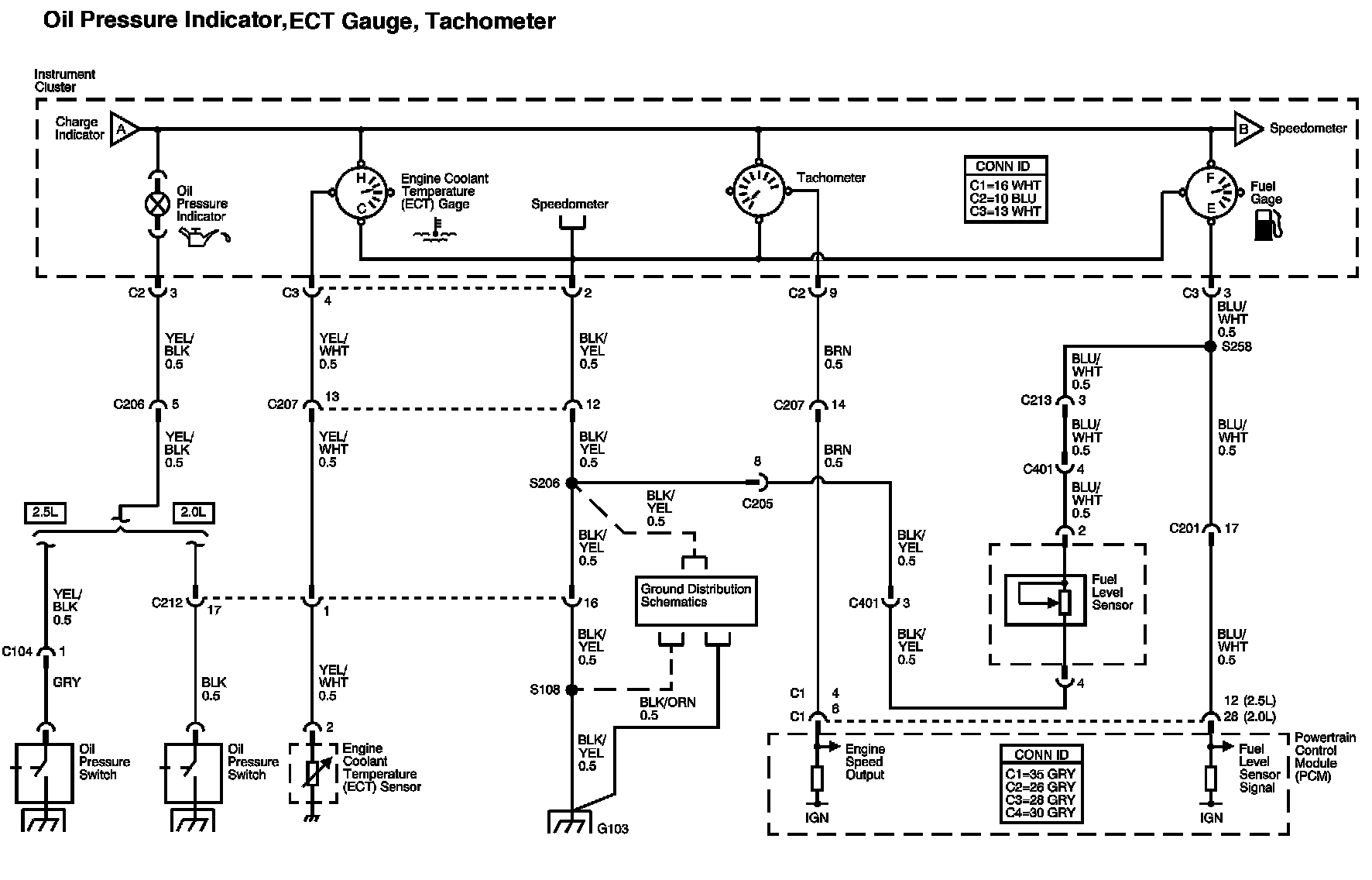

Instrument Cluster Diagram 5:




Instrument Cluster Diagram 6:
