Home
>>
Chevy Truck
>>
2004
>>
Tracker 2WD L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C201 - C218
>>
C211
C211

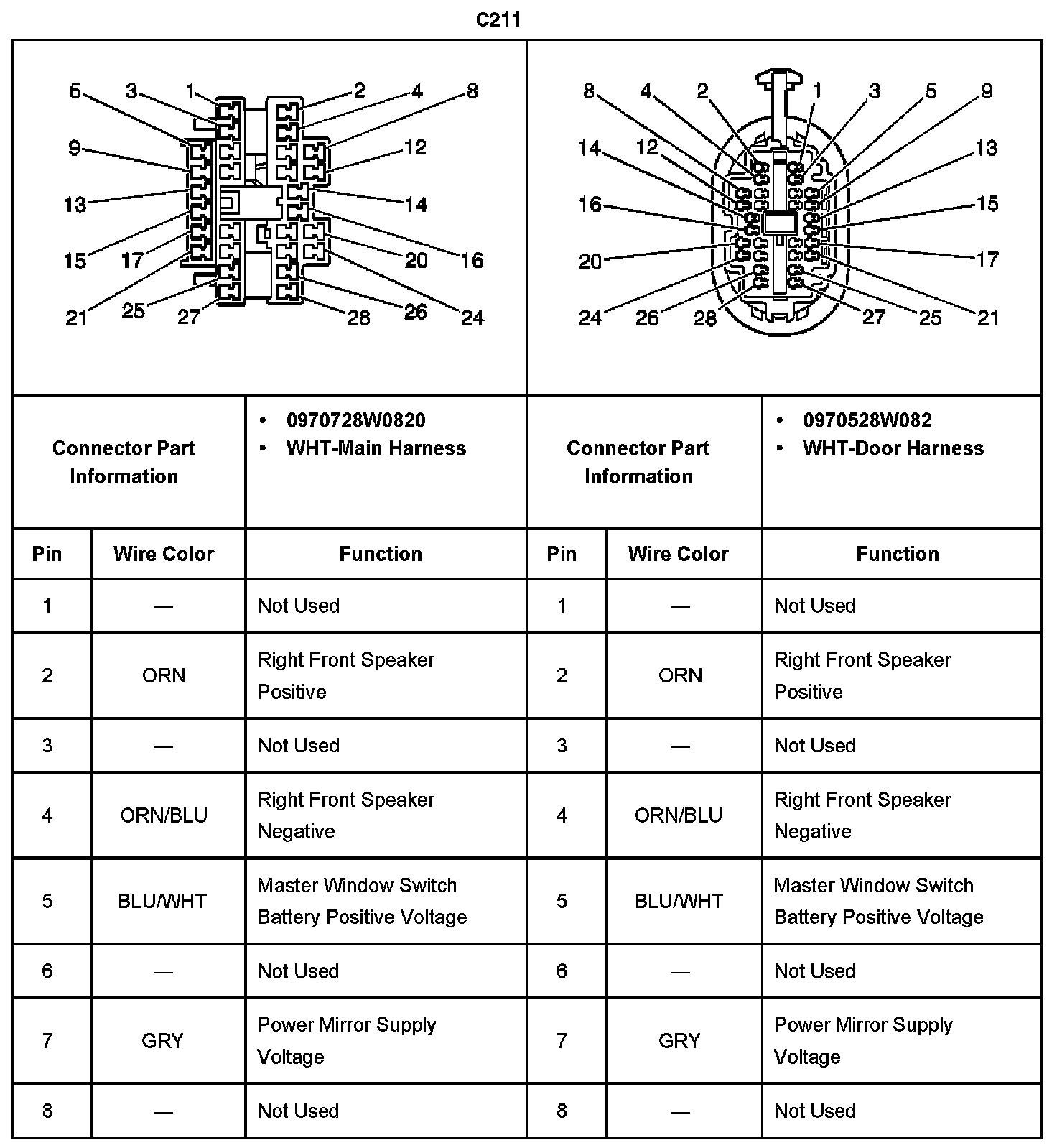

C211 Part 1:

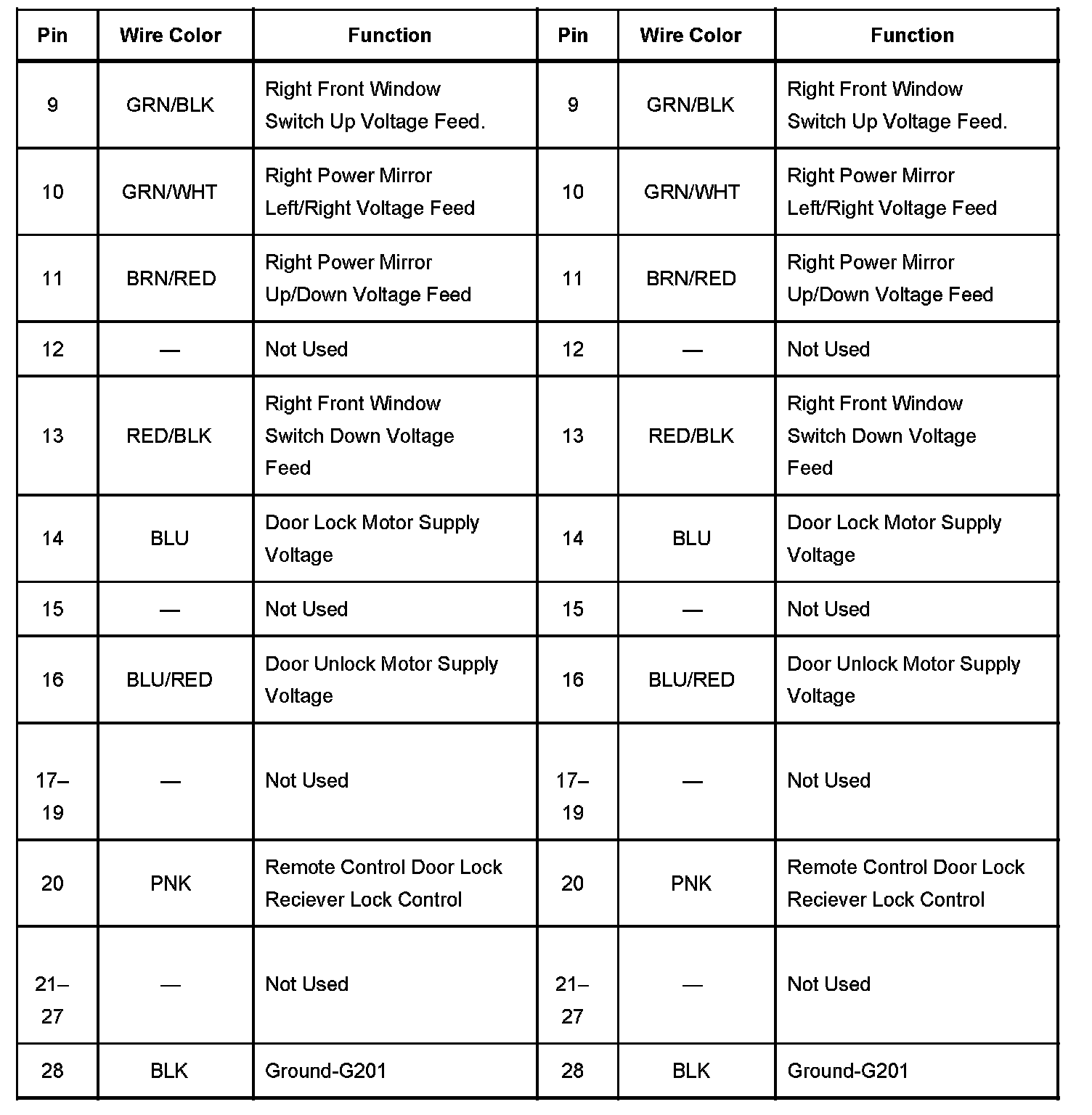

C211 Part 2:
