Home >> Chevy Truck >> 2004 >> Tahoe 4WD V8-4.8L VIN V >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Knock Sensor >> Diagrams

Knock Sensor: Diagrams

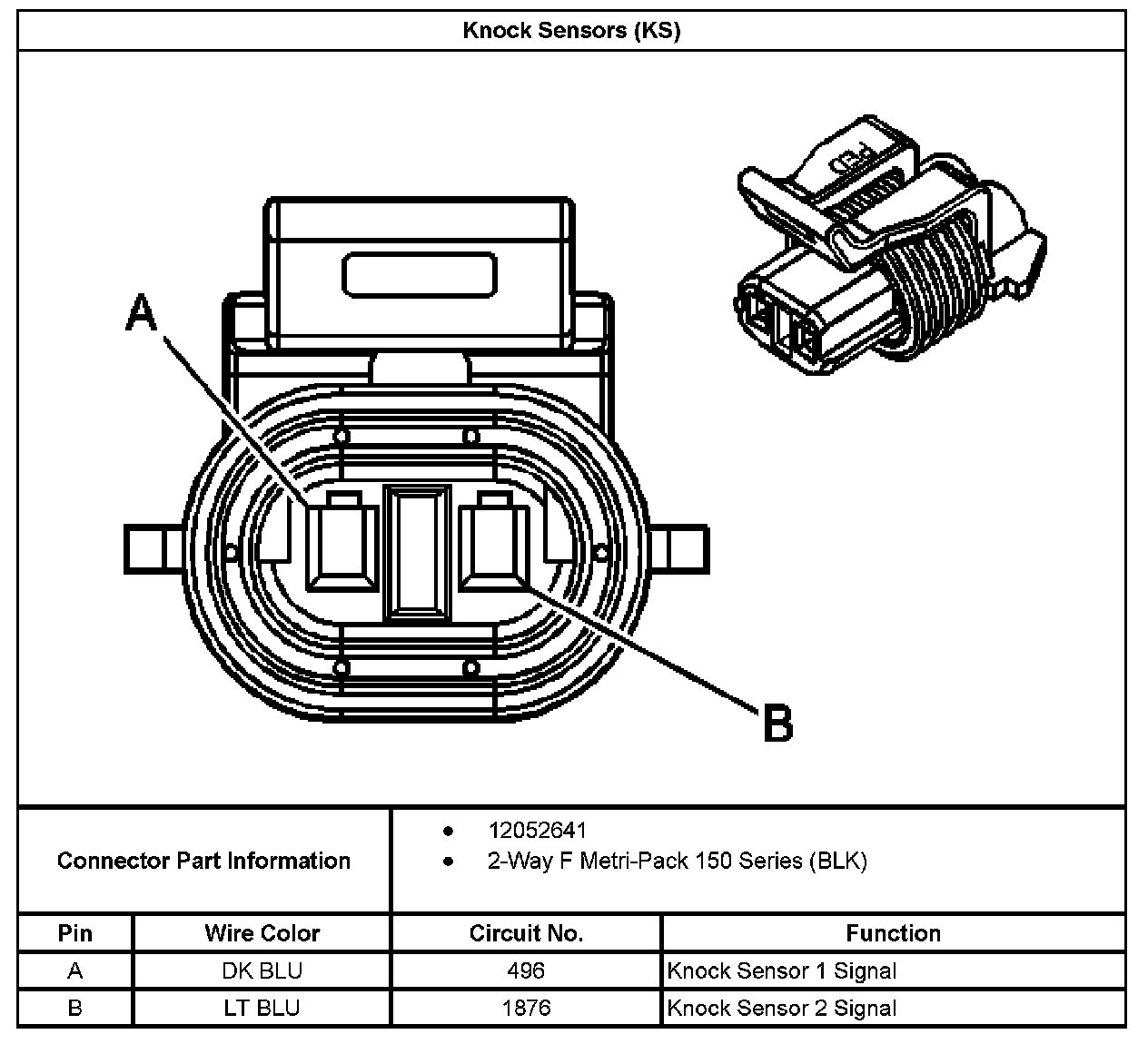

Knock Sensors (KS):
