Forward Servo Replacement

Forward Servo Replacement

Removal Procedure





1. Remove the transmission filter.
2. Remove the forward servo cover bolts, cover, and gasket.

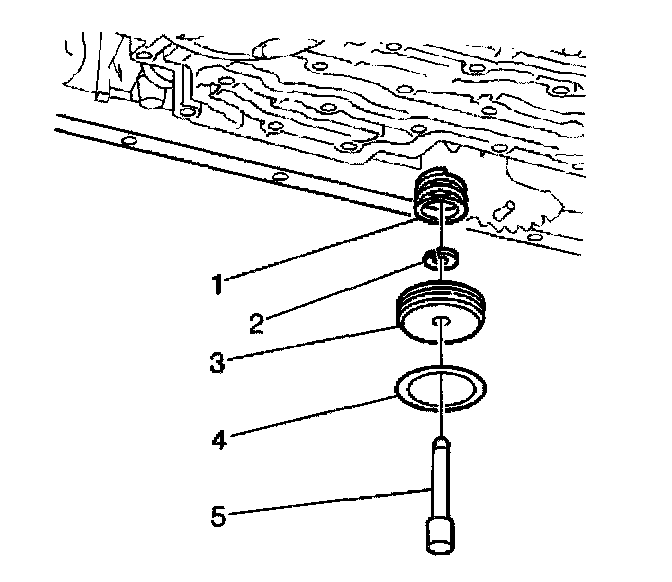

3. Remove the following parts:
3.1. Forward servo piston pin (5)
3.2. O-ring seal (4)
3.3. Servo piston (3)
3.4. Retainer (2)
3.5. Piston spring (1)

Installation Procedure

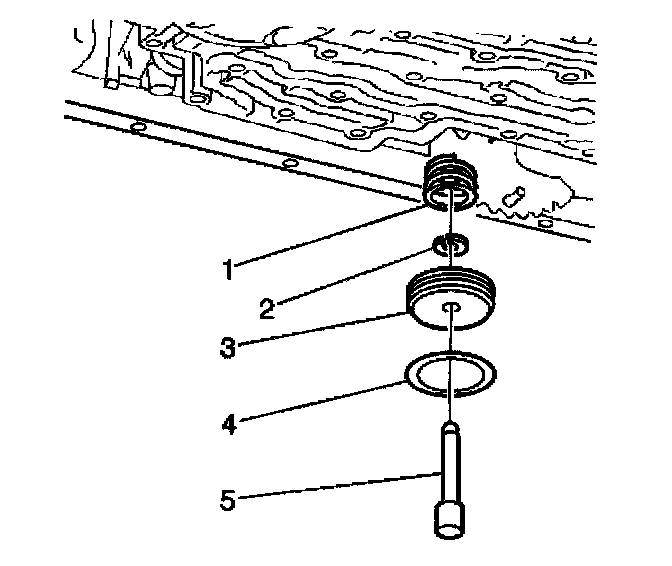

1. Install the following parts:
^ Piston spring (1)
^ Retainer (2)
^ Servo piston (3)
^ O-ring seal (4)
^ Forward servo piston pin (5)

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the forward servo gasket, cover. and bolts.
^ Tighten the bolts to 24 Nm (18 ft. lbs.).
3. Install the transmission filter.
