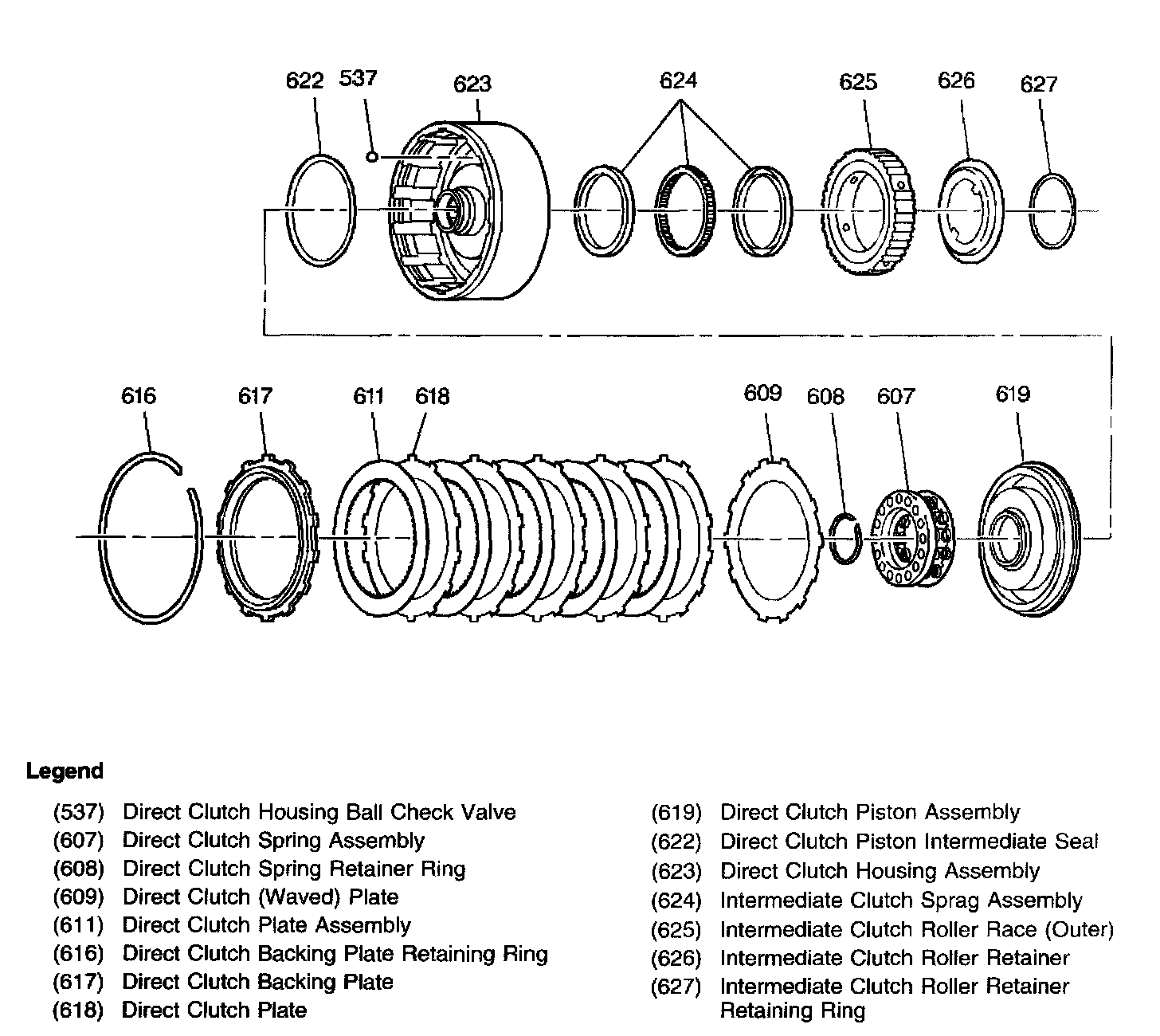

Direct Clutch and Intermediate Sprag Assembly
Disassembled Views
Direct Clutch and Intermediate Sprag Assembly
