Chevy Truck
>>
2004
>>
Suburban 1/2 Ton 4WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Pedal Positioning System
Pedal Positioning System

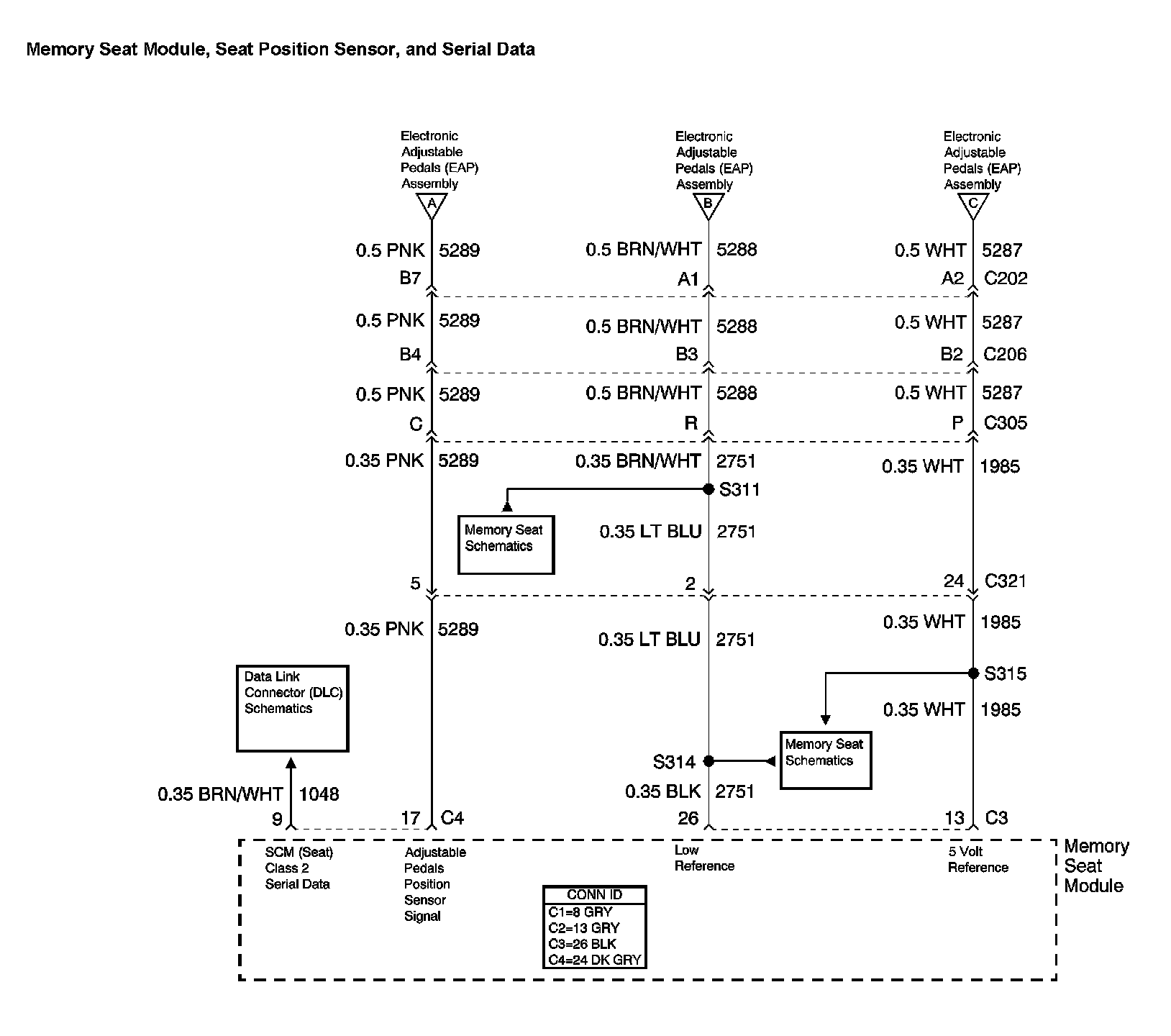

Adjustable Pedals Diagram 1:

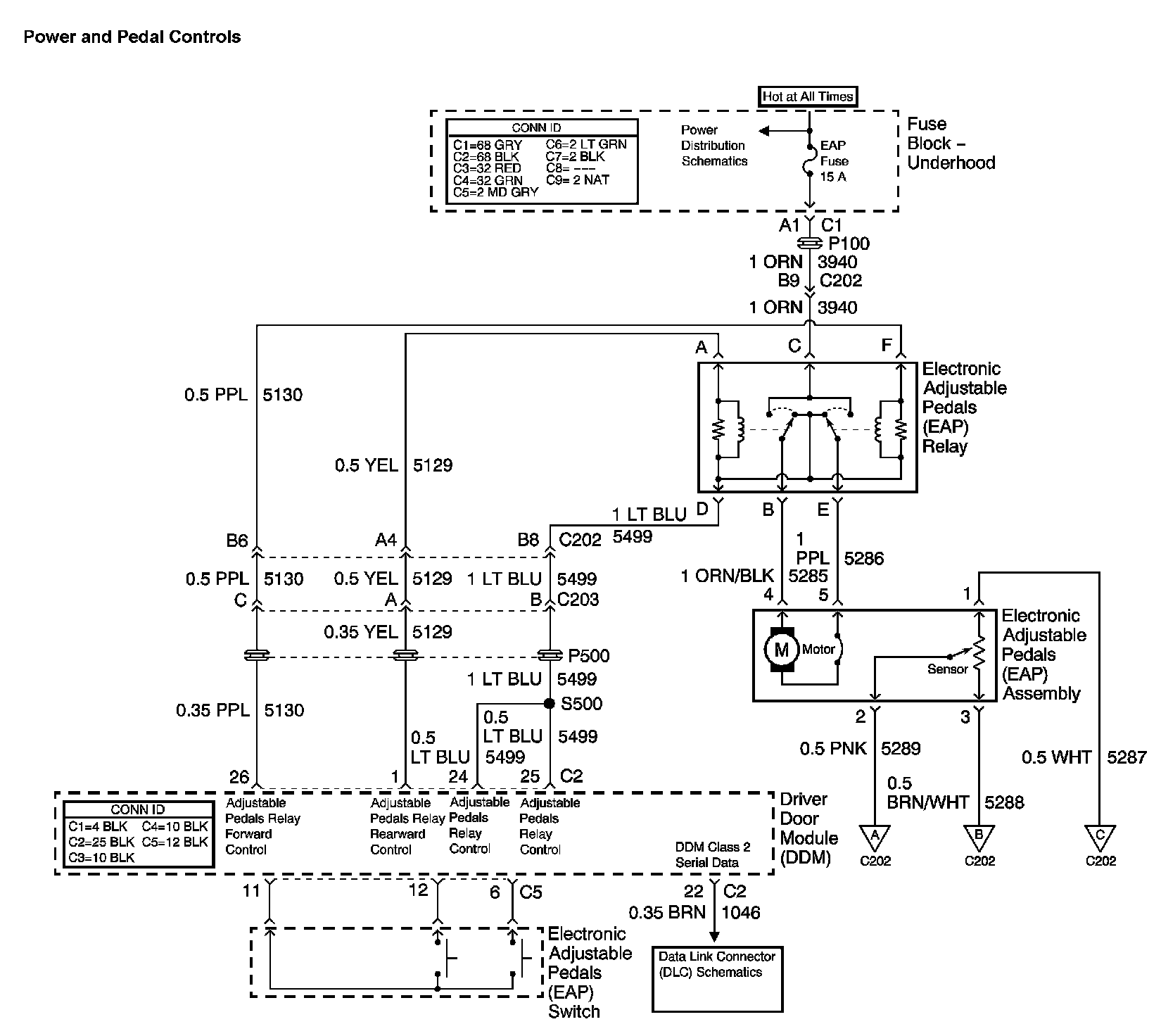

Adjustable Pedals Diagram 2:
